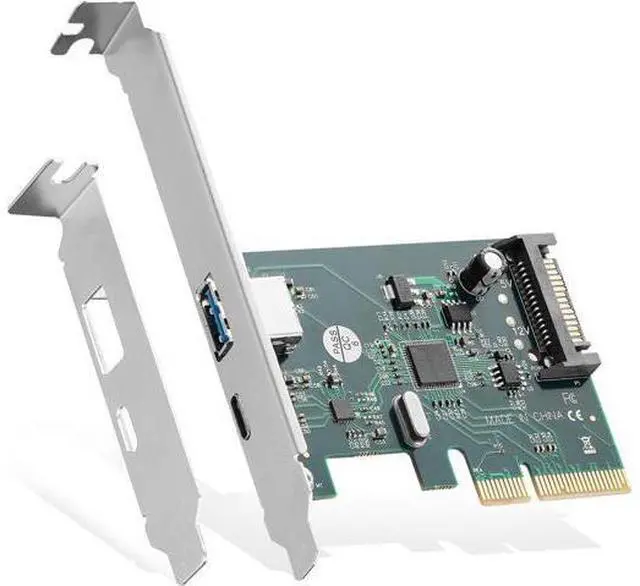

WISDUM PCIE to USB 3.2 Gen2 10Gbps Expansion Card, 2 Port USB Type-A and Type-C Ports, Self-Powered, Low Profile Bracket, USB3.2 Hub Controller Adapter for Windows 10/11

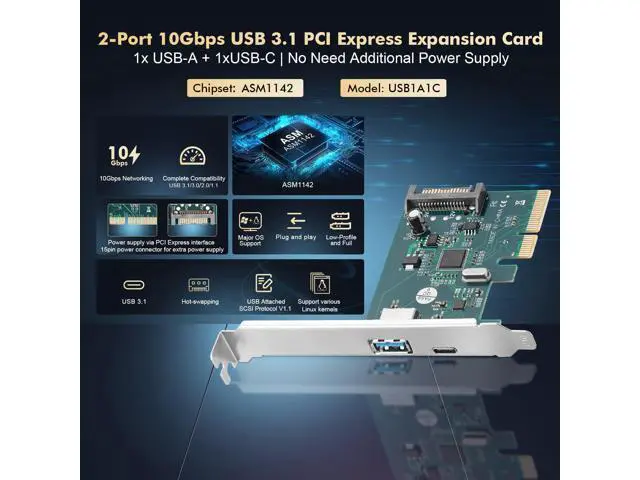

PCI-E ASM1142 1xType-C+ 1xType-A is a universal serial bus USB 3.1 host controller of ASMedia, which complies with the for Scalable Thermal Controller Interface Specification Revision 1.1. It bridges the PCI Express interface to the two ports of USB 3.1. Up to 10Gbps high-speed bandwidth, backward compatible with older USB functions and devices. It can configure PCI Express as Gen 2x2 or Gen 3x1, conform to the USB Attach SCSI protocol revision 1.0, and support the debugport function.
Key Features:

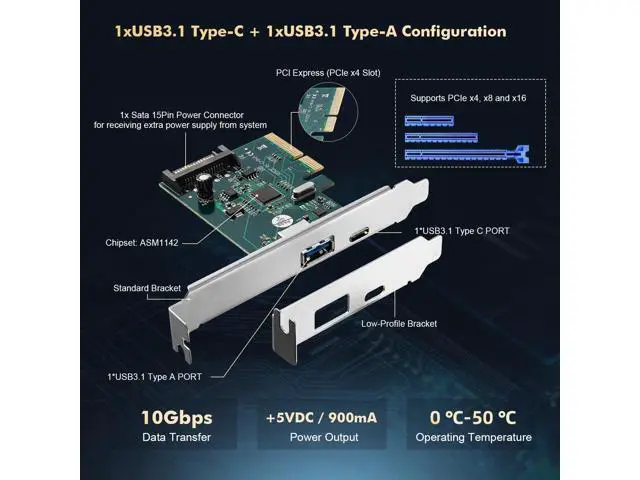

Chipset: ASM1142 PCI Express Base Specification Revision 2.0 dual-lane (x2) Compliant with Universal Serial Bus 3.1 specification Gen2 Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1. Compliant with PCI Bus Power management interface Specification Revision 1.2 Compliant with USB Attached SCSI protocol Revision 1.1 Supports simultaneous operation of multiple USB 3.1, 3.0, USB 2.0 and USB 1.1 devices Supports USB data transfer rate of 10G/5G/480/12/ 1.5 Mbps. 1*USB 3.1 Type C PORT, 1*USB 3.1 Type A PORT Each USB port supplies maximum +5VDC / 900mA power output to USB device Built-in over current protection on each USB port Support device remote wakeup function from USB keyboard or mouse Built-in SATA-15pin power connector for receiving extra power supply from system Hot-swapping feature allows connect/disconnect device without powering down the system. Support Windows Server2003/Vista/7/8/ 8.1 /server2012 R2 x64 (32/64 bit) Hardware Installation 1. Turn Off the power to your computer. 2. Unplug the power cord and remove your computers cover. 3. Remove the slot bracket from an available PCIe X16 slot. 4. To install the card, carefully align the cards bus connector with the selected PCIe slot on the motherboard.

Push the board down firmly. 5. Replace the slot brackets holding screw to secure the card. 6. Replace the computer cover and reconnect the power cord. Complete PackageIncludes all you need for a perfect solution: 1 x PCI-E to 2 USB-ports, 1 x Low-Profile Bracket. 1 x CD Driver. Provide full life-cycle support.
