WISDUM PCIE X1 to SATA Card 4 Port, 6Gbps SATA 3.0 Controller, Includes 4 SATA Cables and Low Profile Bracket, for Windows 10/11
- 4 PortsThis sata card has 4 ports, supports sata 3.0 (6 Gbps) and is compatible with SATA I/II (1.5/3.0Gbps) for connecting 4 sata devices at the same time. Can be used as storage, and boot operating system/system hard drive

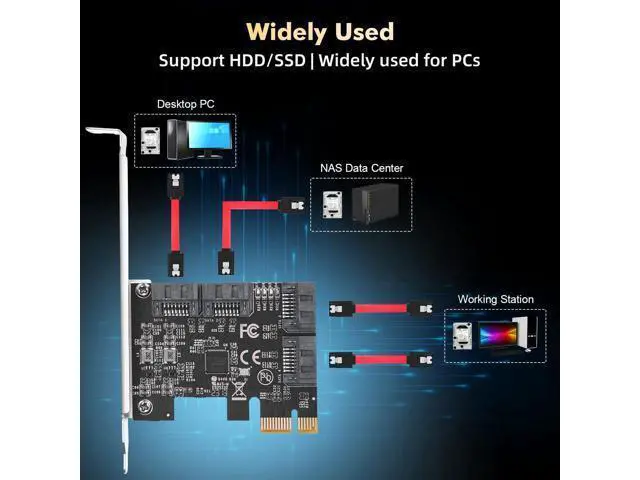

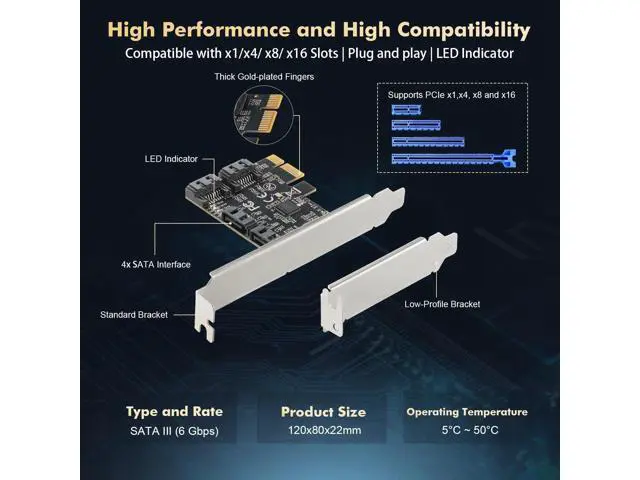

- PCIE X1Compatible for PCIe slot X1,X4,X8,X16, default with standard bracket, also include low profilce bracket, support multiple installation such as PC, server, workstation, NAS, etc.

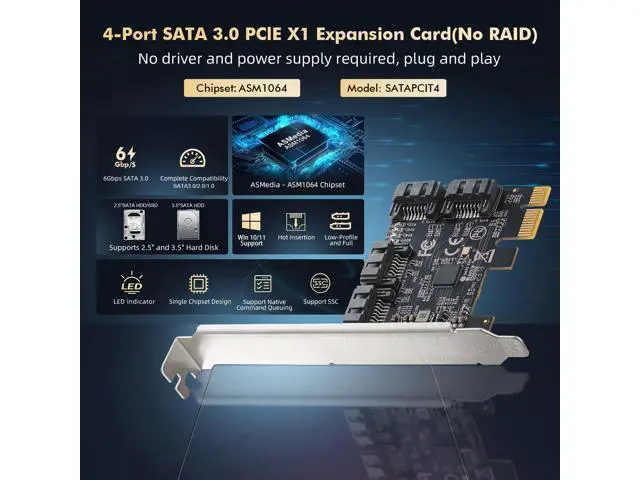

- Reliable ChipsetMaximize efficiency and stabilize performance with the ASMedia ASM1064 chipset. Experience reduced error rates, ensuring reliable operation.
- Easy UsedSupport Windows 10/11 OS system, drive-free installation, plug and play, SATA interface with LED indicator, clearly display the connection status. **Non-RAID**

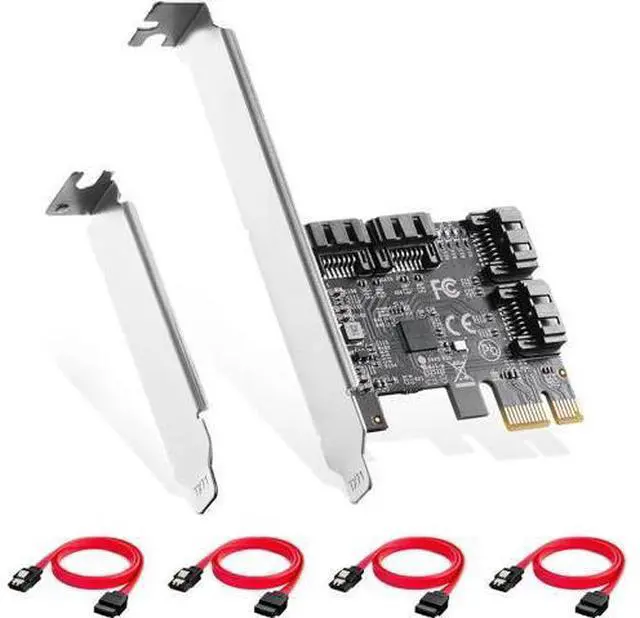

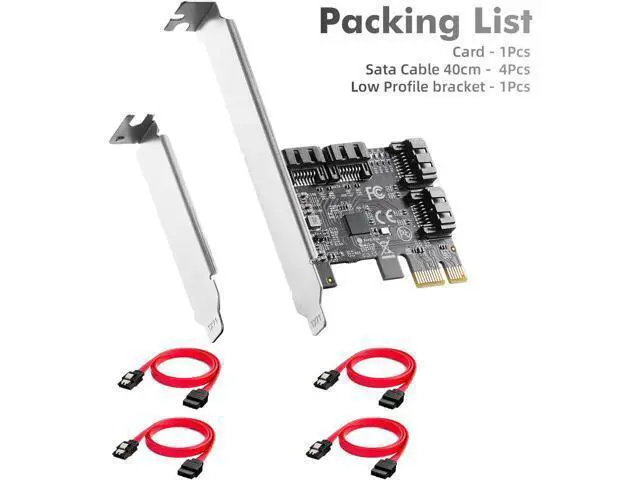

- Complete PackageIncludes all you need for a perfect solution: 1 x PCI-E to 4-port Adapter, 4 x SATA Cables(40cm), 1 x Low-Profile Bracket.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The SATAPCIT4 is 4-port SATA III (6 Gbps) to PCI Express x1 Gen 3 Host Card. It adds 4 AHCI SATA III port to computer though a PCIe slot (x1), delivering multiple internal 6Gbps connections for high performance hard drives and Solid State Drives (SSDs). With full support for SATA 3.0 hard drives and data transfer speeds of up to 6Gbps, the adapter card feature a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for internal SATA 600 MB/s storage needs.
Features: AHCI SATA III (6 Gbps) ports through PCI Express x1F ully compliant with SATA 3.0 specifications and backward compatible with SATA I/II ( 1.5 / 3.0G bps) C ompliant with PCI Express 3.0 standardsP ort Multiplier Command-based switching supportedN atively supported single chipset designS upport Native Command Queuing (NCQ) S upport SSC for both PCIe and
SATAL ED Indicators: HDD ActivityS upport Low Profile/Half-Height bracket installationt
Product Specification:
Chipset: ASMedia
ASM1064 Bus Type: PCI Express x1
Card Type: Standard / Low
Profile Interface: SATA
Ports: 4
Bootable: Yes
Hot Swap Capability: Yes
Port Multiplier: Yes
Type and Rate: SATA III (6 Gbps)
Connector Type (s): PCI Express x1 Male
Internal Ports: SATA (7 pin, Data) Plug System and
Cable Requirements: PCI Express enabled computer with an available PCI Express x1, x4, x8 or x16 slot
Environmental: Humidity 20~80% RH, Operating Temperature 5°C to 50°C (41°F to 122°F), Storage Temperature -25°C to 70°C (-13°F to 158°F)
Features: AHCI SATA III (6 Gbps) ports through PCI Express x1F ully compliant with SATA 3.0 specifications and backward compatible with SATA I/II ( 1.5 / 3.0G bps) C ompliant with PCI Express 3.0 standardsP ort Multiplier Command-based switching supportedN atively supported single chipset designS upport Native Command Queuing (NCQ) S upport SSC for both PCIe and
SATAL ED Indicators: HDD ActivityS upport Low Profile/Half-Height bracket installationt
Product Specification:
Chipset: ASMedia
ASM1064 Bus Type: PCI Express x1
Card Type: Standard / Low
Profile Interface: SATA
Ports: 4
Bootable: Yes
Hot Swap Capability: Yes
Port Multiplier: Yes
Type and Rate: SATA III (6 Gbps)
Connector Type (s): PCI Express x1 Male
Internal Ports: SATA (7 pin, Data) Plug System and
Cable Requirements: PCI Express enabled computer with an available PCI Express x1, x4, x8 or x16 slot
Environmental: Humidity 20~80% RH, Operating Temperature 5°C to 50°C (41°F to 122°F), Storage Temperature -25°C to 70°C (-13°F to 158°F)
