WISDUM Gigabit PoE Passthrough Switch, 1 PoE in 3 PoE Out Extender, IEEE802.3af/at PoE Powered, 10/100/1000Mbps Ethernet, din-Rail & Wall Mount

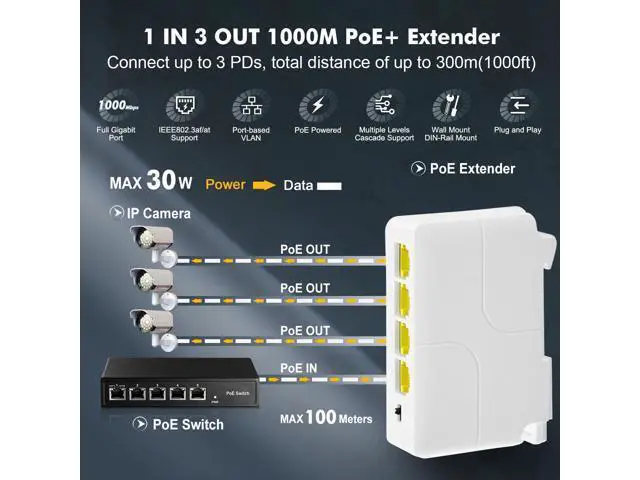

gigabit PoE+ extender provides 1 × 10/100/1000Mbps PoE in port and 3 × 10/100/1000Mbps PoE out ports for remote PoE/PoE+ device installation. The PoE extender auto-detects a PoE ( 15.4W ) or PoE+ (30W) devices. The PoE extender features a convenient wall mountable and DIN mountable design for installation flexibility. Daisy-chain up to 3 units for a total PoE+ network extension of 300m (1000 ft. ). Features Support active PoE cascade power supply and Ethernet data exchange. Support IEEE 802.3 af/at standard power supply. Cooperate with High PoE Midspan, able to cascade level 2 PoE Extender (total power consumption <=25W), max transmission distance 300m.

1* RJ45 10/100/1000M PoE power supply input. 3* RJ45 10/10/10000M PoE power supply output for PoE devices.

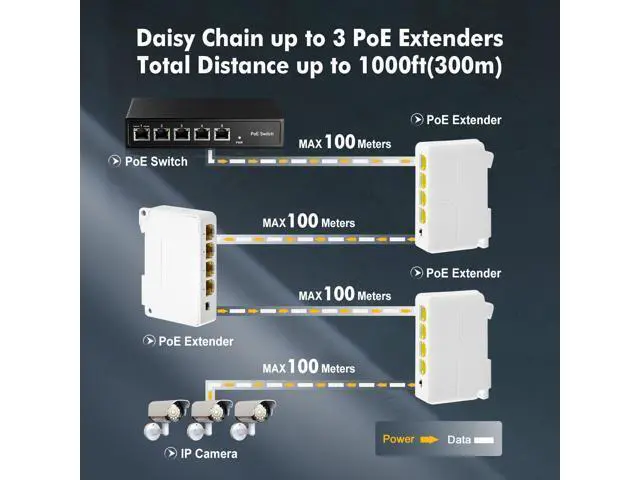

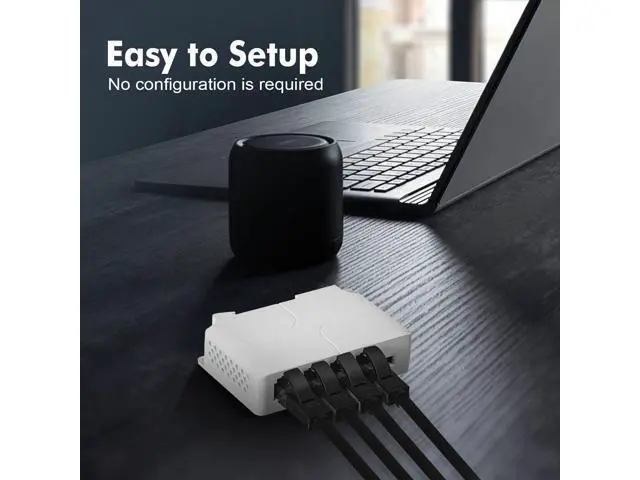

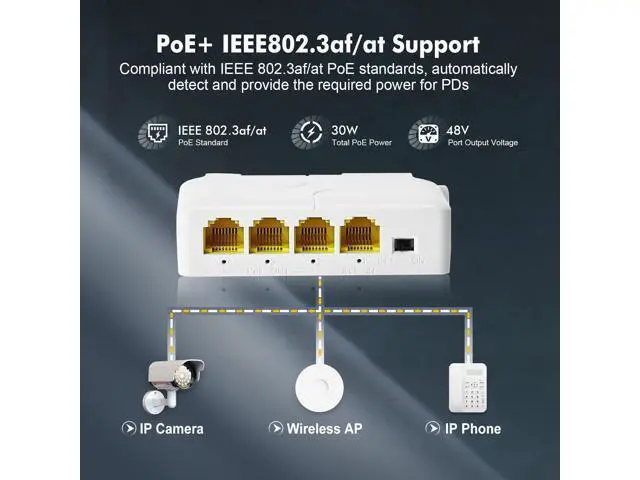

Installation mode: Wall mountable, DIN rail mountable. PoE Powered The PoE extender is powered by PSE. No power needed. Extends a single PoE/PoE+ network connection up to 100m (328 ft. ) for a remote PoE or PoE+ device installation. IEEE 802.3 af/at Support 1 in 3 out PoE extender compatible with IEEE 802.3 af/at standard, It determines and delivers the exact power supply to your devices with up to 30W power output. Easy to Use Plug and play, No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device. Daisy-Chain up to 3 PoE extenders The PoE extender is powered by PoE Switch/PoE NVR/PoE Injector that comply with IEEE 802.3 af/at Standards. It extends a single PoE/PoE+ network connection up to an additional 100m (328 ft. ) for a remote PoE or PoE+ device. Daisy chain up to 3 PoE extenders for a total PoE+ network extension of 300m (1000 ft. ). Full Gigabit Configuration 1*10/100/1000Mbps PD Ethernet Port + 3*10/100/1000Mbps PoE Por, provide enough bandwith to prevent network bottlenecks.

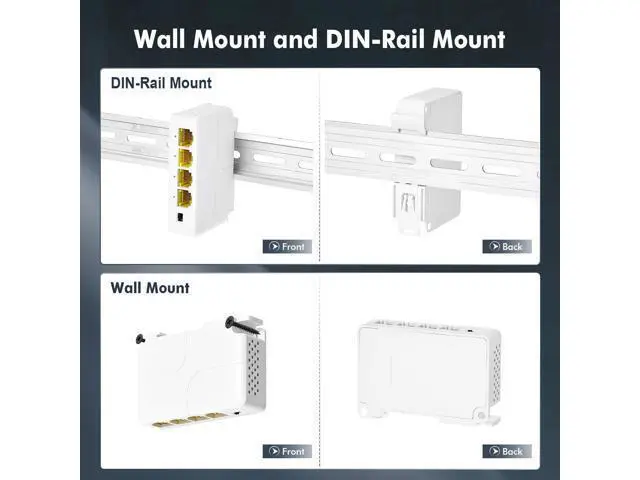

Compact Size Compact dimension (82mm * 52mm * 23mm), This design makes these sensors interesting for room critical applications. Wall & Din-rail Mountable Ultra Compact PoE repeater can be mounted on a 35mm din rail and wall. perfect solution for a variety of environments. Gigabit PoE PassthroughInclude 1 PoE In 3 PoE Out Gigabit Ports, 10/100/1000Mbps rate. Powered by PoE network, no AC power supply required IEEE 802.3 af/at Support standard PoE, Input Max 30W, Output Max 24W, Average 8W per port. PoE Voltage 44-57 Vdc.
PoE pin:
Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-);
Output: 1/2 (+), 3/6 (-) Plug & Play Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE* Easy Install Support wall mount and din rail mount, smaller size save space, suitable for many positions Widely Used Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost
