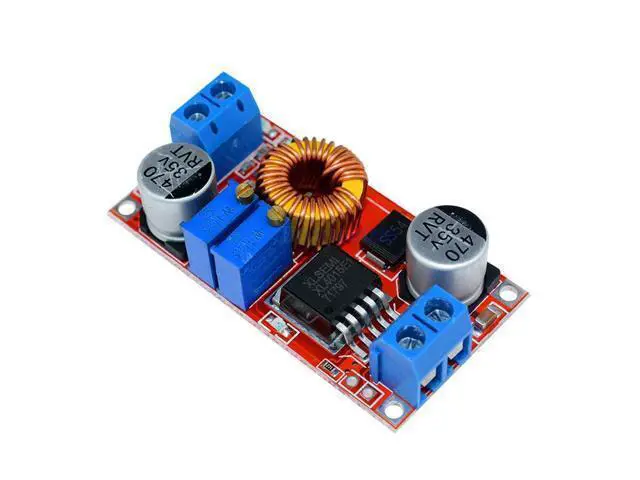

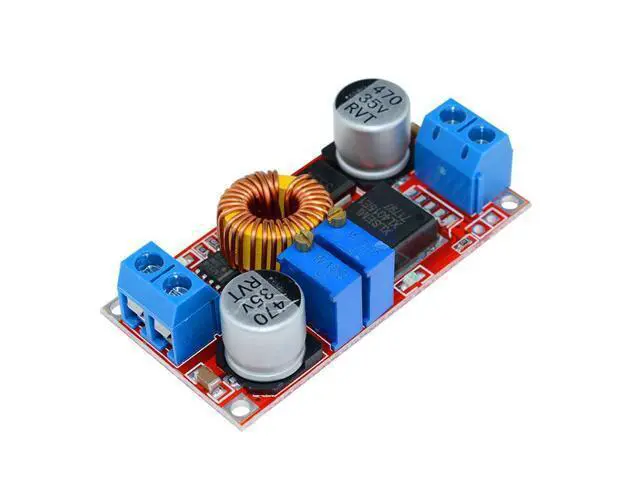

WISDUM 3pcs XL4015 5A DC to DC CC CV Lithium Battery Step Down Charging Board Led Power Converter Charger Step Down Module
- Module Properties: non-isolated constant current and voltage module
- Rectification: non-synchronous rectification
- Input voltage: 5V-32V
- Output voltage: 0.8V-30V
- Output current: adjustable maximum 5A
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
3pcs XL4015 5A DC to DC CC CV Lithium Battery Step down Charging Board Led Power Converter Charger Step Down Module
Feature Size: 5.2 x 2.65 x 1.4 cm (L x W x
H) Module Properties: non-isolated constant current and voltage module
Rectification: non-synchronous rectification
Input voltage: 5V-32V
Output voltage: 0.8V -30V
Output current: adjustable maximum 5A
Conversion efficiency: 95% (the highest)
Switching frequency: 300KHz
Output ripple: 50mV (max) 20M bandwidth
Load Regulation: ± 0.5 %
Voltage Regulation: ± 2.5 %

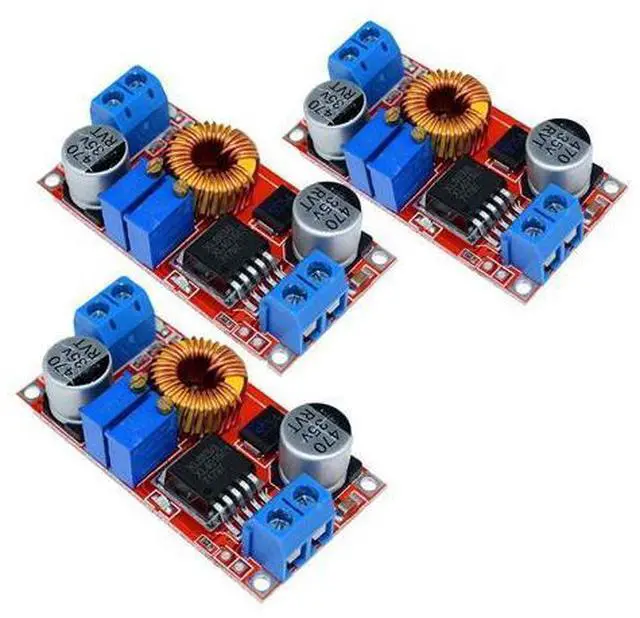

Operating Temperature: -40 °c to +85 °c Package Includes 3 * XL4015 Step Down Module
Feature Size: 5.2 x 2.65 x 1.4 cm (L x W x
H) Module Properties: non-isolated constant current and voltage module
Rectification: non-synchronous rectification
Input voltage: 5V-32V
Output voltage: 0.8V -30V
Output current: adjustable maximum 5A
Conversion efficiency: 95% (the highest)
Switching frequency: 300KHz
Output ripple: 50mV (max) 20M bandwidth
Load Regulation: ± 0.5 %
Voltage Regulation: ± 2.5 %
Operating Temperature: -40 °c to +85 °c Package Includes 3 * XL4015 Step Down Module
