WISDUM HDMI Extender Splitter 1 in 2 Out Over Cat5e or 6 Ethernet Adapter Up to 165FT HD1080P60Hz with Loop Support EDID Copy Settings HDCP

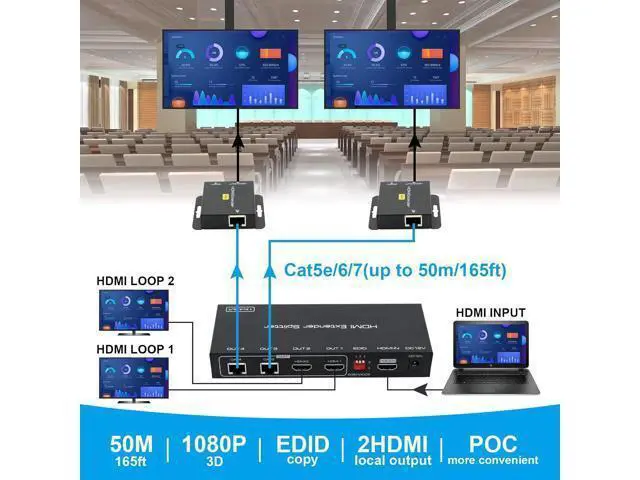

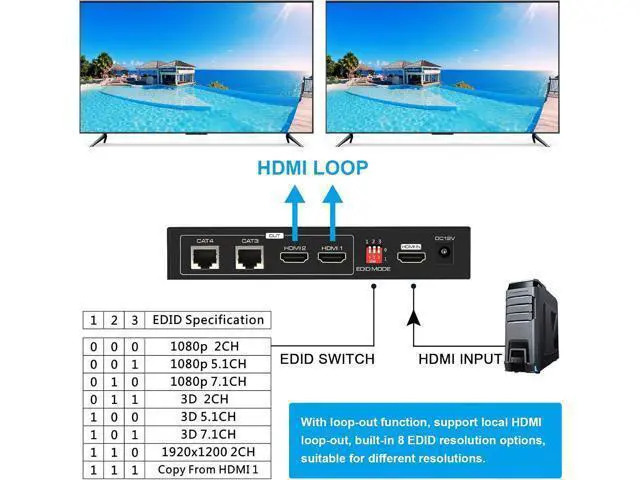

This HDMI extender splitter is divide one channel input into two 2 channels output and 2 loop out, two of which can Transmit high-definition video signals over a single Cat5e/Cat6/Cat7 cable up to 165ft. It supports high resolution up to 1080p. The extender can use for a wide range of applications requiring long-distance transmission of high resolution with high quality of its good stability and powerful security. The HDMI extender splitter on CAT5e / 6 / 7 has a 165ft loop, which can expand the uncompressed HDMI signal through an affordable network cable while maintaining signal strength and lossless video EDID Preset According to different application requirements, the TX supports a variety of EDID preset programs to improve the compatibility of the equipment, which can better match the signal source and display to get the most suitable video and audio signal.

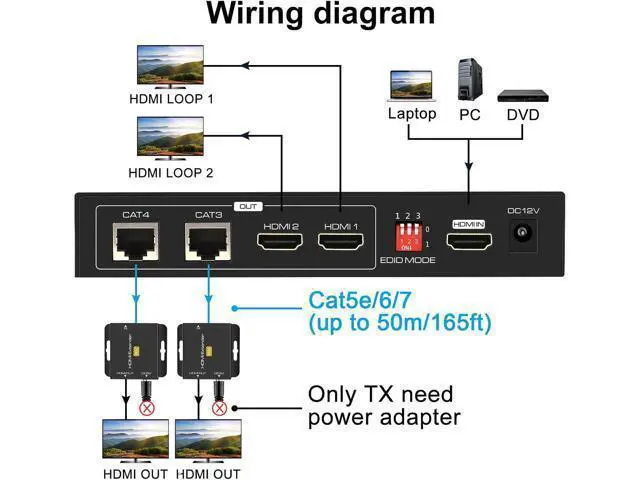

Support POC function Using POC power supply technology, a 12V power adapter must be connected to the TX, Rx through the network cable transmission power supply can work, safe and reliable. T568B standard cable sequence HDMI extender is made of CAT5e/6 cable with T568B standard cable sequence.

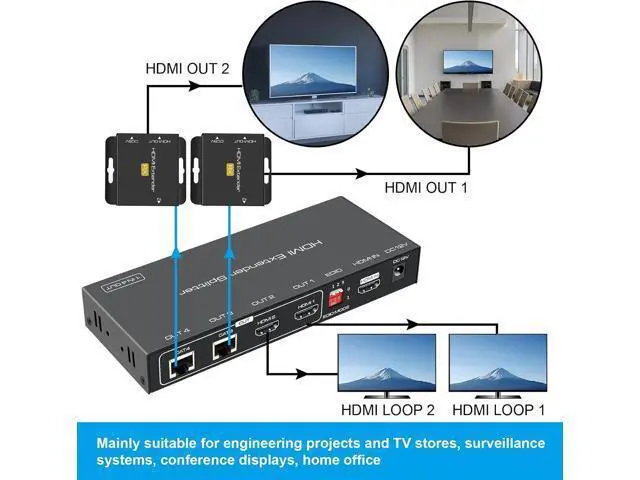

The wiring order is: white orange, orange, white green, blue, white blue, green, white brown, brown 2-way loop-out display There are two HDMI local output ports on the side of the transmitter TX, which can be connected to a display and output the signal directly to the display device
Specification: Supported
resolution: / Up to 1920x1200 @ 60Hz / 3D / 1080p / 1080i / 720p / 576i / 480p
Audio Format Supported: PCM / DTS / DSD Maximum
Transmission Bandwidth: 1.65
G HDMI input/output cable distance: 16 feet (5m) AWG26 standard HDMI cable
Power Format:
Input: AC(50HZ, 60HZ) 100V-240V, Output: DC12V

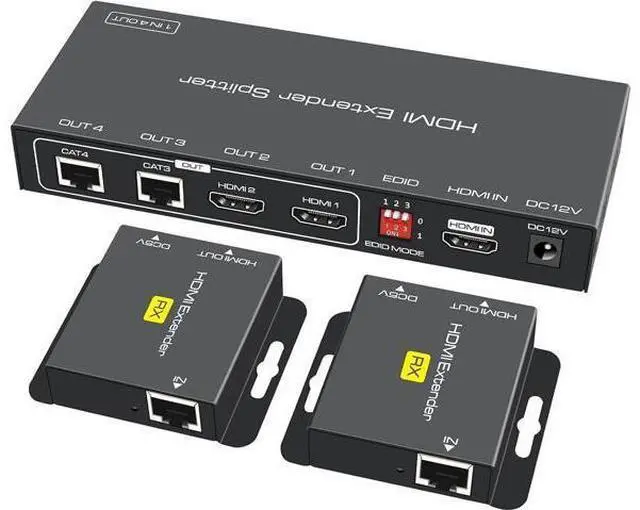

Packing list: HDMI-TX x 1 HDMI-RX x 2 Mounting Ear x2 power adapter x 1 User Manual x 1 HDMI Extender splitter over CAT6The HDMI extender splitter can split One HDMI signal into two identical Signals and run up to 165ft through the CAT6 cable with two Loop-Out Local Display Power on CAT6HDMI extender 1 in 2 out Using POC technology, we only need to use the power supply at TX, and Rx can work through the network cable transmission power supply. Low to 5V voltage transmission, safe and reliable.
(Notes: 12V power must be connected to TX, otherwise the device will be damaged. ) HDMI Extender Splitter Support EDID PresetAccording to different application requirements, the TX supports a variety of EDID preset programs to improve the compatibility of the equipment, which can better match the signal source and display to get the most suitable video and audio signal No compression TransmissionHDMI extender splitter 1x2 support resolution up to 1920x1200@60Hz and 1080p@60Hz.
Support audio format: PCM/DTS/ DSD.
Suggested length: Cat6/7--165 ft, Cat5e--130 ft, Cat5--100 ft
