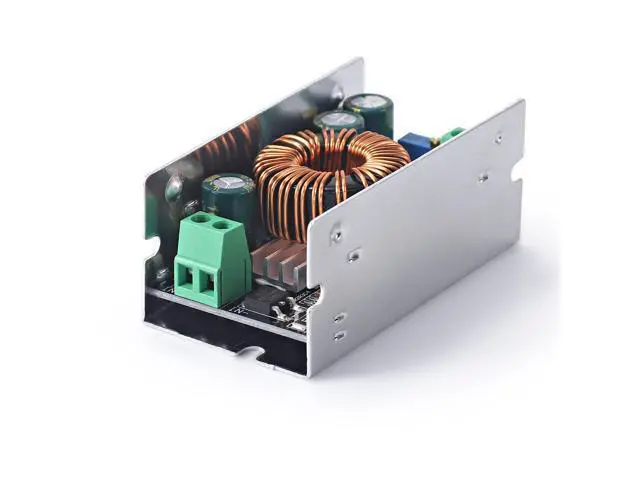

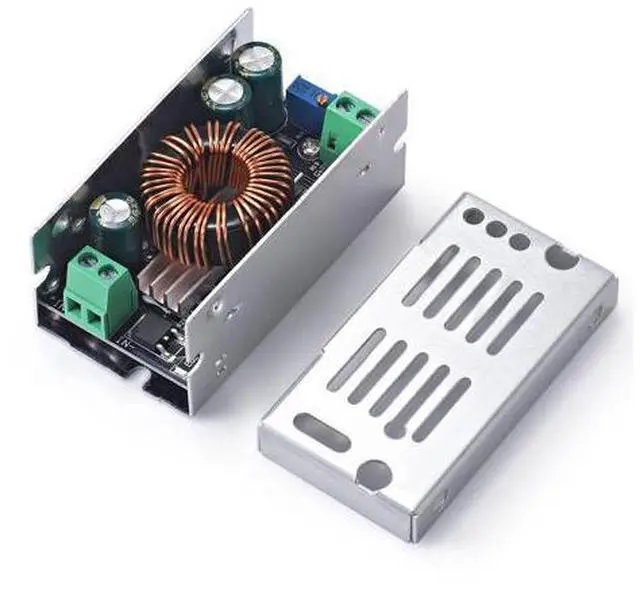

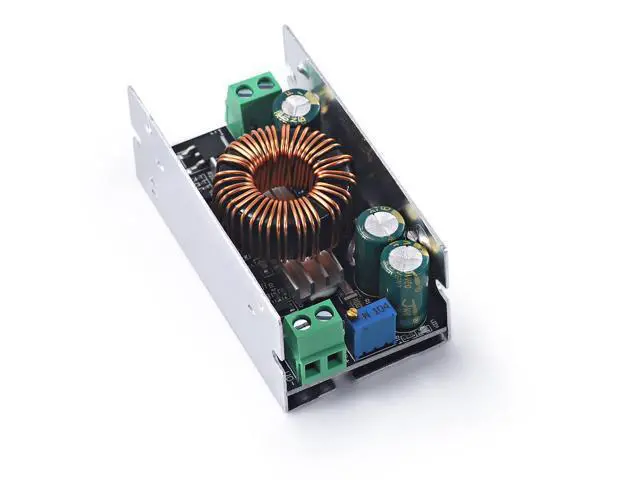

WISDUM 100W 6A DC-DC Buck Converter 10-90V 12V 24V 36V 48V 60V 72V 86 to 1.5V-60V 5V 15V 19V Step-Down Power Voltage Regulator Module
- The potentiometer needs a few more turns to be adjustable,Potentiometer should be at least 20 turns
- It can greatly improve the efficiency of the DC/DC converter and there is no dead zone voltage caused by the Schottky barrier voltage. Power MOSFET is a voltage-controlled device, and its volt-ampere characteristic is linear when it is turned on.
- When using a power MOSFET as a rectifier, the gate voltage must be synchronized with the phase of the rectified voltage to complete the rectification function, so it is called synchronous rectification.
- When using a power MOSFET as a rectifier, the gate voltage must be synchronized with the phase of the rectified voltage to complete the rectification function, so it is called synchronous rectification.
- Synchronous rectification is a new technology that uses special power MOSFETs with extremely low on-state resistance to replace rectifier diodes to reduce rectification losses.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: Module parameters
Module nature: synchronous rectification non-isolated buck module
Input voltage: 10-90VDC
Output voltage: 1.5 -60VDC (applicable to applications where the input voltage is higher than the output voltage and cannot be boosted)
Output current: Max 6A
Maximum power: 100W (maximum current 6A at low voltage output. 100W at high voltage output)
Working frequency: 180KHZ
Conversion efficiency: 97.5 % (typical value)
Input anti-reverse connection: Yes
Aluminum shell size: 70MM * 38MM * 31MM
Weight: about 70g
Module nature: synchronous rectification non-isolated buck module
Input voltage: 10-90VDC
Output voltage: 1.5 -60VDC (applicable to applications where the input voltage is higher than the output voltage and cannot be boosted)
Output current: Max 6A
Maximum power: 100W (maximum current 6A at low voltage output. 100W at high voltage output)
Working frequency: 180KHZ
Conversion efficiency: 97.5 % (typical value)
Input anti-reverse connection: Yes
Aluminum shell size: 70MM * 38MM * 31MM
Weight: about 70g
