WISDUM Outdoor Gigabit PoE Passthrough Switch, 1 PoE in 3 PoE Out Extender, IEEE802.3af/at PoE Powered, 10/100/1000Mbps Ethernet, Wall Mount Waterproof Plug and Play

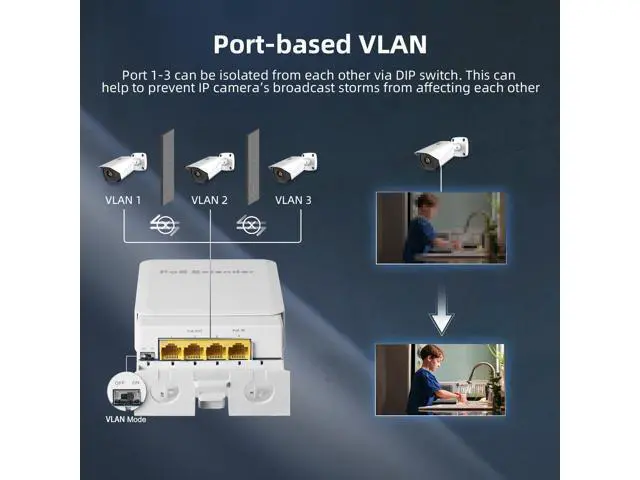

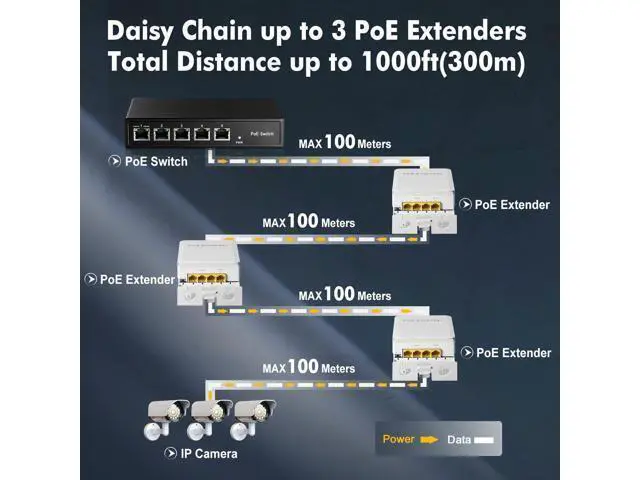

outdoor gigabit PoE extender provides 1×10/100/1000Mbps PoE in port and 3×10/100/1000Mbps PoE out ports for remote PoE/PoE+ device. The PoE extender auto-detects a PoE ( 15.4W ) or PoE+ (30W) devices. Daisy-chain up to 3 units for a total PoE+ network extension of 300m (1000 ft. ). PoE Powered The PoE extender is powered by PoE switch/spliter. No power adapter needed. IEEE 802.3 af/at Support 1 in 3 out PoE extender compatible with IEEE 802.3 af/at standard, It determines and delivers the exact power supply to your devices Port Isoltion By dialing or enabling extend switch on the PoE extender, port 1-3 can be isolated with each other, prevent broadcast storms.

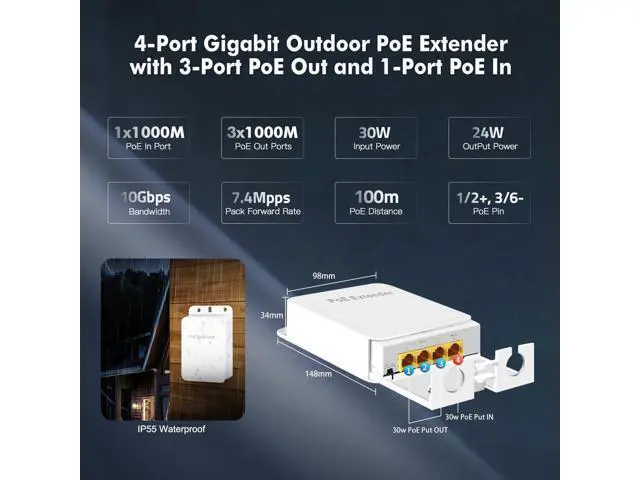

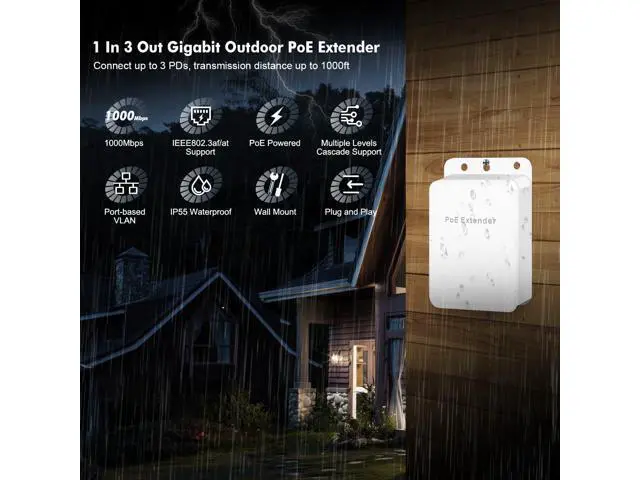

Full Gigabit Configuration 1*10/100/1000Mbps PD Ethernet Port + 3*10/100/1000Mbps PoE Por, provide enough bandwith to prevent network bottlenecks. Long Distance PoE The transmission distance of a PoE out port can be up to 300m with cascade, meeting the requirement of wired transmission. Easy to Use Plug and play, No configuring is required. Auto MDI/MDI-X crossover and Auto-negotiation on each port senses the link speed of a network device. Compact Size Compact dimension (98mm * 128mm * 34mm), This design makes these sensors interesting for room critical applications. IP55 Waterproof & Wall Mout The PoE extender uses ABS+PC housing and supports IP55 waterproof and wall mount installation, It designed for outdoor surveillance scenarios.

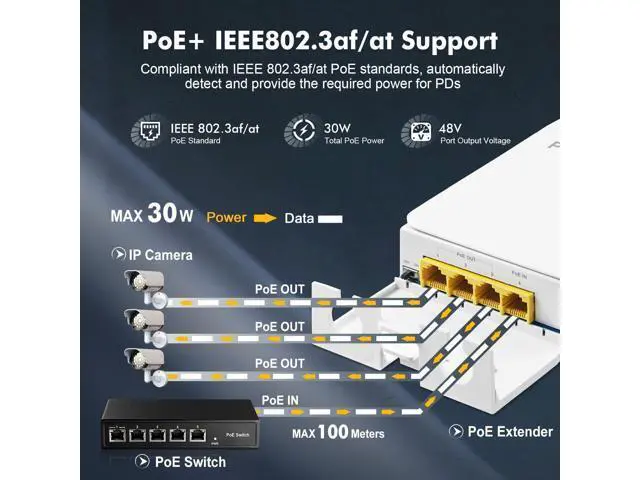

Gigabit PoE PassthroughInclude 1 PoE In 3 PoE Out Gigabit Ports, 10/100/1000Mbps rate. Powered by PoE network, no AC power supply required IEEE 802.3 af/at Support standard PoE, Input Max 30W, Output Max 24W, Average 8W per port. PoE Voltage 44-57 Vdc.
PoE pin:
Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-);
Output: 1/2 (+), 3/6 (-) Outdoor weatherproof Industrial grade ABS polymer material shell, cable interface all protected in the shell, with better waterproof, dustproof, snowproof effect, more suitable for outdoor use; also suitable for complex indoor environment, such as warehouses, computer rooms, garages, attics, etc. Plug & Play Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE*. Support VLAN mode, controlled by dipswitch
