WISDUM DisplayPort KVM Switch Dual Monitors for 2 Computers 4K@60Hz 2 in 2 Out Displayport KVM Switch with Audio Microphone Output and 3 USB Ports, Keyboard Mouse Displayport Dual Monitor KVM

Dual Monitor DisplayPort KVM Switch for 2
Computers Features: 1. Displayport kvm dual monitor share one set of keyboard, mouse, and dual monitors between 2 computers or laptops; 2. Dual monitors output support up to 4K@60Hz; 3.

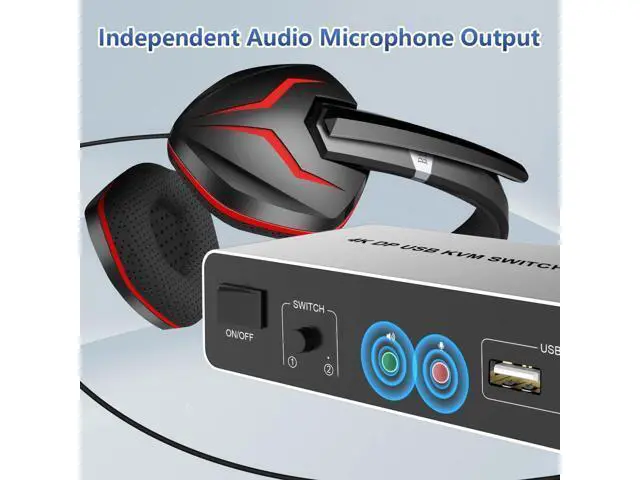

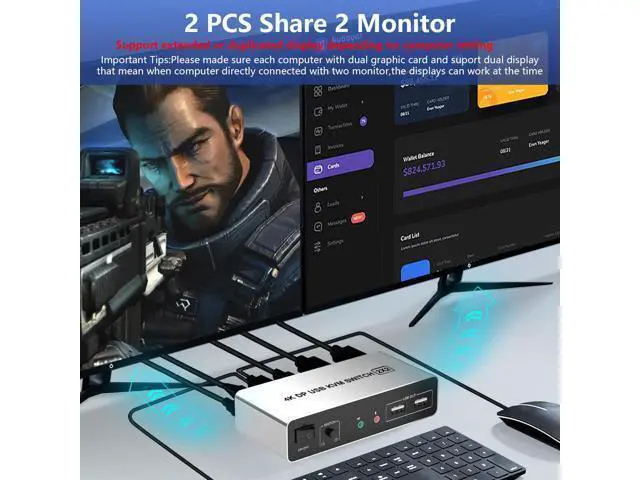

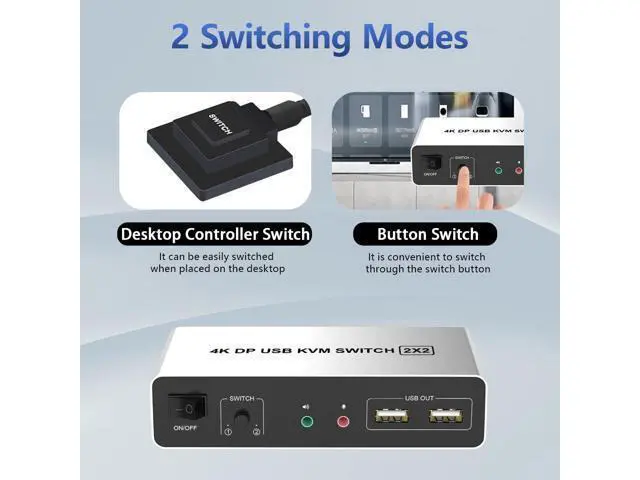

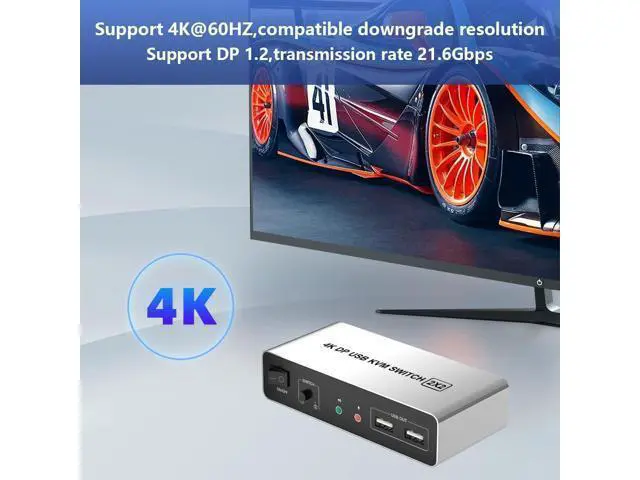

2 Switching modes: Button switch and wired remote. 4. With an extra 3 USB 2.0 and Audio Microphone output 5. Compatible with Windows 10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems. 6. The ports that need to plug in DisplayPort/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered Ultra HD 4K@60Hz KVM Switch Dual Monitor Confirms to DP 1.2 protocol, supports a maximum resolution of 3840x2160@60Hz, and is compatible downwards. The dual monitor requires DisplayPort connections from each computer to the KVM switch. When both the display and the signal source support 4K@60Hz, the device can provide a 4K experience.
Note: Only when both your computer Graphics card and monitor support 4K@60Hz then you can get the 4K@60Hz effect, so if you want the max resolution you have to check your devices first.

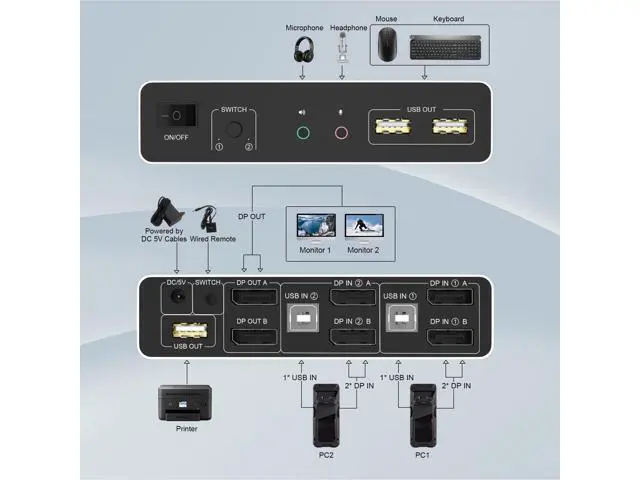

Installation Steps: 1. Connect the DC/5V adapter to power the KVM. 2. Plug the Displayport cable and USB cable into the KVM switch and your computer/laptop (Displayport cables are not included) (Input) Please check whether Displayport IN1 and USB IN1 are corresponding and whether Displayport IN2 and USB IN2 are corresponding. Mixed insertion is not supported. DP IN1 A + DP IN1 B + USB IN1=PC1 DP IN2 A + DP IN2 B + USB IN2=PC2 3. Plug the Displayport cable into the KVM switch and monitor; (HDMI and DP cable not included) (Output)
