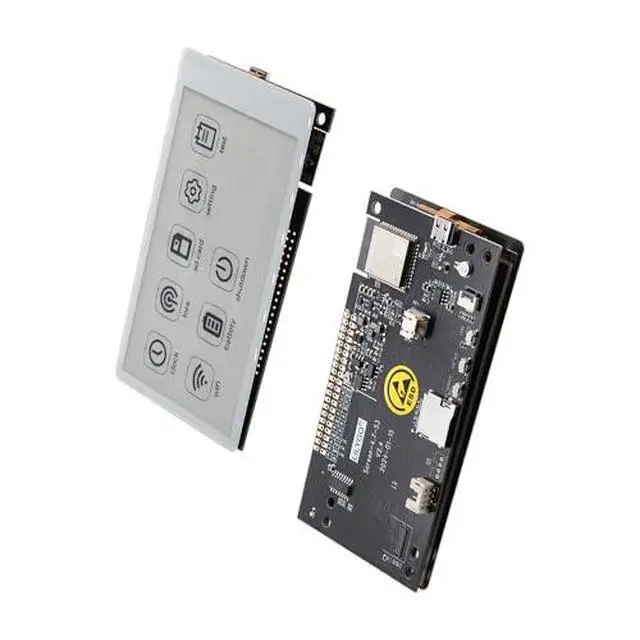

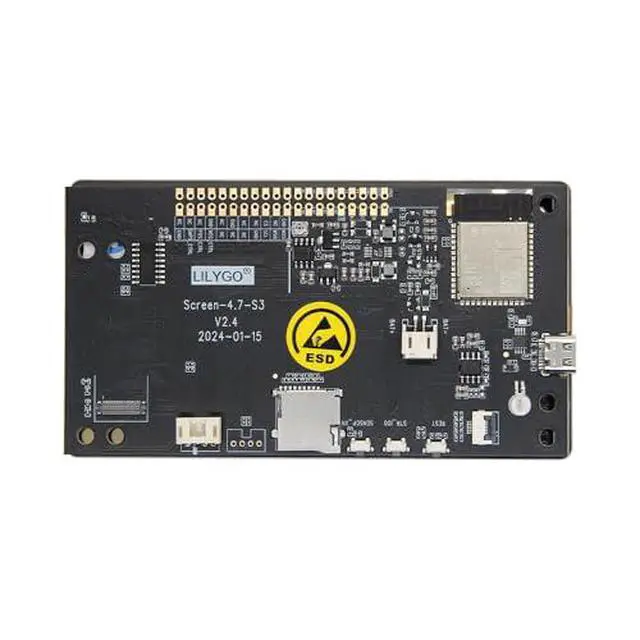

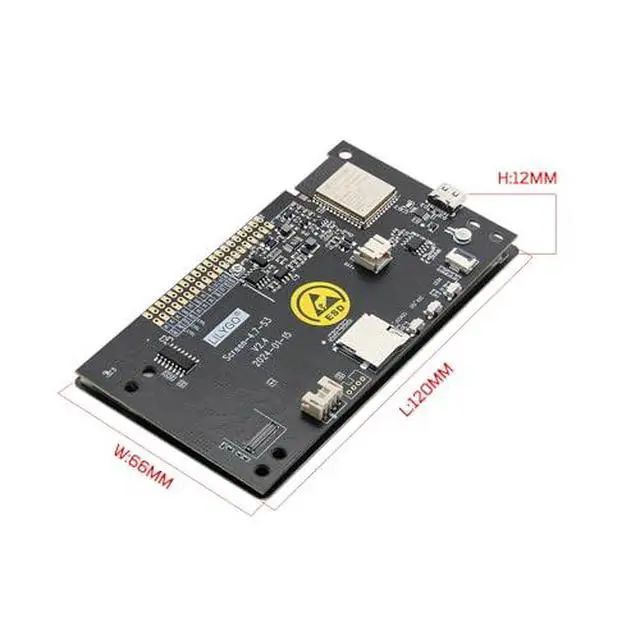

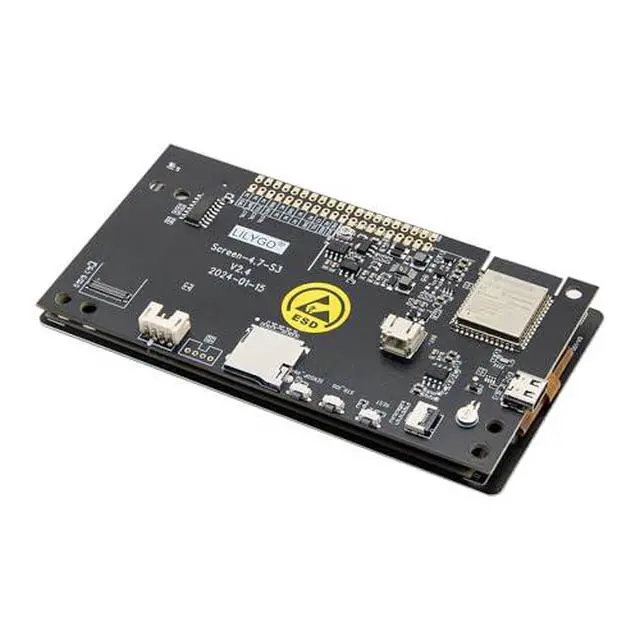

LILYGO T5-4.7-S3 4.7 Inch E-Paper ESP32-S3-WROOM-1 TTGO Development Board
Limited time offer, ends 07/26 By GGnix
- MCUESP32-S3-WROOM-1-N16R8
- ScreenThis version is equipped with a touchscreen.
- Programming EnvironmentIDE, VS Code
- Githubgithub.com/Xinyuan-LilyGO/LilyGo-EPD47/tree/esp32s3
- Product serviceIf you have any questions or suggestions about the product, please feel free to contact us. We will answer your question as soon as possible
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description
Product Parameter Use Reminder: Due to the characteristics of the ink screen, it cannot be partially refreshed for a long time, otherwise it will leave afterimages and cause irreversible damage.

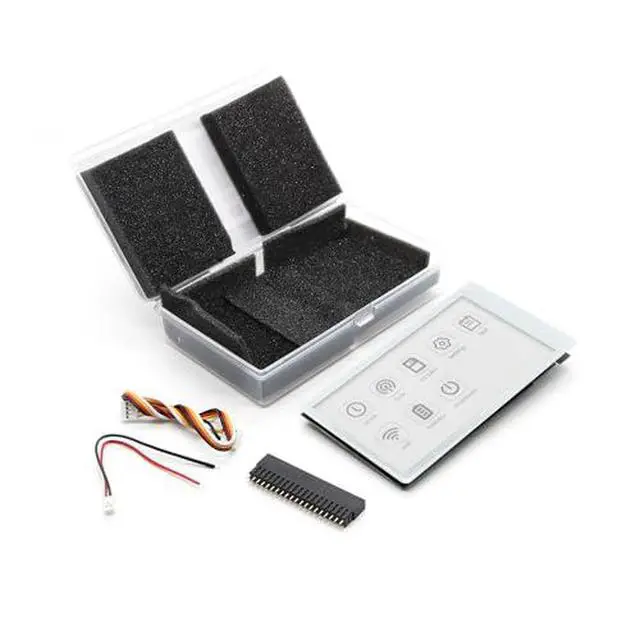

Github: github. com/Xinyuan-LilyGO/LilyGo-EPD47/tree/esp32s3 PIN MAP FAQ Which one does the sleep current measurement example use?? Sleep current test measured by demo example How to fix afterimages? Please upload examples/screen_repair to try to remove afterimages. It is not 100% able to remove afterimages. The board uses USB as the JTAG upload port. When printing serial port information on USB_CDC_ON_BOOT configuration needs to be turned on. If the port cannot be found when uploading the program or the USB has been used for other functions, the port does not appear. Please enter the upload mode manually. Connect the board via the USB cable Press and hold the BOOT (IO0) button, While still pressing the BOOT (IO0) button, press RST Release the RST Release the BOOT (IO0) button Upload sketch SHIPPING LIST 1 X T5- 4.7 inch S3 e-paper 1 X 2.0 4P Double ended terminal line 1 X Power cable[st 2Pin 2.0 mm] 1 X Female Pin 2*20p
Product Parameter Use Reminder: Due to the characteristics of the ink screen, it cannot be partially refreshed for a long time, otherwise it will leave afterimages and cause irreversible damage.
Github: github. com/Xinyuan-LilyGO/LilyGo-EPD47/tree/esp32s3 PIN MAP FAQ Which one does the sleep current measurement example use?? Sleep current test measured by demo example How to fix afterimages? Please upload examples/screen_repair to try to remove afterimages. It is not 100% able to remove afterimages. The board uses USB as the JTAG upload port. When printing serial port information on USB_CDC_ON_BOOT configuration needs to be turned on. If the port cannot be found when uploading the program or the USB has been used for other functions, the port does not appear. Please enter the upload mode manually. Connect the board via the USB cable Press and hold the BOOT (IO0) button, While still pressing the BOOT (IO0) button, press RST Release the RST Release the BOOT (IO0) button Upload sketch SHIPPING LIST 1 X T5- 4.7 inch S3 e-paper 1 X 2.0 4P Double ended terminal line 1 X Power cable[st 2Pin 2.0 mm] 1 X Female Pin 2*20p
