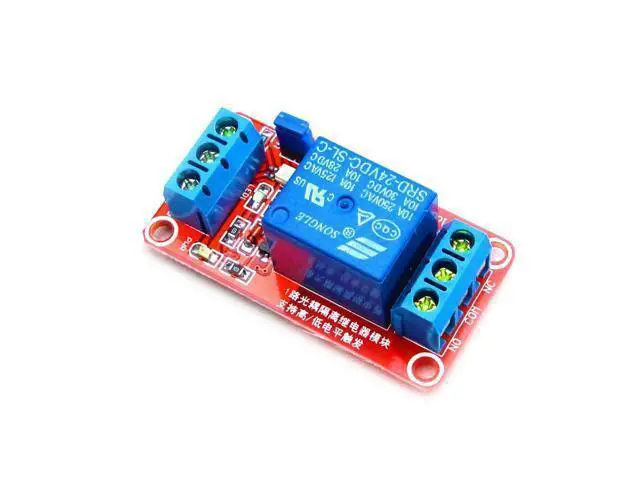

WISDUM 2pcs DC 24V 1 Channel Relay Module with OPTO Isolation Support High or Low Level Trigger
- The module uses genuine quality relay, normally open interfaces , Maximum load: AC 250V/10A, DC 30V/10A.
- Using SMD optocoupler isolation, strong driving capability, stable performance; trigger current 5mA.
- Fault-tolerant design, even if the control line is broken, the relay will not move.
- The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient.
- The Module can be set by jumper high or low trigger.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
24V 1 Channel Relay Module With OPTO Isolation Support High or Low Level Trigger Description
1.
Maximum load: AC 250V/10A, DC 30V/10A
2. Using SMD OPTOCOUPLER isolation, the trigger current only 5mA
3. The module have 5V, 9V, 12V and 24V are available
4. The module can be set to high or low triggered by jumper
5. Fault-tolerant design, even if the control line is broken, the relay will maintain;
6. Has the power indicator (green) and relay status indicator (red)
7.
Size: 50*26* 18.5 mm
8. Has four mounting bolts holes, hole 3.1 mm, 44.5 * 20.5 mm pitch
Interface:
Input:
VCC: Relay power supply +
GND: Relay power supply -
IN: Signal trigger input (High or Low Level Signal, select via jumper)
Output:
NO: Relay normally open.
COM: Relay
Common Pin NC: Relay normally closed. High or Low
Level Trigger Select:
1. Use High Level Trigger When ¡°IN¡± input High Level Signal, the ¡°NO¡± connect with ¡±COM¡± When ¡°IN¡± input Low Level Signal, the ¡°NC¡± connect with ¡°COM¡±

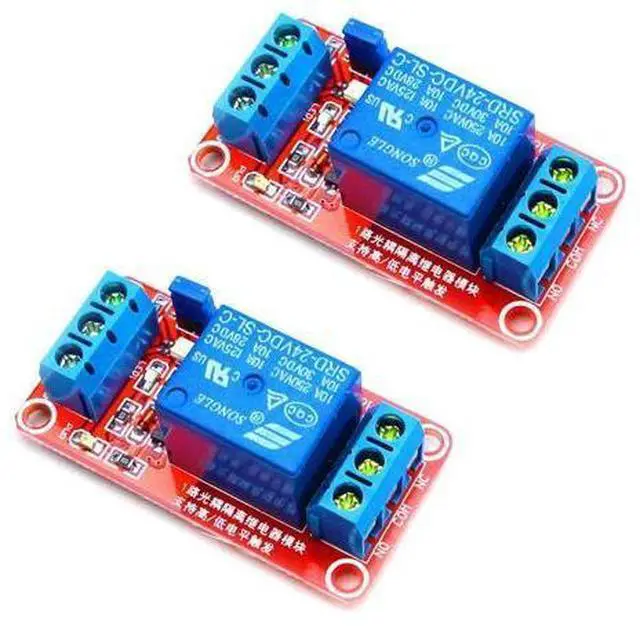

2. Use Low Level Trigger Package Included 2* 24V 1 Channel Relay Module
1.
Maximum load: AC 250V/10A, DC 30V/10A
2. Using SMD OPTOCOUPLER isolation, the trigger current only 5mA
3. The module have 5V, 9V, 12V and 24V are available
4. The module can be set to high or low triggered by jumper
5. Fault-tolerant design, even if the control line is broken, the relay will maintain;
6. Has the power indicator (green) and relay status indicator (red)
7.
Size: 50*26* 18.5 mm
8. Has four mounting bolts holes, hole 3.1 mm, 44.5 * 20.5 mm pitch
Interface:
Input:
VCC: Relay power supply +
GND: Relay power supply -
IN: Signal trigger input (High or Low Level Signal, select via jumper)
Output:
NO: Relay normally open.
COM: Relay
Common Pin NC: Relay normally closed. High or Low
Level Trigger Select:
1. Use High Level Trigger When ¡°IN¡± input High Level Signal, the ¡°NO¡± connect with ¡±COM¡± When ¡°IN¡± input Low Level Signal, the ¡°NC¡± connect with ¡°COM¡±
2. Use Low Level Trigger Package Included 2* 24V 1 Channel Relay Module
