LILYGO T-SIM7000G-S3 Standard EPS32-S3 Solar Charge SIM GPS Antenna GSM 2G TTGO Development Board
- Flash 16MB(Quad-SPI)PSRAM 2MB(Quad-SPI)
- Wireless Connectivity 2.4 GHz Wi-Fi (802.11 b/g/nBluetooth 5 (LE), Bluetooth Mesh
- WIKI : wiki.lilygo.cc/en/
- GitHub : github.com/Xinyuan-LilyGO/LilyGo-Modem-Series/blob/main/docs/en/esp32s3/sim7000g-s3-standard/REAMDE.MD
- If you have any questions or suggestions about the product, please feel free to contact us. We will answer your question as soon as possible
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description
Github: github. com/Xinyuan-LilyGO/LilyGo-Modem-Series/blob/main/docs/en/esp32s3/sim7000g-s3-standard/REAMDE.
MD FAQ: Unable to detect SIMCard? Need to insert the SIMCard into the board first and then power on to detect the SIM card. If the order is reversed, it will report that the SIMCard cannot be detected. Can't upload any sketchPlease enter the upload mode manually. Connect the board via the USB cable Press and hold the BOOT button, While still pressing the BOOT button Press RST button Release the RST button Release the BOOT button Upload sketch About VBUS Pin VBUS Pin and USB-C are on the same line. Only when USB-C is connected, VBUS has voltage When only the battery is connected, VBUS has no voltage output If you want to connect an external power supply without connecting USB-C, VBUS Pin is the only voltage input pin. Please note that the maximum input of VBUS Pin is 5V, do not exceed 5V Can other GPS antennas be used? The external GPS antenna must be an active GPS antenna with a 3.3V power supply. For example, the MK-76 supports 2.5 - 5.5V and is compatible. Most active GPS antennas support 2.5 - 5.5V power.

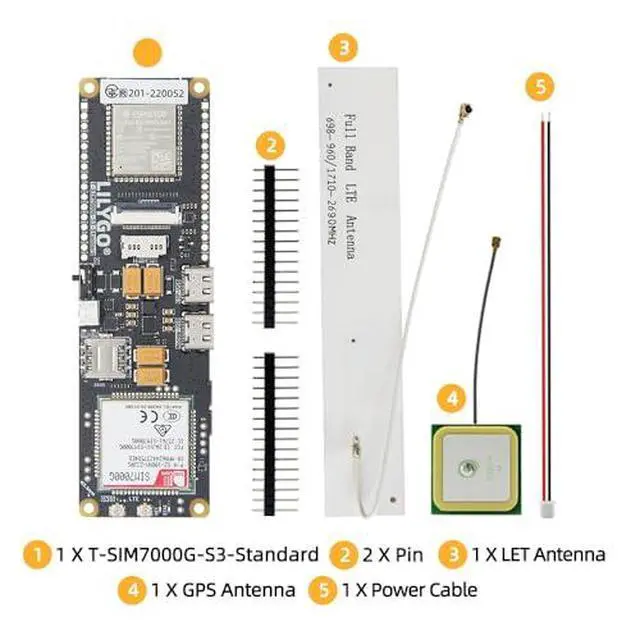

Please refer to the GPS antenna datasheet for details. SHIPPING LIST 1XT-SlM7oo0G-S3-Standard 2×Pin 1XLETAntenna 1XGPSAntenna 1XPowerCable
Difference: github. com/Xinyuan-LilyGO/LilyGo-Modem-Series/blob/main/docs/model_comparison. md
Github: github. com/Xinyuan-LilyGO/LilyGo-Modem-Series/blob/main/docs/en/esp32s3/sim7000g-s3-standard/REAMDE.
MD FAQ: Unable to detect SIMCard? Need to insert the SIMCard into the board first and then power on to detect the SIM card. If the order is reversed, it will report that the SIMCard cannot be detected. Can't upload any sketchPlease enter the upload mode manually. Connect the board via the USB cable Press and hold the BOOT button, While still pressing the BOOT button Press RST button Release the RST button Release the BOOT button Upload sketch About VBUS Pin VBUS Pin and USB-C are on the same line. Only when USB-C is connected, VBUS has voltage When only the battery is connected, VBUS has no voltage output If you want to connect an external power supply without connecting USB-C, VBUS Pin is the only voltage input pin. Please note that the maximum input of VBUS Pin is 5V, do not exceed 5V Can other GPS antennas be used? The external GPS antenna must be an active GPS antenna with a 3.3V power supply. For example, the MK-76 supports 2.5 - 5.5V and is compatible. Most active GPS antennas support 2.5 - 5.5V power.
Please refer to the GPS antenna datasheet for details. SHIPPING LIST 1XT-SlM7oo0G-S3-Standard 2×Pin 1XLETAntenna 1XGPSAntenna 1XPowerCable
Difference: github. com/Xinyuan-LilyGO/LilyGo-Modem-Series/blob/main/docs/model_comparison. md
