LILYGO T-Track ESP32-S3 AMOLED Trackball TTGO Development Board ESP32-S3R8 WiFi Bluetooth Wireless Module with 1.1 Inch Display

Product description T-Track

Specifications

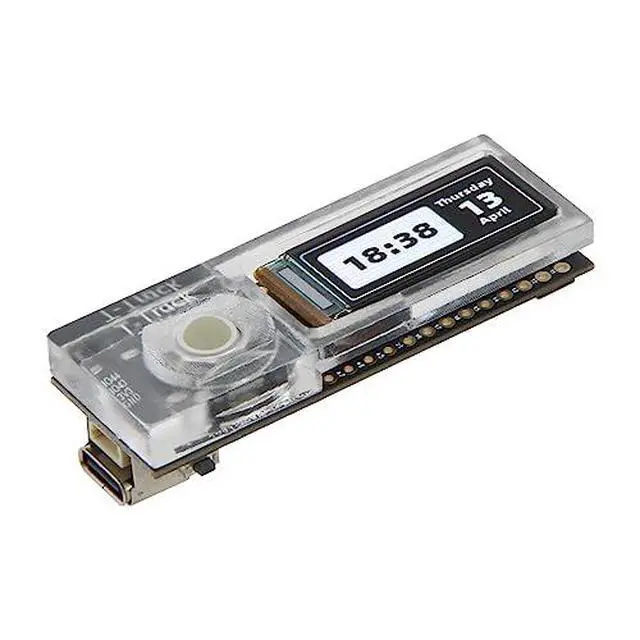

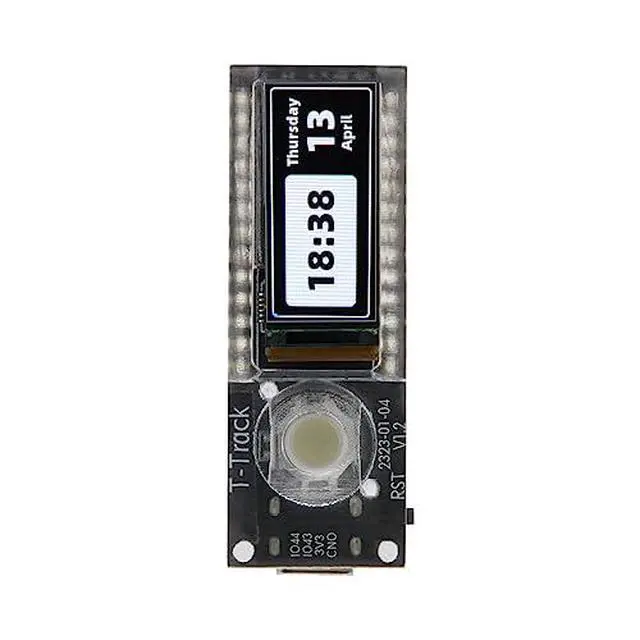

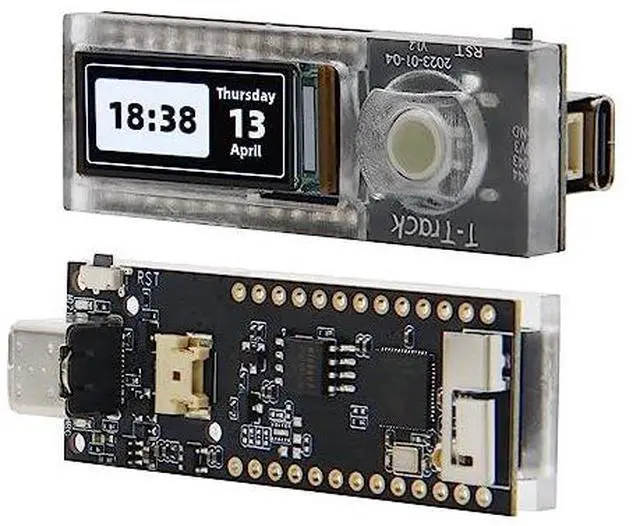

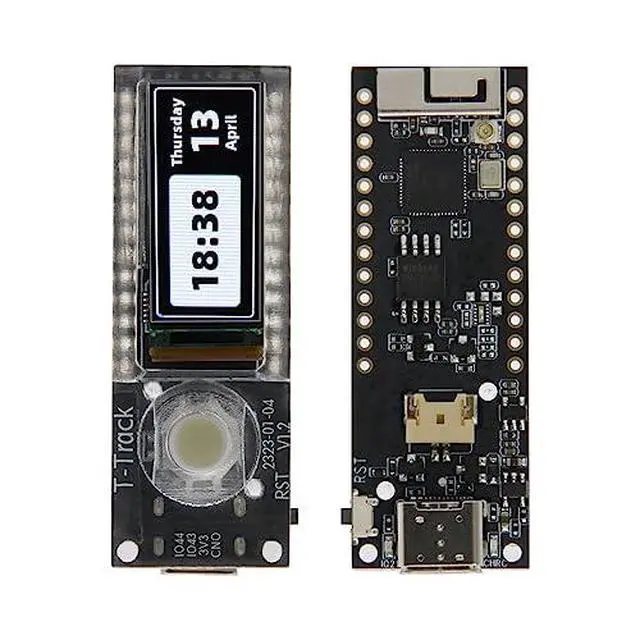

Tips When the USB is repeatedly disconnected, it means that the program is abnormal. At this time, you need to follow the steps below Press and hold the BOOT(In the middle of the trackball, press down) button (without releasing it), then press the RST button, then release the RST button, and finally release the BOOT(In the middle of the trackball, press down) button Click the upload button in the IDE and wait for the upload to complete Press the RST button to exit the download mode Product Display Product Pin Diagram Quick Start The board uses USB as the JTAG upload port.

When printing serial port information on USB, CDC_ON_BOOT configuration needs to be turned on. If the port cannot be found when uploading the program or the USB has been used for other functions, the port does not appear. Please enter the upload mode manually. Press and hold the BOOT button when the power is off, the button is located behind the RST button. When the USB is connected, first press and hold the BOOT button, then click reset and then release the BOOT button For more product details and tutorials, please refer to
Github: github. com/Xinyuan LilyGO/T Track Shipping List 1 * T-Track 2 * pin 13 pin) 1 X Power cable ( 2pin PH 1.25 )
