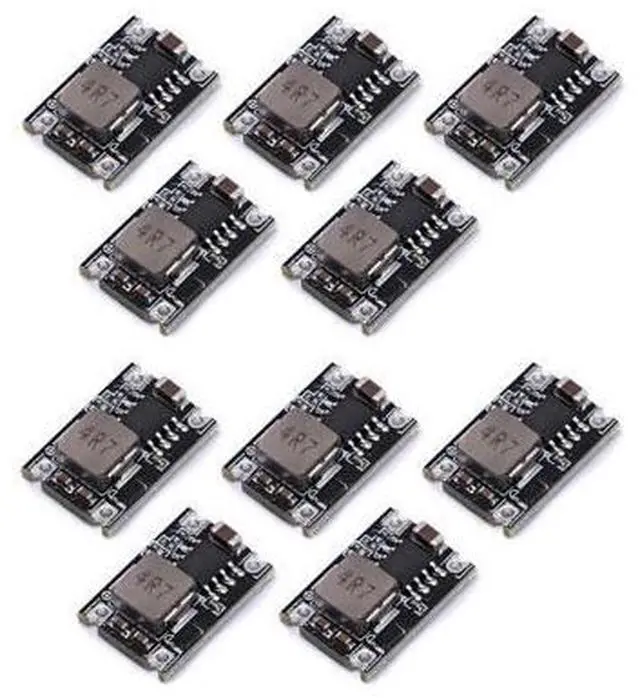

WISDUM 3A Mini DC-DC Buck Step Down Converter Board Module 5V-30V to 5V DC DC Voltage Regulator PCB Board Power Buck Module 10pcs
- Input Voltage:4V~30V(Input must be greater than output) Recommended within 28V
- Output voltage: 5V
- Output current: 3A (maximum peak 4A) without heat dissipation within 2A
- Conversion efficiency: 96% (maximum)
- Output ripple: <30mA
- Output accuracy: ±0.1V
- No-load current:1mA
- Operating Temperature:-20°C~+85°C
- Operating Humidity:20%~90%
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Input Voltage: 4V~30V (Input must be greater than output) Recommended within 28V
Output voltage: 5V
Output current: 3A (maximum peak 4A) without heat dissipation within 2A
Conversion efficiency: 96% (maximum)
Output ripple: <30mA
Output accuracy: ± 0.1V
No-load current: 1mA
Operating Temperature: -20°C~+85°C
Operating Humidity: 20%~90%
Output voltage: 5V
Output current: 3A (maximum peak 4A) without heat dissipation within 2A
Conversion efficiency: 96% (maximum)
Output ripple: <30mA
Output accuracy: ± 0.1V
No-load current: 1mA
Operating Temperature: -20°C~+85°C
Operating Humidity: 20%~90%
