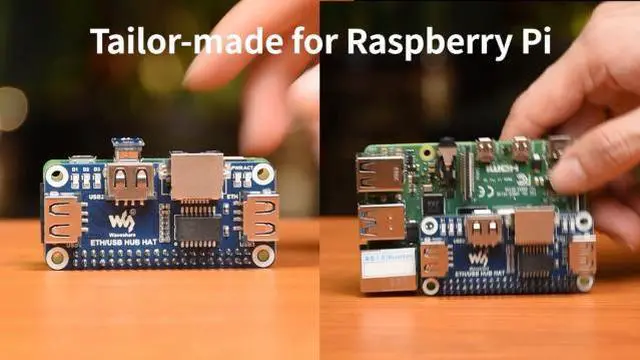

Ethernet/USB HUB HAT Expansion Board for Raspberry Pi 5/4B/3B+/3B/2B/Zero/Pi Zero W/Pi Zero 2W,with RJ45 10/100M Ethernet Port (Based on RTL8152B Chip) and Three USB Ports,Compatible with USB2.0/1.1

Ethernet / USB HUB HAT for Raspberry Pi, 1x RJ45 Ethernet Port, 3x USB Ports. Overview This Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection. It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH/Pi Zero 2 W/ Zero 2 WH. Features 3x USB ports, compatible with USB 2.0 / 1.1, 1x RJ45 10/100M port, based on the RTL8152B Ethernet chip, Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB port What's on Board 1.

Raspberry Pi GPIO interface: for connecting Raspberry Pi 2.
USB extended ports: USB1~USB3 3.
RJ45 port: 10/100M Ethernet interface 4.
USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB port Raspberry Pi Zero / Zero W /
Zero WH: connected via Micro USB connector (check packing list) Raspberry Pi B+ / 2B / 3B / 3B+ /4B: connected via Micro USB cable (check packing list) 5.
TS8121A: Ethernet wave filter 6.
RTL8152B: 10/100M Ethernet chip 7.
FE 1.1S: USB HUB chip 8.
LED indicators:
PWR: power indicator
ACT: Ethernet indicator
D1~D3: dedicated indicator for USB1~USB3 respectively

Specifications

Operating voltage: 5V
Dimension: 65mm x 30mm
Mounting hole size: 3.0 mm Online Development Resources /User
Manuall: //bit. ly/3UANKH5 Package Conten 1. ETH/USB HUB HAT x1 2. Micro USB connector x1 3. Micro USB cable x1 4. RPi screws pack (2pcs) x1
