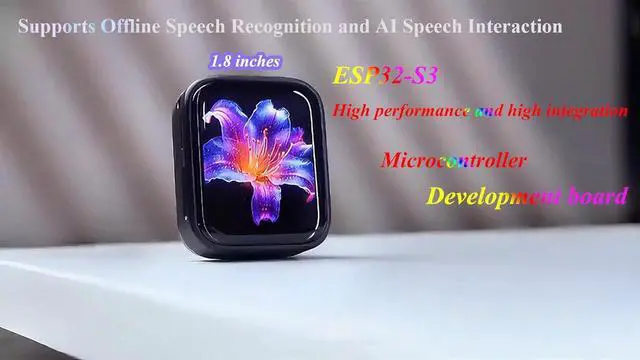

ESP32-S3 1.8inch AMOLED Touch Display Development Board, 32-bit LX7 Dual-Core Processor, 368×448 Pixels, Onboard Audio Codec, Support Offline Speech Recognition and AI Speech Interaction
Limited time offer, ends 07/19 By GGnix
- Powerful Processor: Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Support 2.4 GHz WiFi (802.11 b/g/n) and B LE 5 (LE) with onboard antenna, to meet the networking needs of IoT devices.
- AMOLED Touch Display: Onboard 1.8inch AMOLED capacitive touch display for clear color picture display, 368 x 448 resolution, 16.7M color. Compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image.
- Driver and Touch: SH8601 driver chip (controls screen display through QSPI interface, saving pin resources). FT3168 capacitive touch chip (achieves precise multi-touch through I2C interface).
- Multifunctional Sensor: Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
- Power Su
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Powerful Processor: Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Support 2.4 GHz WiFi ( 802.11 b/g/n) and B LE 5 (LE) with onboard antenna, to meet the networking needs of IoT devices.
^^AMOLED Touch Display: Onboard 1.8 inch AMOLED capacitive touch display for clear color picture display, 368 x 448 resolution, 16.7M color. Compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image.
^^Driver and Touch: SH8601 driver chip (controls screen display through QSPI interface, saving pin resources). FT3168 capacitive touch chip (achieves precise multi-touch through I2C interface).
^^Multifunctional Sensor: Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. ^^Power Su
^^AMOLED Touch Display: Onboard 1.8 inch AMOLED capacitive touch display for clear color picture display, 368 x 448 resolution, 16.7M color. Compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image.
^^Driver and Touch: SH8601 driver chip (controls screen display through QSPI interface, saving pin resources). FT3168 capacitive touch chip (achieves precise multi-touch through I2C interface).
^^Multifunctional Sensor: Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. ^^Power Su
