waveshare Digital LTR390-UV Ultraviolet Sensor (C), Direct UV Index Value Output, I2C Bus 3.3V/5V,Compatible with Raspberry Pi/forArduino/STM32
Limited time offer, ends 05/29 By Torpedo Nova

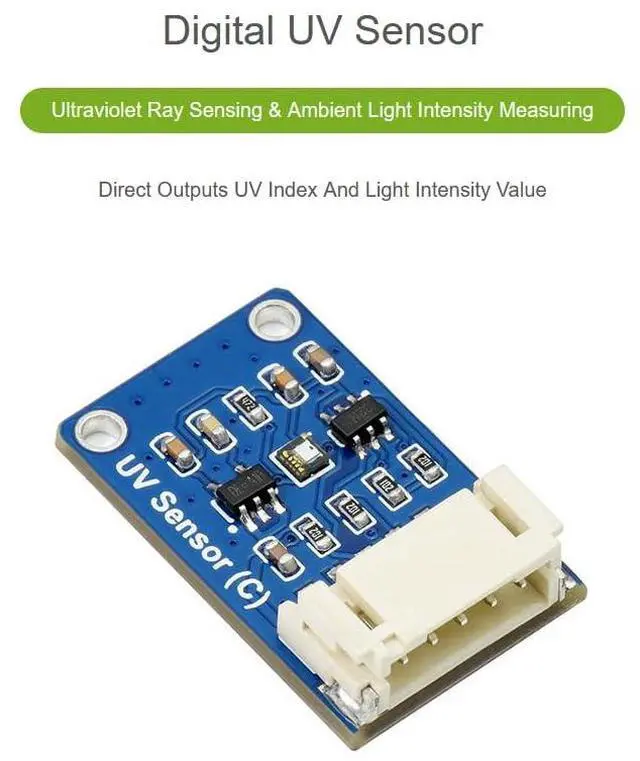

- The UV Sensor (C) is an I2C digital UV sensor module which incorporates LTR390-UV-01, designed for measuring ultraviolet ray as well as visible light, and providing light intensity value output.
- With features including sensitive detection, fast response, and small form factor, the UV Sensor (C) integrates the main sensor LTR390-UV-01 on its 27 × 20mm body, allowing easy integration into other devices.

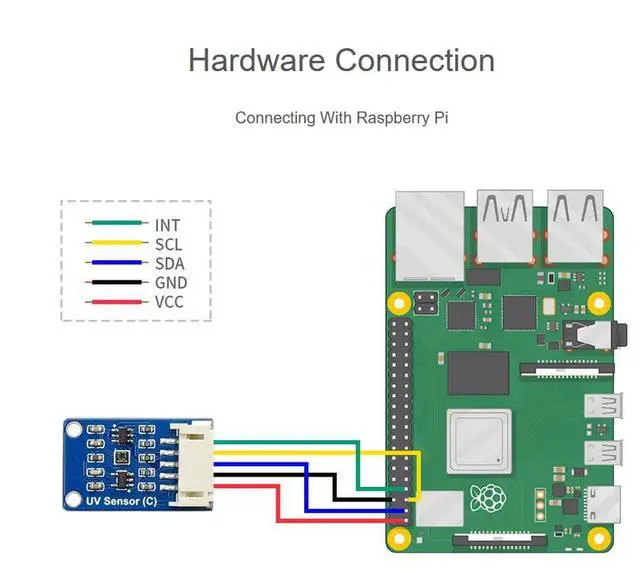

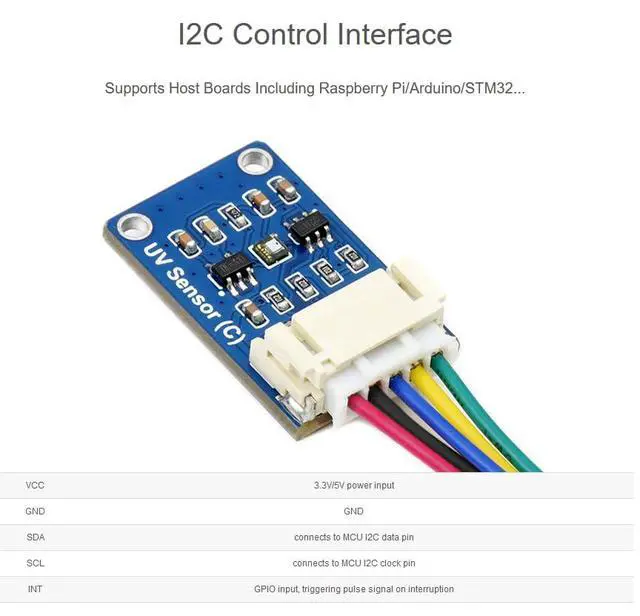

- I2C control interface: supports host boards including Raspberry Pi/Arduino/STM32. Embedded ADC, direct light intensity value output via I2C bus, less noise interference
- Supports interrupt output, programmable upper/lower threshold
- Onboard voltage translator, compatible with 3.3V/5V operating voltages
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview The UV Sensor (C) is an I2C digital UV sensor module which incorporates LTR390-UV-01, designed for measuring ultraviolet ray as well as visible light, and providing light intensity value output. With features including sensitive detection, fast response, and small form factor, the UV Sensor (C) integrates the main sensor LTR390-UV-01 on its 27 × 20mm body, allowing easy integration into other devices. Features Incorporates LTR390-UV-01, for measuring ultraviolet ray and visible light Embedded ADC, direct light intensity value output via I2C bus, less noise interference
I2C control interface: supports host boards including Raspberry Pi/Arduino/STM32 Supports interrupt output, programmable upper/lower threshold Onboard voltage translator, compatible with 3.3V /5V operating voltages Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Response Spectrum: 280 - 430nm
Communication bus: I2C
(constant address: 0x53)
Operating voltage: 3.3V /5V

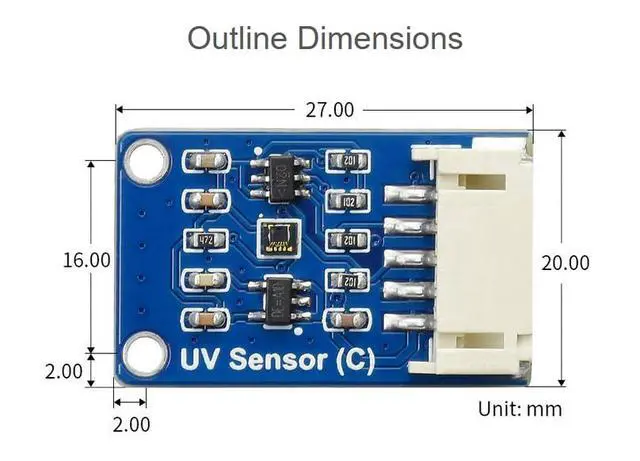

Dimensions: 27 × 20mm
Mounting hole size: 2.0 mm
Online Development Resources: //bit. ly/45C8raf Package Content UV Sensor (C) x1 PH 2.0 5PIN wire x1
I2C control interface: supports host boards including Raspberry Pi/Arduino/STM32 Supports interrupt output, programmable upper/lower threshold Onboard voltage translator, compatible with 3.3V /5V operating voltages Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
Sensor: LTR390-UV-01Response Spectrum: 280 - 430nm
Communication bus: I2C
(constant address: 0x53)
Operating voltage: 3.3V /5V
Dimensions: 27 × 20mm
Mounting hole size: 2.0 mm
Online Development Resources: //bit. ly/45C8raf Package Content UV Sensor (C) x1 PH 2.0 5PIN wire x1
