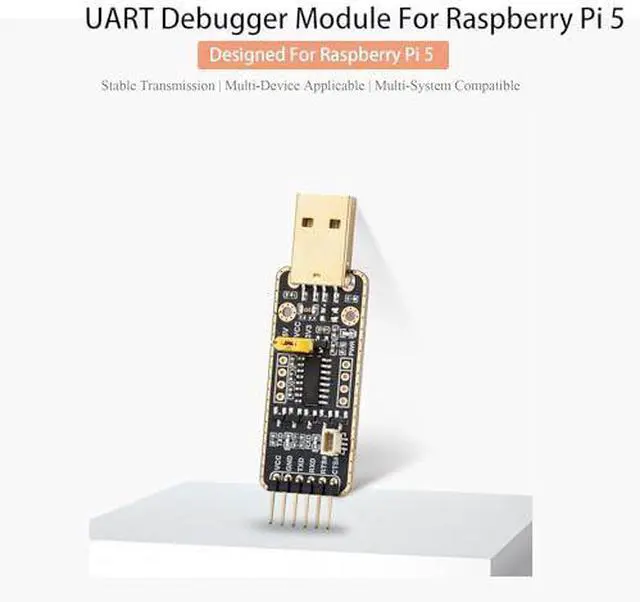

    USB to UART Debugger Module for Raspberry Pi 5, Type-A Port Onboard UART Connector, Pi5 UART Debugging for Mac Linux Android Windows 7/8/8.1/10/11, High Baud Rate Transmission

    Limited time offer, ends 07/19 By GGnix

    Be the first to review this product...
    • USB To UART Debugger Module for Raspberry Pi 5, Type-A Port, Compatible with popular systems like Win7/8/8.1/10/11, Mac, Linux, Android,etc.
    • Pi5 UART debugging suitable for Pi 5, Supports Multiple Connection Methods: 1. Connect to PI5 UART Debug Connector via SH1.0 3PIN cable. 2. Connect onboard 6PIN header to PI5 GPIO UART Interface via 6PIN cable. 3. Connect onboard 6PIN header to PI5 UART Debug Connector via SH1.0 to 3PIN cable.
    • Onboard self-recovery fuse and Transient Voltage Suppressor, anti-overcurrent and anti-overvoltage, anti-surge, anti-static, improves shock proof performance, stable and safe communication performance
    • Onboard IO protection circuits, anti-surge, anti-static, stable and safe communication performance. Onboard 3.3V and 5V TTL level switch pins for selecting TTL communication level.
    • Supports 3.3V/5V output (the module is powered by USB, and the onboard jumper should be shorted to 3.3V or 5V accordingly).
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    USB To UART Debugger Module for Raspberry Pi 5, Type-A Port, Compatible with popular systems like Win7/8/ 8.1 /10/11, Mac, Linux, Android, etc. ^^Pi5 UART debugging suitable for Pi 5, Supports Multiple
    Connection Methods: 1. Connect to PI5 UART Debug Connector via SH 1.0 3PIN cable. 2. Connect onboard 6PIN header to PI5 GPIO UART Interface via 6PIN cable. 3. Connect onboard 6PIN header to PI5 UART Debug Connector via SH 1.0 to 3PIN cable. ^^Onboard self-recovery fuse and Transient Voltage Suppressor, anti-overcurrent and anti-overvoltage, anti-surge, anti-static, improves shock proof performance, stable and safe communication performance^^Onboard IO protection circuits, anti-surge, anti-static, stable and safe communication performance. Onboard 3.3V and 5V TTL level switch pins for selecting TTL communication level. ^^Supports 3.3V /5V output (the module is powered by USB, and the onboard jumper should be shorted to 3.3V or 5V accordingly).
