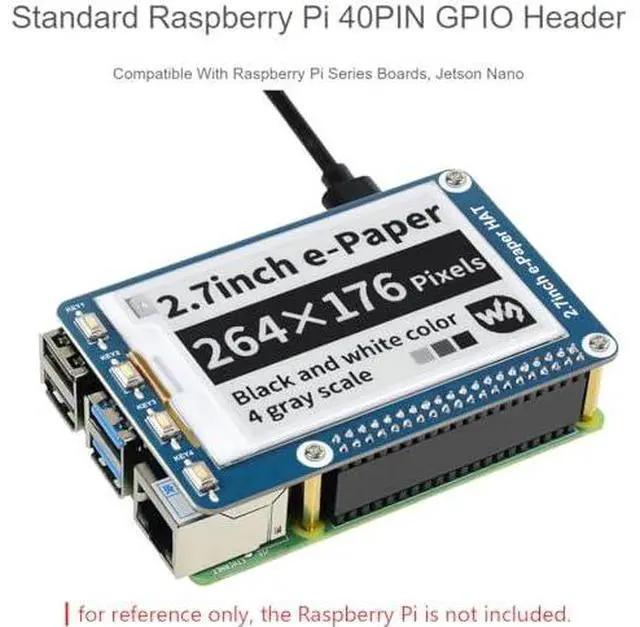

2.7inch E-Ink Display HAT Compatible with Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2 W/Pico/Pico W/Pico 2/Pico 2W/ Jetson Nano, 264x176 Pixel, Black,White Two-Color E-Paper Screen LCD SPI Interface
Limited time offer, ends 07/19 By GGnix
- 2.7inch E-Ink display HAT, 264x176 resolution. with embedded controller, communicating via SPI interface. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
- Resolution: 264 × 176 Display color: black, white Grey level: 2 Full refresh time: 6s Refresh power: 24mW(typ.) Standby power: <0.017mW Viewing angle: >170°
- Operating voltage: 3.3V/5V. Interface: 3-wire SPI, 4-wire SPI. Outline dimension: 85mm × 56mm. Display size: 57.288mm × 38.192mm. Dot pitch: 0.217 × 0.217
- No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing. Onboard 4x Keys.Onboard voltage translator, compatible with 3.3V/5V MCUs
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Comes with development resources and ma
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
2.7 inch E-Ink display HAT, 264x176 resolution. with embedded controller, communicating via SPI interface. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
^^Resolution: 264 × 176
Display color: black, white
Grey level: 2
Full refresh time: 6s
Refresh power: 24mW(typ. )
Standby power: <0.017mW
Viewing angle: > 170°^^Operating voltage: 3.3V /5V.
Interface: 3-wire SPI, 4-wire SPI.
Outline dimension: 85mm × 56mm.
Display size: 57.288 mm × 38.192 mm.
Dot pitch: 0.217 × 0.217 ^^No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing. Onboard 4x Keys. Onboard voltage translator, compatible with 3.3V /5V MCUs^^Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Comes with development resources and ma
^^Resolution: 264 × 176
Display color: black, white
Grey level: 2
Full refresh time: 6s
Refresh power: 24mW(typ. )
Standby power: <0.017mW
Viewing angle: > 170°^^Operating voltage: 3.3V /5V.
Interface: 3-wire SPI, 4-wire SPI.
Outline dimension: 85mm × 56mm.
Display size: 57.288 mm × 38.192 mm.
Dot pitch: 0.217 × 0.217 ^^No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing. Onboard 4x Keys. Onboard voltage translator, compatible with 3.3V /5V MCUs^^Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Comes with development resources and ma
