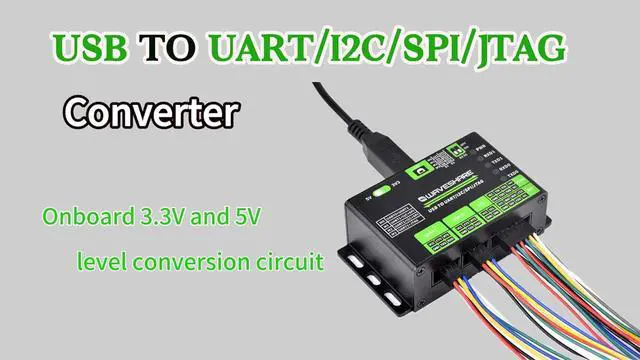

USB Multi-Converter (Up to 3-Ch) - UART/I2C/SPI/JTAG, 3.3/5V - Aluminum Case, Compatible Win7/10/11, Linux
- USB To UART/I2C/SPI/JTAG Converter, easy to control and debug various interface devices via PC, Supports USB to 2-ch UART, or USB to 1-ch UART + 1-ch I2C + 1-ch SPI, or USB to 1-ch UART + 1-ch JTAG
- Supports 2-ch high-speed UART interfaces, up to 9Mbps baud rate, with CTS and RTS hardware automatic flow control. Supports 1-ch I2C interface, for easy operating EEPROM through the host computer or programming I2C devices such as OLED and sensor.
- Supports 1-ch SPI interface, with 2x chip select signal pins, capable of controlling 2-ch SPI slave devices at different times. Supports 1-ch JTAG interface, can be used with OpenOCD for debugging and testing (Due to the limited testing of chips and software functions, users need to evaluate and test this function on their own)
- Onboard resettable fuse and ESD protection circuit, provides over-current/over-voltage proof, safe and stable communication. Supports Windows 11 / 10 / 8.1 / 8 / 7 , Linux, etc.
- Application Environments: suitable for col
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
USB To UART/I2C/SPI/JTAG Converter, easy to control and debug various interface devices via PC, Supports USB to 2-ch UART, or USB to 1-ch UART + 1-ch I2C + 1-ch SPI, or USB to 1-ch UART + 1-ch JTAG^^Supports 2-ch high-speed UART interfaces, up to 9Mbps baud rate, with CTS and RTS hardware automatic flow control. Supports 1-ch I2C interface, for easy operating EEPROM through the host computer or programming I2C devices such as OLED and sensor. ^^Supports 1-ch SPI interface, with 2x chip select signal pins, capable of controlling 2-ch SPI slave devices at different times.
Supports 1-ch JTAG interface, can be used with OpenOCD for debugging and testing (Due to the limited testing of chips and software functions, users need to evaluate and test this function on their own)^^Onboard resettable fuse and ESD protection circuit, provides over-current/over-voltage proof, safe and stable communication. Supports Windows 11 / 10 / 8.1 / 8 / 7, Linux, etc.
^^Application Environments: suitable for col
Supports 1-ch JTAG interface, can be used with OpenOCD for debugging and testing (Due to the limited testing of chips and software functions, users need to evaluate and test this function on their own)^^Onboard resettable fuse and ESD protection circuit, provides over-current/over-voltage proof, safe and stable communication. Supports Windows 11 / 10 / 8.1 / 8 / 7, Linux, etc.
^^Application Environments: suitable for col
