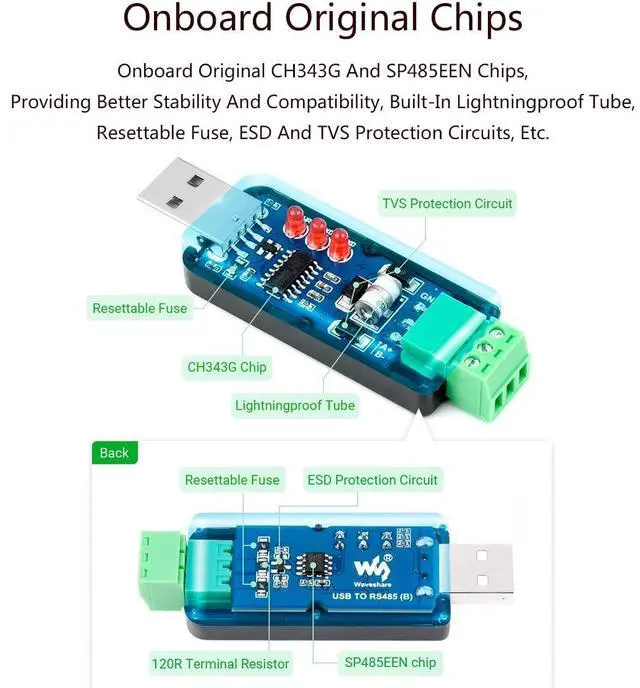

Industrial USB TO RS485 Converter Bidirectional Adapter, Original CH343G Chip Onboard TVS/Resettable Fuse/Protection Diodes,300bps-3MbpsBaudrateSupport Linux,Android,WinCE,Win10 / 8.1 / 8 / 7 / XP

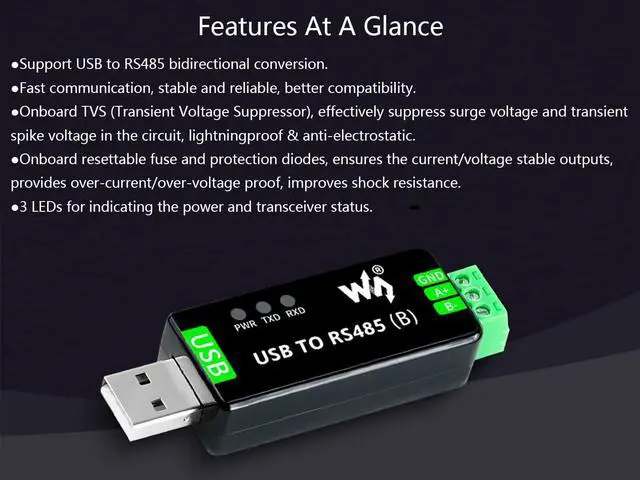

Features Support USB to RS485 bidirectional conversion Fast communication, stable and reliable, better compatibility Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance 3 LEDs for indicating the power and transceiver status Support Multi systemLinux, Android, WinCE, Win11/10/ 8.1 /8/7/XP, etc.

Specifications

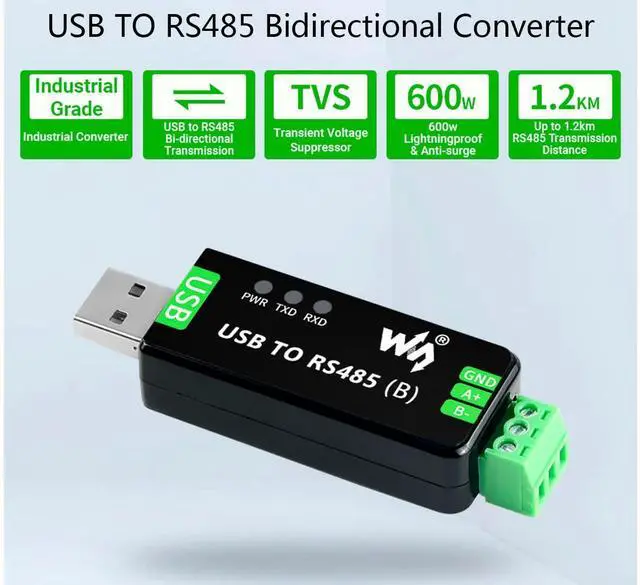

PRODUCT TYPE: Industrial Grade USB to RS485 converter
Host port: USB
Device port: RS485
Baudrate: 300bps ~ 3Mbps
USB Operating voltage: 5V
Connector: USB-A
Protection: 200mA self-recovery fuse, ESD protection
Transmission distance: About 5m
RS485 Connector: Screw terminal
Pins: A+, B-, GND
Direction control: Hardware automatic control
Protection: 600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)

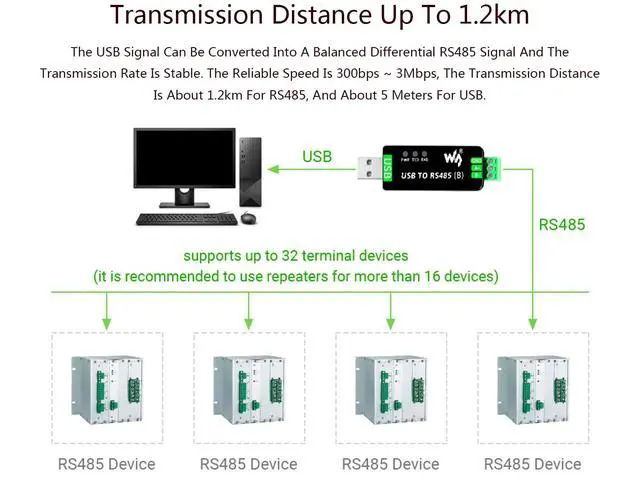

Transmission distance: About 1.2 km (low rate)
Transmission mode: Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) LED indicators

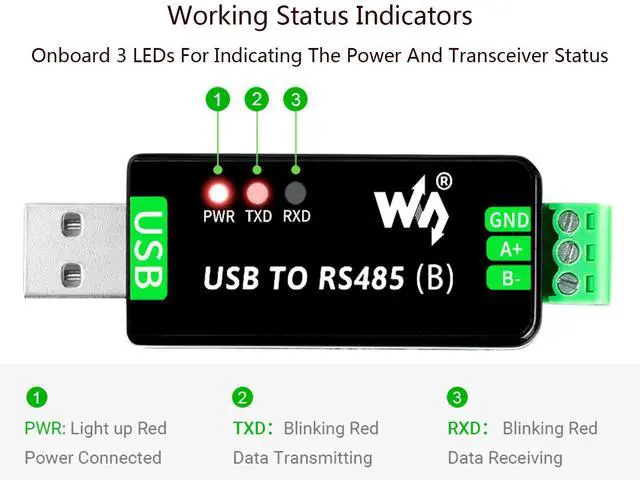

PWR: Red power indicator, light up when there is USB connection and voltage is detected
TXD: Red TX indicator, light up when the USB port sends data
RXD: Red RX indicator, light up when the device ports send data back Operating environment
Temperature: -15 ~ 70
Humidity: 5%RH ~ 95%RH

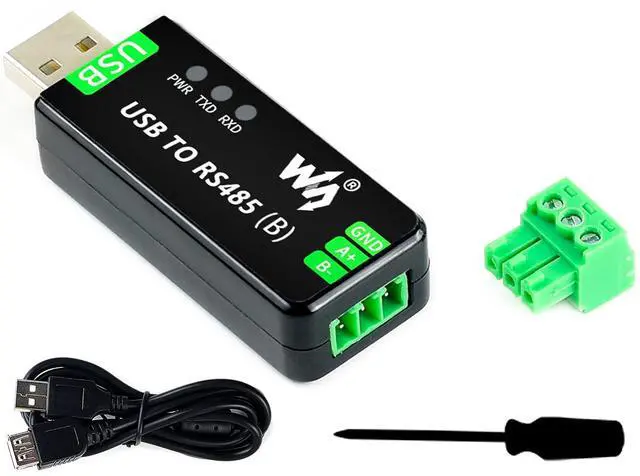

Online Document/Development Resource: waveshare. com/wiki/USB_TO_RS485_ (B)? Amazon Package Content USB TO RS485 (B) x1 USB-A male to female cable x1 Screwdriver x1
