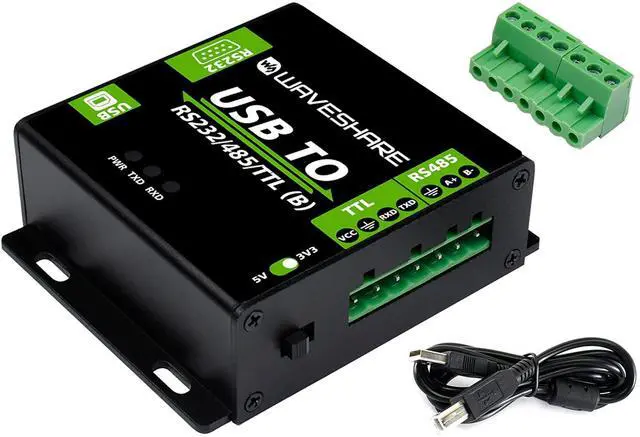

Industrial Grade Isolated USB Converter, USB TO RS232/485/TTL Converter CH343G Chip, Multi-Protocol/Multi-Type Conversion Multiple Protection, Support Mac, Linux, Android, Windows 11/10/8.1/8/7
Limited time offer, ends 08/02 By TechMax Depot

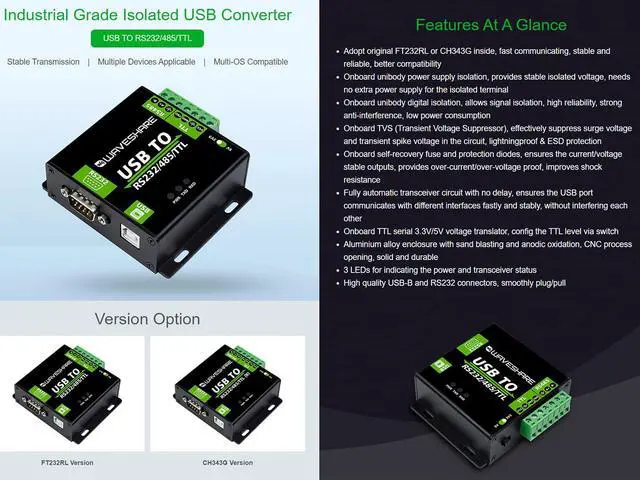

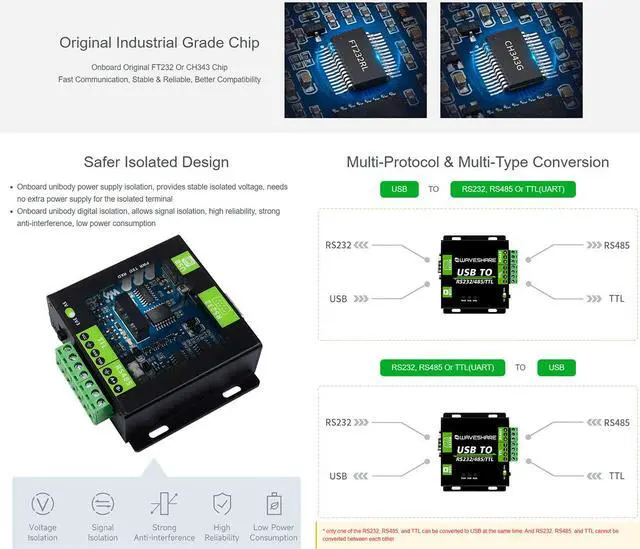

- Original Industrial Grade Chip---Adopt original CH343G inside, fast communicating, stable and reliable, better compatibility. CH343G USB TO RS232/485/TTL Interface Converter, Industrial Isolation. With Aluminium Alloy Enclosure,Solid and durable.; Safer Isolated Design--- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal; Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption.; Multi-protocol & Multi-type Conversion---USB to RS232, RS485 or TTL(UART); RS232, RS485 or TTL(UART) to USB. Note: only one of the RS232, RS485, and TTL can be converted to USB at the same time; And RS232, RS485, and TTL cannot be converted between each other; RS232, RS485 and TTL can be received at the same time but cannot be sent at the same time; RS232, RS485 and TTL cannot be converted to each other, but USB to RS232, RS485 or TTL is supported.; Multiple Protection, Safe And Stable---Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specifications
1.USB Operating voltage: 5V

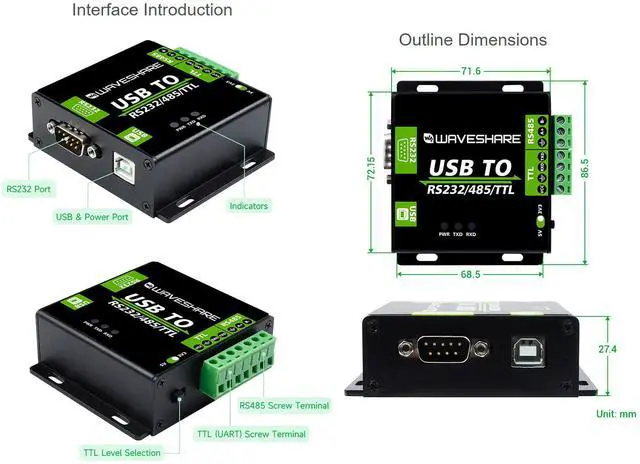

Connector: USB-B
Protection: 200mA self-recovery fuse, isolated output 2.

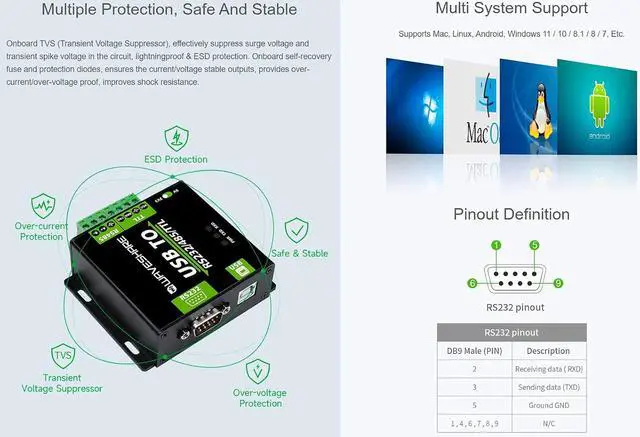

RS232 Connector: DB9 male
Protection: TVS diode, surge protection & ESD protection
Transmission mode: Point-to-point
Baud rate:
CH343G: up to 600000 bps (not full band) 3.
RS485 Connector: Screw terminal
Pins: A+/B-/GND
Direction control: Hardware automatically discriminates and controls the direction of data transmission
Protection: 600W lightningproof and surge-suppress, 15KV ESD protection (reserved 120R balancing resistor solder pads
Transmission mode: Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
Baud rate:
CH343G: up to 2 Mbps (not full band) 4.
TTL (UART) Operating voltage: 3.3V / 5V
Connector: Screw terminal
Pins: TXD, RXD, GND, 5V
Protection: clamp protection diode, over-voltage/negative-voltage proof, shock resistance
Transmission mode: Point-to-point
Baud rate:
CH343G: up to 2 Mbps (not full band) 5.

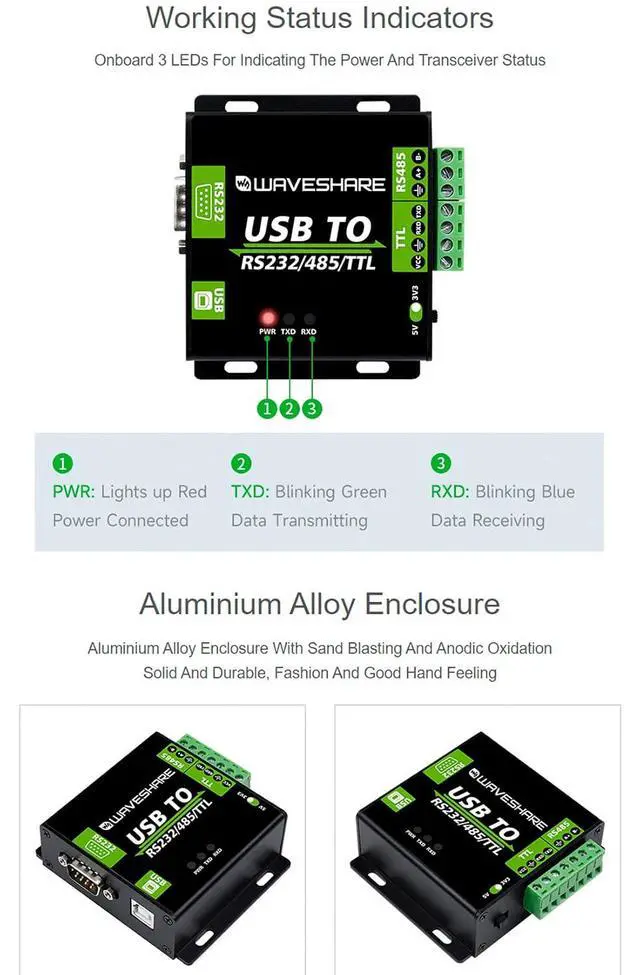

Indicators PWR: Red power indicator, light up when there is USB connection and voltage is detected
TXD: Green TX indicator, light up when the USB port sends data
RXD: Blue RX indicator, light up when the device ports send data back
6.
Operating environment Temperature: -15 ~ 70
Humidity: 5%RH ~ 95%RH How-to-use document/User
Manual: //bit. ly/3WQXB
Jz Package Content USB Converter x1 USB Cable ~ 1.2 m x1
