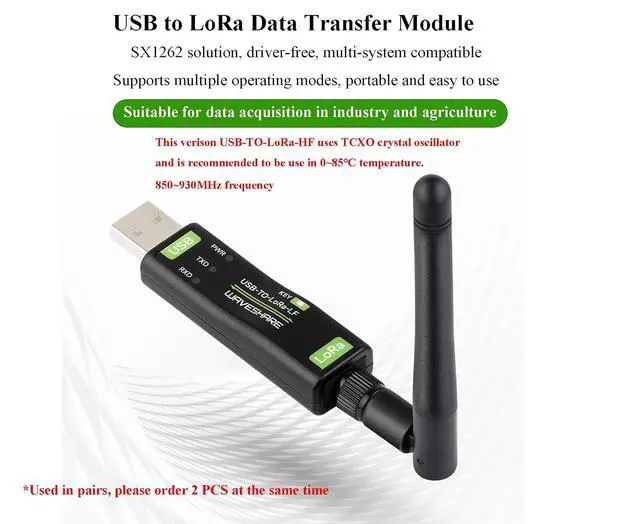

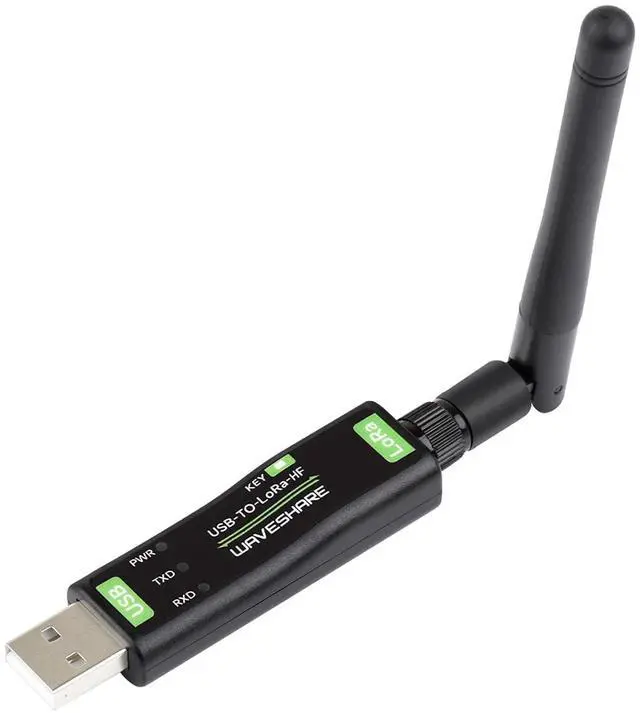

USB to LoRa Data Transfer Module with Antenna Based On SX1262 Driver-Free, Multi-System Compatible, Suitable for Data Acquisition in Industry and Agriculture (TCXO Crystal Oscillator)

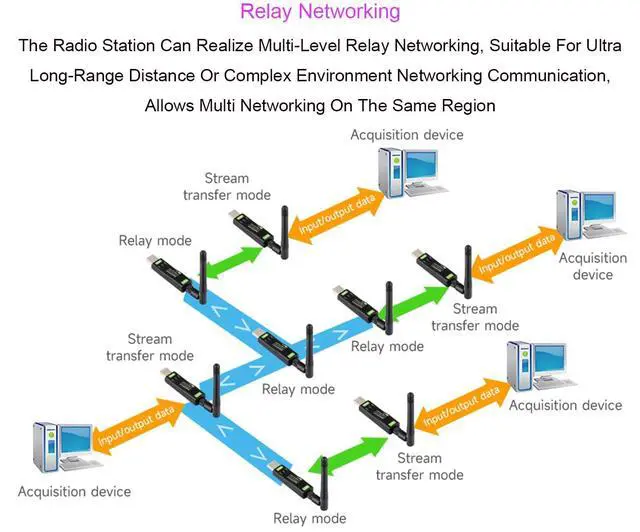

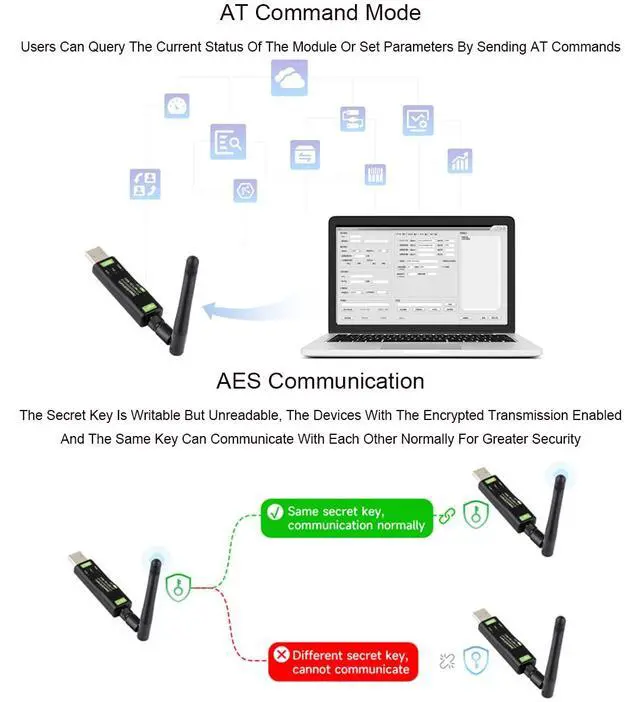

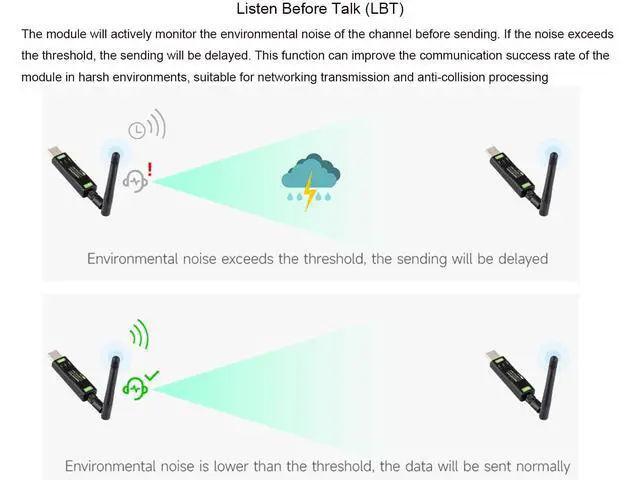

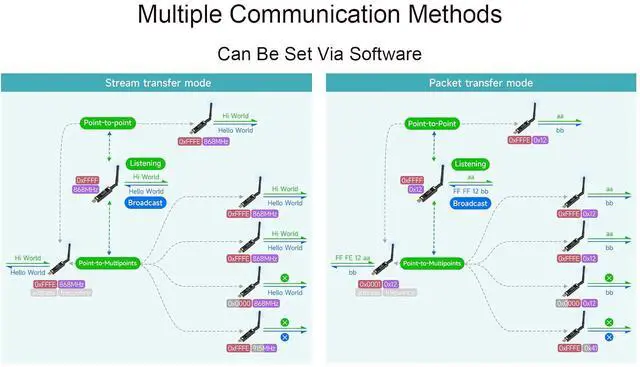

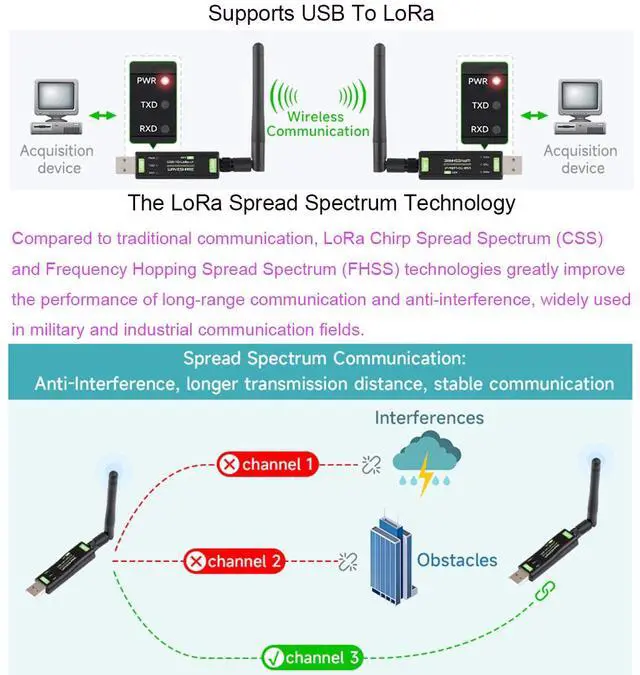

Overview The USB-TO-LoRa-HF is a wireless data transfer unit with USB interfaces based on the SX1262 module. Adopts LoRa Modulate and Demodulate technology, with the advantages of anti-interference and long-distance communication (up to 5KM). Supports point-to-point, point-to-multipoint, relay network, AES, etc. Compact size and easy to install, suitable for the wireless data transmission and device control of industry standard or non-standard user protocol Features Adopts LoRa Modulate and Demodulate technology, anti-interference and long-distance communication Adopts the original SX1262 chip, with -148dBm reception sensitivity and 22dBm emitt power Supports preamble detection, with CRC, automatic packetization, 960 bytes cache functions Supports LBT sending, RSSI output, AT command configuration AES communication to ensure data transmission security Supports multi-level relay networking to increase the wireless communication distance Supports host configuration and firmware upgrade (support firmware customization for batch order) Comes with Online Development Resources and
Manuals: bit.
ly/4bBBHR5

Specifications

Appearance Interfaces: USB Type A SMA-KE female connector: 6dBi omni-directional antenna × 1
Enclosure: ABS case
Dimension: 56.40 × 18.40 × 12.52 mm
Wireless Parameters Frequency Band: 850~930MHz
Signal Modulation: LoRa
Encryption Type: AES128
Emit Power: +22dBm Max
Reception Sensitivity: -148dBm
SERIAL Parameters Baud Rate: 1200 ~ 115200bps
Parity Bit: None, Odd, Even
Data Bit: 8 ~ 9 bits
Environmental Requirement Operating Temperature: TCXO
version: 0 ~ 85
Humidity Range: 5% ~ 95% relative humidity Package Content USB-TO-LoRa-HF x1 Antenna (850~930MHz) x1
