Main image of Stepper Motor HAT Dual Onboard 2-CH HR8825 Motor Driver Chip,Drive Two Stepper Motors Up to 1/32 Microstepping,Apply to 3D Printer, Sculpturing Machine, Mechanical Arm,for Raspberry Pi/ Jetson Nano

Alt view image 2 of 7 - Stepper Motor HAT Dual Onboard 2-CH HR8825 Motor Driver Chip,Drive Two Stepper Motors Up to 1/32 Microstepping,Apply to 3D Printer, Sculpturing Machine, Mechanical Arm,for Raspberry Pi/ Jetson Nano

Alt view image 3 of 7 - Stepper Motor HAT Dual Onboard 2-CH HR8825 Motor Driver Chip,Drive Two Stepper Motors Up to 1/32 Microstepping,Apply to 3D Printer, Sculpturing Machine, Mechanical Arm,for Raspberry Pi/ Jetson Nano

Alt view image 4 of 7 - Stepper Motor HAT Dual Onboard 2-CH HR8825 Motor Driver Chip,Drive Two Stepper Motors Up to 1/32 Microstepping,Apply to 3D Printer, Sculpturing Machine, Mechanical Arm,for Raspberry Pi/ Jetson Nano

Alt view image 5 of 7 - Stepper Motor HAT Dual Onboard 2-CH HR8825 Motor Driver Chip,Drive Two Stepper Motors Up to 1/32 Microstepping,Apply to 3D Printer, Sculpturing Machine, Mechanical Arm,for Raspberry Pi/ Jetson Nano

Alt view image 6 of 7 - Stepper Motor HAT Dual Onboard 2-CH HR8825 Motor Driver Chip,Drive Two Stepper Motors Up to 1/32 Microstepping,Apply to 3D Printer, Sculpturing Machine, Mechanical Arm,for Raspberry Pi/ Jetson Nano

Alt view image 7 of 7 - Stepper Motor HAT Dual Onboard 2-CH HR8825 Motor Driver Chip,Drive Two Stepper Motors Up to 1/32 Microstepping,Apply to 3D Printer, Sculpturing Machine, Mechanical Arm,for Raspberry Pi/ Jetson Nano

Shop All WISDUM Products | Visit TechMax Depot Store

Stepper Motor HAT Dual Onboard 2-CH HR8825 Motor Driver Chip,Drive Two Stepper Motors Up to 1/32 Microstepping,Apply to 3D Printer, Sculpturing Machine, Mechanical Arm,for Raspberry Pi/ Jetson Nano

Be the first to review this product...

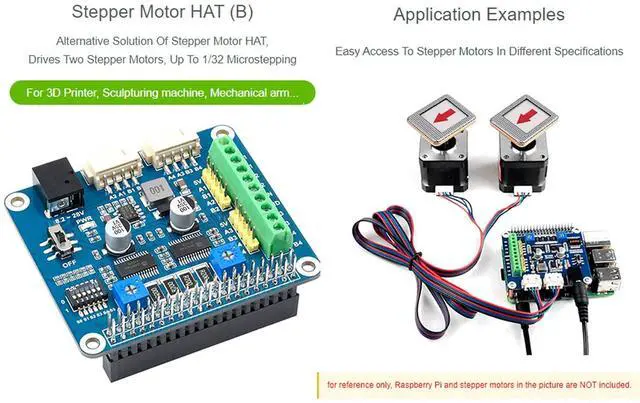

Stepper Motor HAT (B),Onboard dual HR8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano.; 6 available microstepping modes. Configured via the DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step; Adjustable motor drive current via potentiometer, maximum 2.5A current output. Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO). Integrates 5V regulator, allows providing power to Raspberry Pi. Onboard Different Stepper Motor Interfaces:Easy access to stepper motors in different specifications; Motor controller: HR8825. Motor drive voltage: 8.2V~28V. Motor drive current: 2.5A. Logic voltage:3.3V. Dimension: 65mm x 56mm. Mounting hole size: 3.0mm.; Comes with development resources and manual (examples in BCM2835, wiringPi, and python): waveshare.com/wiki/Stepper_Motor_HAT_(B)?Amazon

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

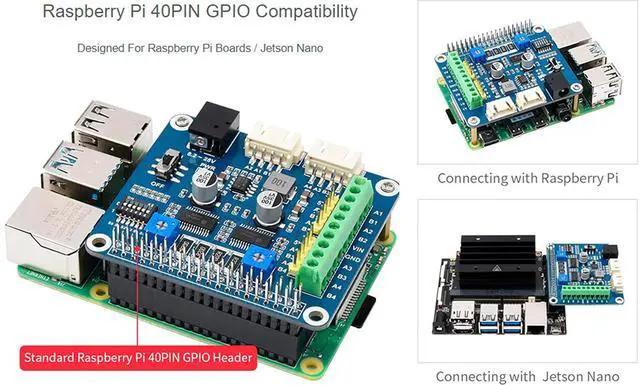

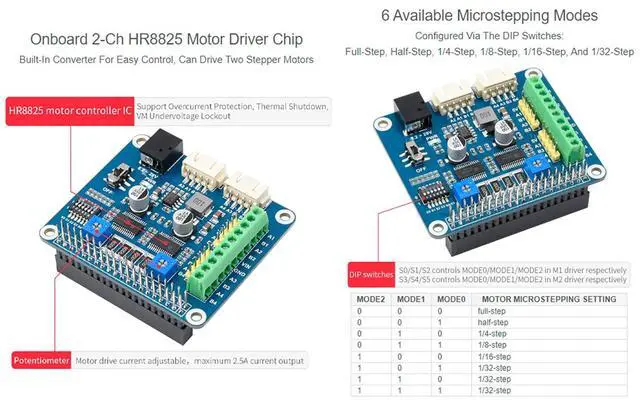

Overview Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Onboard dual HR8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use 6 available microstepping modes, configured with the
DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step Adjustable motor drive current via potentiometer, maximum 2.5A current output

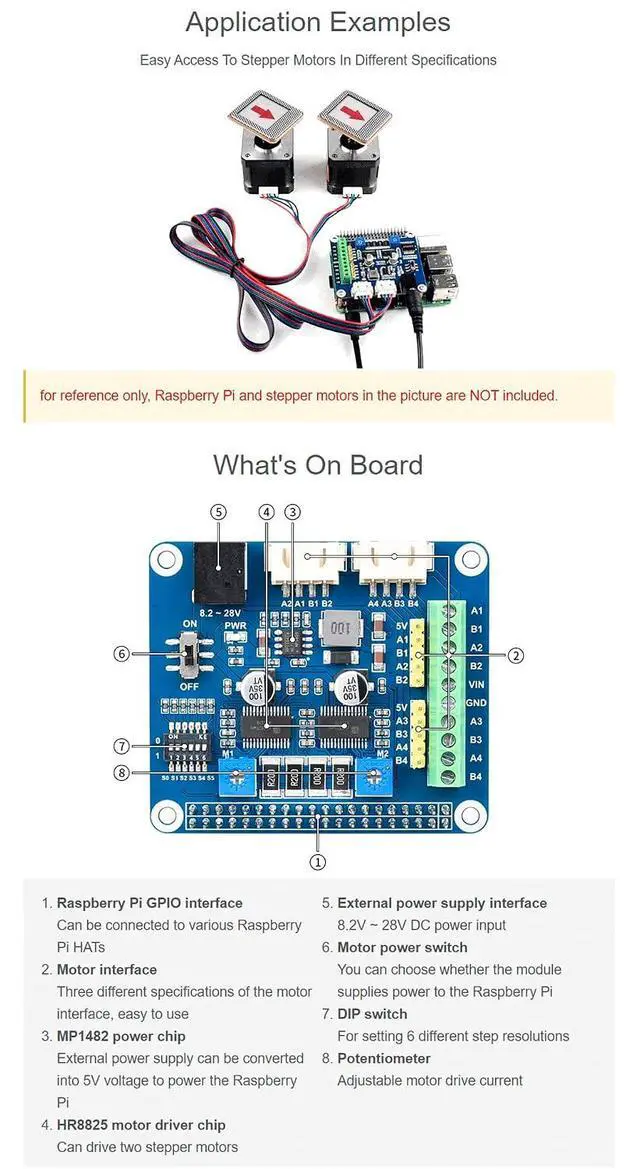

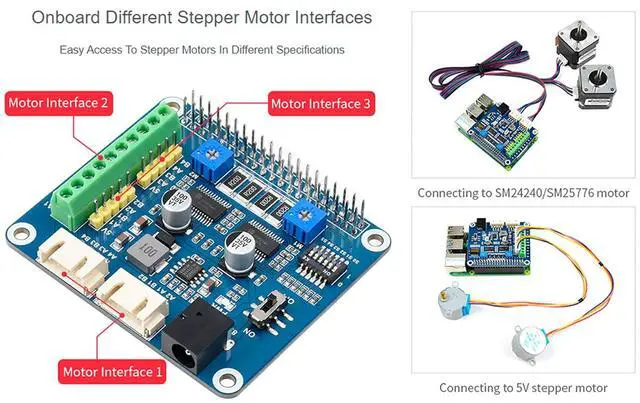

Protection features: Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO) Integrates 5V regulator, allows providing power to Raspberry Pi Onboard multi connector options for stepper motors in different specifications Comes with development resources and manual (examples in BCM2835, wiringPi, and python)

Specifications

Motor controller: HR8825.
Motor drive voltage: 8.2V ~28V.
Motor drive current: 2.5A.
Logic voltage: 3.3V.
Mounting hole size: 3.0 mm.

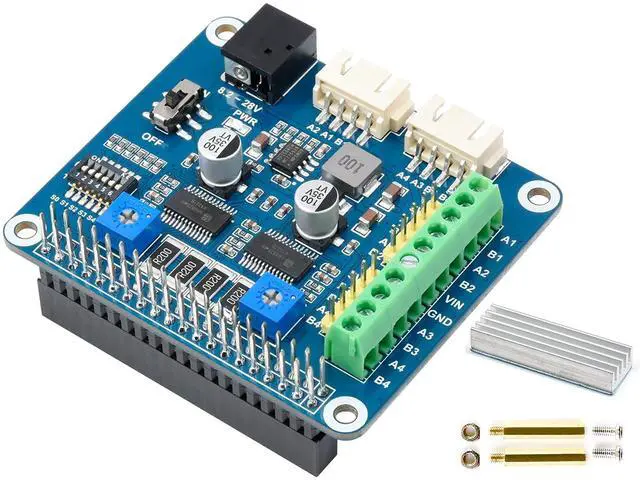

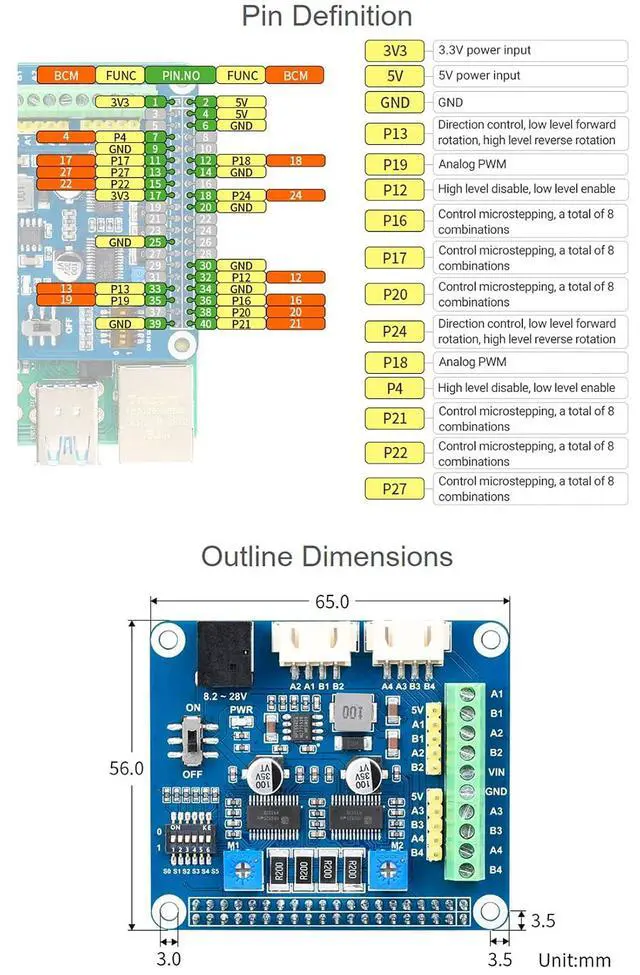

Dimension: 65 x 56mm. Package Content Stepper Motor HAT (B) x1 RPi screws pack (2pcs) x1 Aluminum heatsink x1
