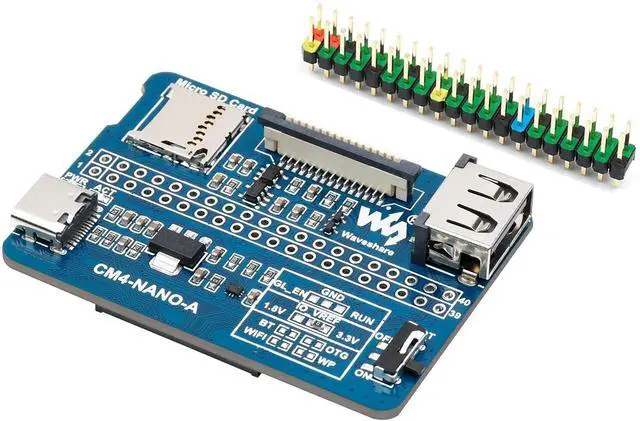

Nano Base Board (A) for Raspberry Pi Compute Module 4 Lite/eMMC,with Raspberry Pi 40PIN GPIO Interface, USB 2.0, MIPI CSI-2 Port

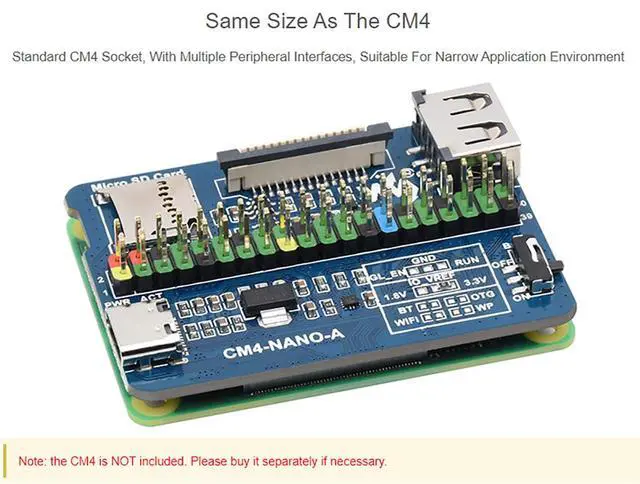

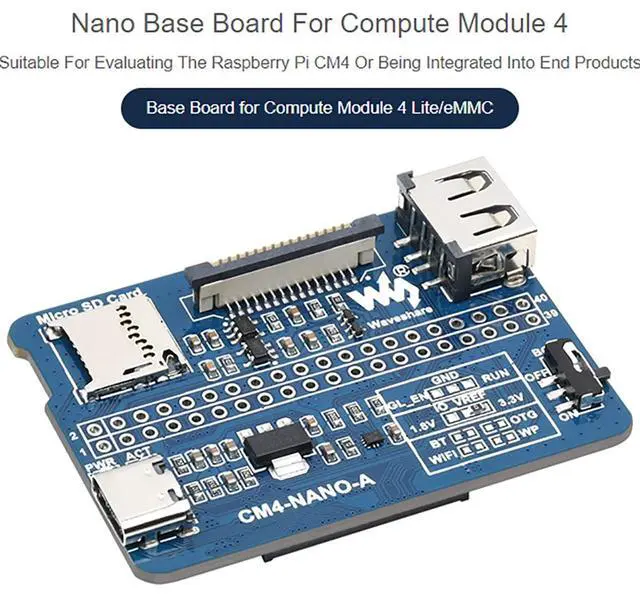

- Base Board for Compute Module 4 Lite/eMMC.Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products; Same Size As The Compute Module 4: Standard CM4 Socket, With Multiple Peripheral Interfaces, Suitable for Narrow Application Environment; Raspberry Pi 40PIN GPIO interface x 1. USB 2.0 Type A interface x 1. MIPI CSI-2 port x 1 (15pin 1.0mm FPC connector).; Storage: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants. Power input: 5V. Dimensions : 55 x 40mm.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview CM4-NANO-A is a 4th generation mini board of Raspberry Pi Compute Module, which is a baseboard of Raspberry Pi Compute Module 4, 5V/ 2.5A USB Type C power supply interface.
Connector: Raspberry Pi 40PIN GPIO interface x 1
USB: USB 2.0 Type A interface x 1
Camera: MIPI CSI-2 port x 1 (15pin 1.0 mm FPC connector)
Storage: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
Power input: 5V

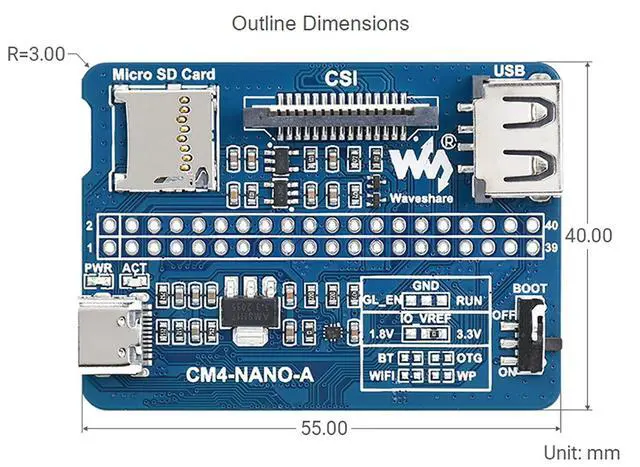

Dimensions: 55 x 40mm Precautions for use 1. DO NOT plug and unplug any device other than USB while it is powered on 2. The Type C interface can be used as a power supply or as a USB SLAVE interface to burn the image. 3. In order to ensure the normal power supply of CM4, please do not connect other devices when using the Type C interface to burn the image. 4. When CM4 is in normal use, it needs to provide 5V 2A power supply for CM4. Otherwise, there may be problems such as shutdown, frequency reduction, and so on. 5. Since the module does not have any protection circuit, please do not short-circuit the power supply 6. USB 2.0 is disabled by default, if you want to open it, you need to add the line dtoverlay=dwc2, dr_mode=host to the config. txt file Package Content CM4-NANO-A x1 2*20PIN color-coded straight pinheader x1
Specifications
CM4 socket: suitable for all variants of Compute Module 4Connector: Raspberry Pi 40PIN GPIO interface x 1
USB: USB 2.0 Type A interface x 1
Camera: MIPI CSI-2 port x 1 (15pin 1.0 mm FPC connector)
Storage: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
Power input: 5V
Dimensions: 55 x 40mm Precautions for use 1. DO NOT plug and unplug any device other than USB while it is powered on 2. The Type C interface can be used as a power supply or as a USB SLAVE interface to burn the image. 3. In order to ensure the normal power supply of CM4, please do not connect other devices when using the Type C interface to burn the image. 4. When CM4 is in normal use, it needs to provide 5V 2A power supply for CM4. Otherwise, there may be problems such as shutdown, frequency reduction, and so on. 5. Since the module does not have any protection circuit, please do not short-circuit the power supply 6. USB 2.0 is disabled by default, if you want to open it, you need to add the line dtoverlay=dwc2, dr_mode=host to the config. txt file Package Content CM4-NANO-A x1 2*20PIN color-coded straight pinheader x1
