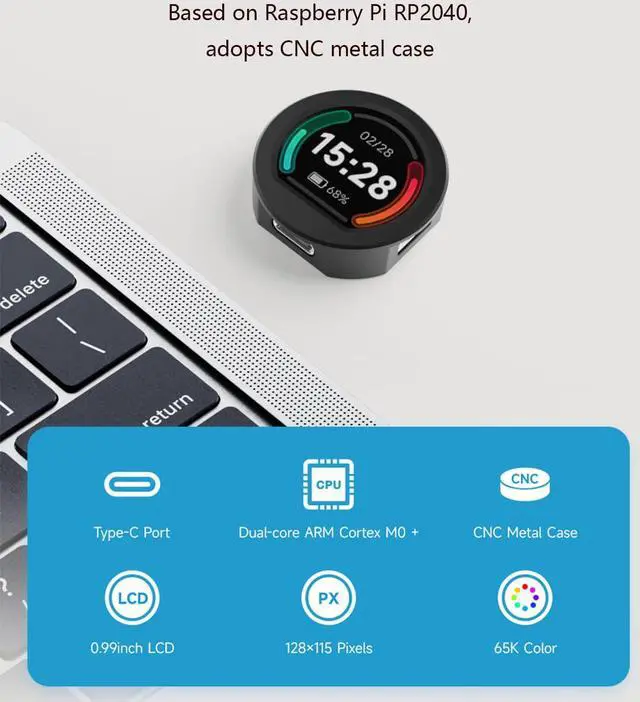

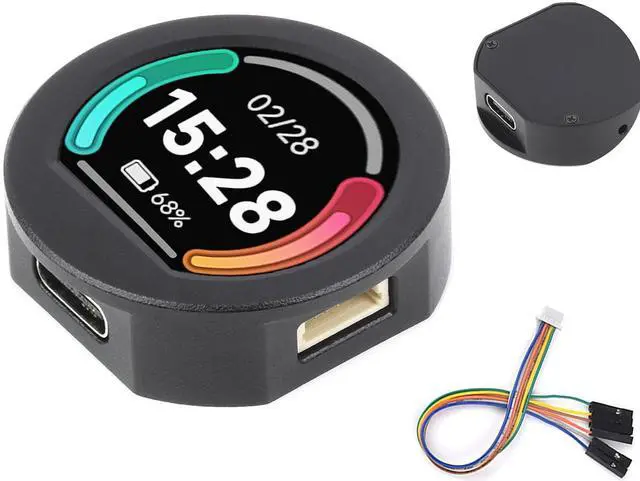

RP2040 MCU Microcontroller Development Board with 0.99inch Round LCD 128×115 Pixels IPS LCD Display, Accelerometer and Gyroscope Sensor, Type-C Interface, Adopts CNC Metal Case

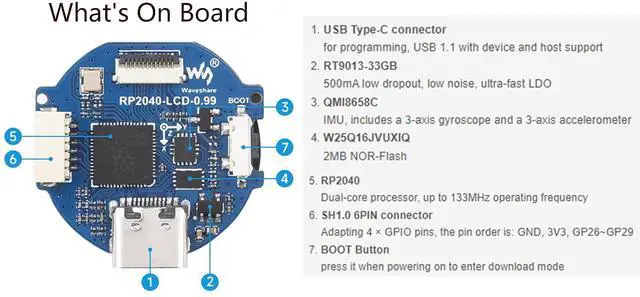

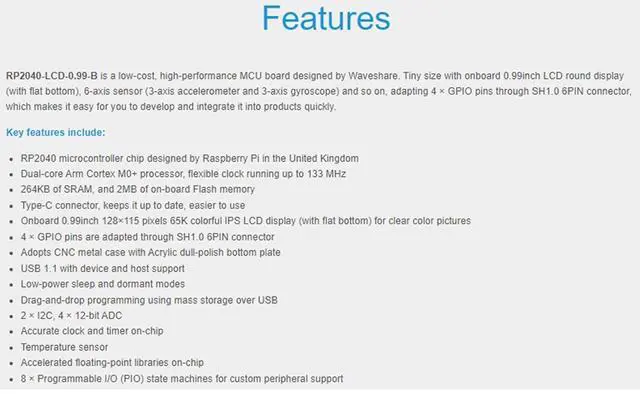

Overview RP2040-LCD- 0.99 -B is based on Raspberry Pi RP2040, Onboard 0.99 inch LCD round display (with flat bottom), 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, adapting 4 × GPIO pins through SH 1.0 6PIN connector, which makes it easy for you to develop and integrate it into products quickly. Features 1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz 3. 264KB of SRAM, and 2MB of on-board Flash memory
4. Type-C connector, keeps it up to date, easier to use
5. Onboard 0.99 inch 128×115 pixels 65K colorful IPS LCD display (with flat bottom) for clear color pictures 6. 4 × GPIO pins are adapted through SH 1.0 6PIN connector

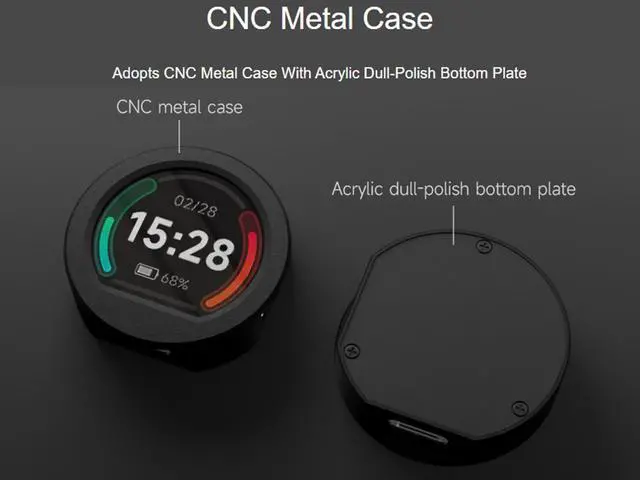

7. Adopts CNC metal case with Acrylic dull-polish bottom plate 8. USB 1.1 with device and host support
9. Low-power sleep and dormant modes
10. Drag-and-drop programming using mass storage over USB 11. 2 × I2C, 4 × 12-bit ADC
12. Accurate clock and timer on-chip
13. Temperature sensor
14. Accelerated floating-point libraries on-chip 15. 8 × Programmable I/O (PIO) state machines for custom peripheral support
LCD Parameters Controller: GC9107
Resolution: 128 (H) RGB x 115 (V)
Communication Interface: SPI
Display Panel: IPS
Display Dimensions: 33mm
Pixel Size: 0.19H x 0.19V mm Provide Online Development Resources /User
Manual: bit. ly/3OtugTb Package Content RP2040-LCD- 0.99 -B x1 SH 1.0 6PIN cable x1
