NoirVogel TTC Dustproof Gold Micro Mouse Switch (4Pcs-Dustproof Gold), 0.74N, 80 Million Clicks for Gaming Mouse
- Applied ForceThe 0.74N is feels slightly softer, The relative strength is moderate, the intensity is very uniform, the small crisp feeling, the short and medium stroke, the rebound is compact, very rapid, the rebound lag is very small.
- Portable size:length is 12.8mm/0.5inch, width is 10mm/0.39inch, thickness is 5.8mm/0.23inch.
- High Life Span:Over 80 Million clicks.

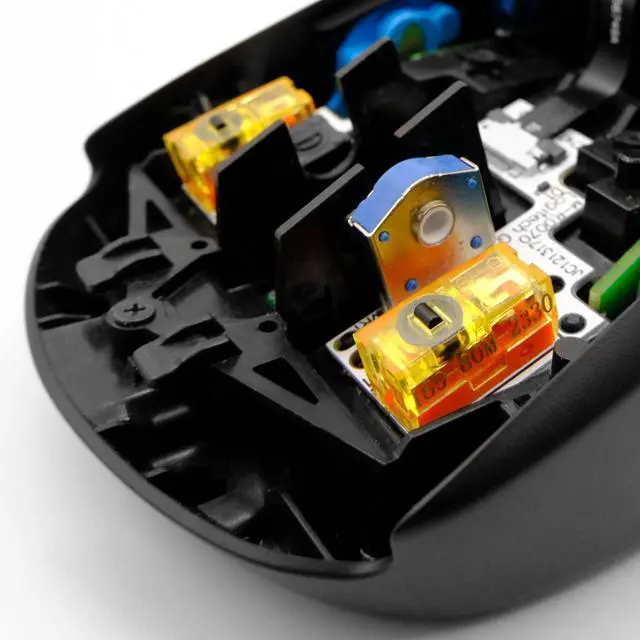

- High Compatibility:Compatibility up to 99% of the market mouse, as long as it is a rectangular three-pin micro-movement can be universal, such as Zowie Razer Logitech mouse.

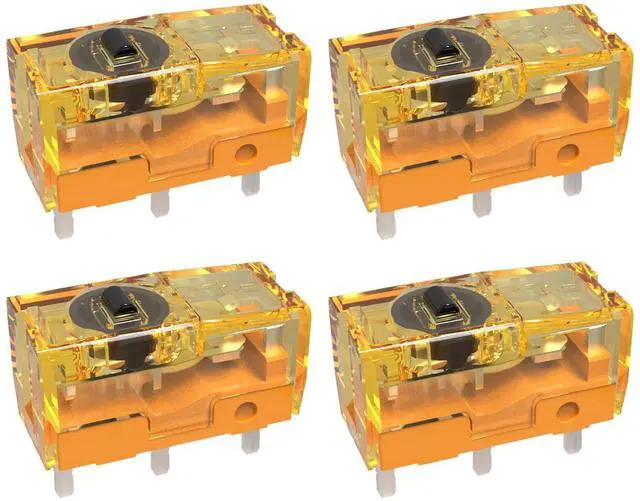

- Package Includes:Mouse Switch x 4.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Precaution
Immersion Soldering condition
Preheat temperature: 110 Max (Ambient temperature of soldering surface of P.W.B)
Preheat time: 60s, Max
Area of flux: 1/2 Max of PWB Thickness
Temperature of solder: 260±5
Time of immersion: 3±0.5s
Number of soldering: 2 times Max (But should down heat of the first soldering)
Printed wiring board: Single side copper-clad laminates
After switches are soldered, please be careful not to clean switches with solvent.
Under the condition of using soldering iron, soldering temperature shall be 350±5 with 3±0.5s.
Notes
(1) Please be cautious not to give excessive static load or shock to switches.
(2) Please be careful not to stack up P. W. B. after switches were soldered.
(3) Preservation under high temperature and high humidity or corrosive gas should be avoided Especially. When you need to preserve it for a long period, do not open the carton.
(4) Products meet the ROHS & REACH environmental management substances control standards.
