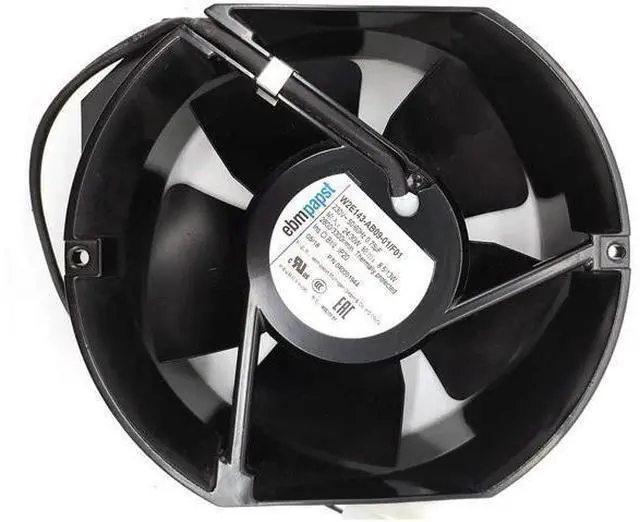

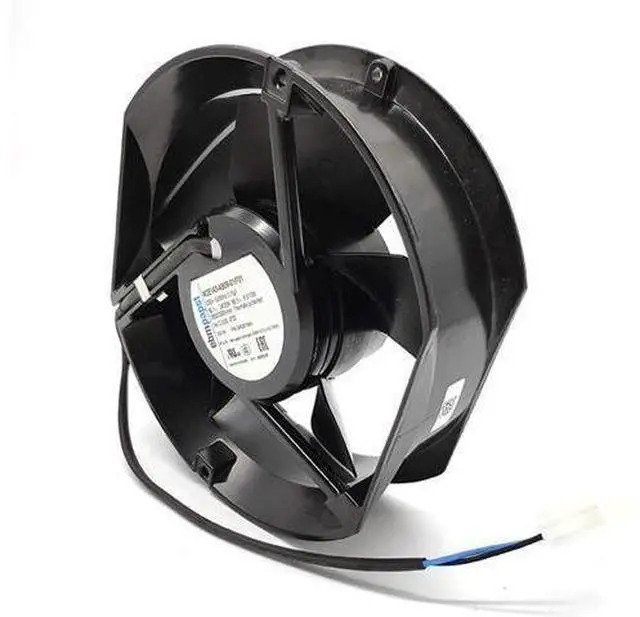

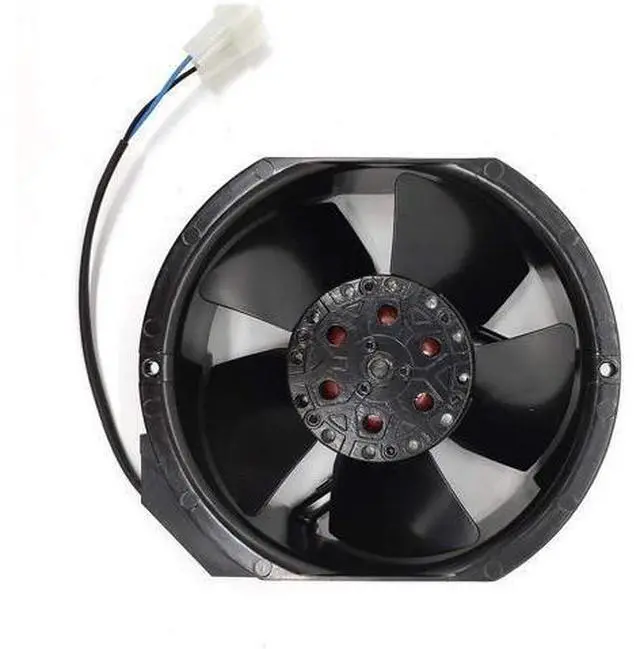

New Original ebmpapst Fan W2E143-AB09-01/F01 Iron Leaf 172X150X51mm 230V High Temperature Resistant Axial Fans
Limited time offer, ends 05/22 By StarVelocity Technology
- Model. W2E143-AB09-01
- Motor: M2E052-BF
- Type: Axial Fan
- Brand: ebm-papst
- Nominal voltage: 230VAC
- Frequency: 50/60Hz
- Speed: 2800/3300RPM
- Power consumption: 24/30W
- Current draw: 0.12A
- Capacitor: 0.75 µF
- Capacitor voltage: 400VDB
- Weight: 0.91 kg
- Size: 143mm
- Motor size: 52
- Blade material: Sheet steel, painted black
- Housing material: Die-cast aluminum, painted black
- Degree of protection: IP20
- Number of blades: 5
- Insulation class: B
- Motor bearing: Ball bearing
- Min. ambient temperature / °C~Max. ambient temperature / °C: -25~75
- UD model of original accessories for Wanliduo ice machine
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model.
W2E143-AB09-01 Motor: M2E052-BF
Type: Axial
Fan Brand: ebm-papst
Nominal voltage: 230VAC
Frequency: 50/60Hz
Speed: 2800/3300RPM
Power consumption: 24/30W
Current draw: 0.12A
Capacitor: 0.75 µF
Capacitor voltage: 400VDB
Weight: 0.91 kg
Size: 143mm
Motor size: 52
Blade material: Sheet steel, painted black
Housing material: Die-cast aluminum, painted black
Degree of protection: IP20
Number of blades: 5
Insulation class: B
Motor bearing: Ball bearing Min. ambient temperature / °C~Max.
ambient temperature / °C: -25~75 Please confirm the model number. All accessories of Wanliduo, applicable models U140 U190 U240 Factory part number 040001944.
W2E143-AB09-01 Motor: M2E052-BF
Type: Axial
Fan Brand: ebm-papst
Nominal voltage: 230VAC
Frequency: 50/60Hz
Speed: 2800/3300RPM
Power consumption: 24/30W
Current draw: 0.12A
Capacitor: 0.75 µF
Capacitor voltage: 400VDB
Weight: 0.91 kg
Size: 143mm
Motor size: 52
Blade material: Sheet steel, painted black
Housing material: Die-cast aluminum, painted black
Degree of protection: IP20
Number of blades: 5
Insulation class: B
Motor bearing: Ball bearing Min. ambient temperature / °C~Max.
ambient temperature / °C: -25~75 Please confirm the model number. All accessories of Wanliduo, applicable models U140 U190 U240 Factory part number 040001944.
