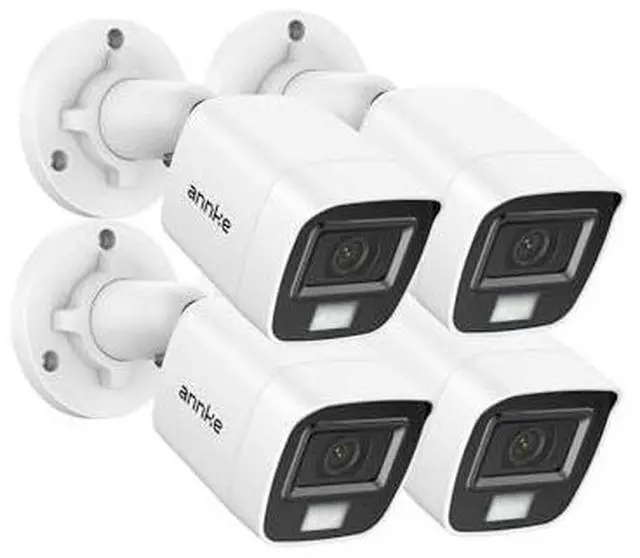

Camera Specification: High quality imaging with 2 MP, 1920×1080 resolution 3.6 mm fixed focal lens High quality audio with audio over coaxial cable, built-in mic Up to 25 m IR distance for bright night imaging Up to 20 m white light distance for bright night imaging One port for four switchable signals (TVI/AHD/CVI/CVBS Water and dust resistant (IP67)
Image sensor: 2MP CMOS
Image sensor Video Resolution: 1920 (H) × 1080 (V)
Signal System: PAL/NTSC
Frame Rate:
"TVI: 1080P @ 30 fps, 1080P @ 25 fps
AHD: 1080P @ 30 fps, 1080P @ 25 fps
CVI: 1080P @ 30 fps, 1080P @ 25 fps
CVBS: PAL/NTSC"
Lens: 3.6 mm Min.
Illumination:
Color: 0.01 Lux @ (F 1.2, AGC ON), 0 Lux with IR Angle of
ViewHorizontal:
FOV: 78°, vertical
FOV: 42°, diagonal
FOV: 92°
Supplement Light type: 1 white Light & 2
EXIR Supplement Light Range:
IR: Up to 25 m, white
Light: Up to 20 m
Supplement Light Mode: IR light works normally, and it switches to white light when human or vehicle are detected at night.
Wide Dynamic Range: Digital
WDR Audio: Built-in mic
IR Cut Filter: Yes
Video Output: BNC, switchable
TVI/AHD/CVI/CVBS Housing: Plastic
Color: White
Operating Power: DC 12V
Operating Temperature: -40 °F 140 °F /-40 °C 60 °C
Indoor/Outdoor: Indoor/Outdoor
Weatherproof Rating: IP67 Dimension (L x W x
H): 138.8 mm × 60.9 mm × 57.9 mm ( 5.47" × 2.4 " × 2.3" )
Weight: Approx. 155 g ( 0.34 lb. )
