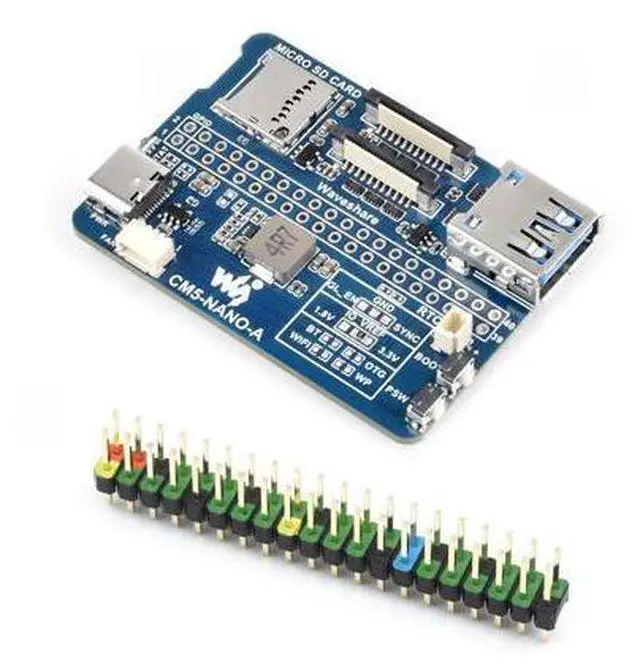

Waveshare Nano Base Board (A), Compatible with Raspberry Pi Compute Module 5, Base Board for CM5 Lite/eMMC, with Multiple Peripheral Interfaces
Limited time offer, ends 07/12 By GGnix

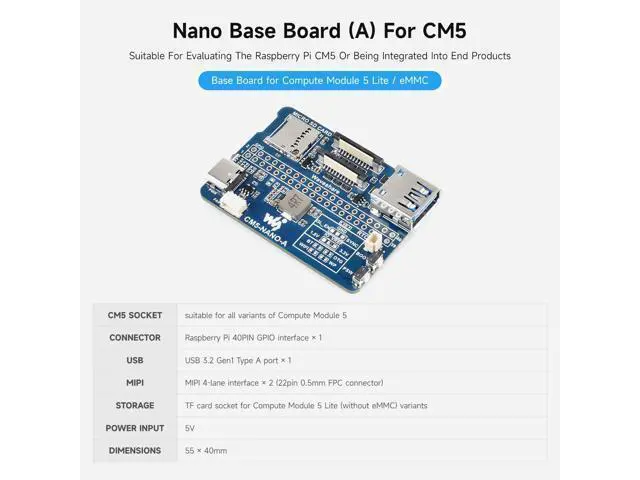

- Compatibility: Designed for evaluating the Raspberry Pi CM5 or integrating into end products, the Nano Base Board (A) is fully compatible with all variants of the Compute Module 5.
- Compact and Fully Functional: Offering the same size as the CM5, this base board is compact and functional, providing a complete solution in a small form factor suitable for narrow application environments.

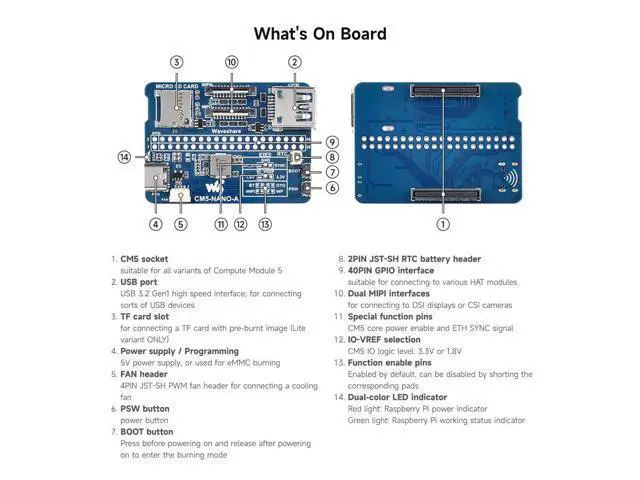

- Multiple Peripheral Interfaces: It includes a Raspberry Pi 40-pin GPIO interface, USB 3.2 Gen1 Type-A port, two MIPI 4-lane interfaces, and a TF card socket for the Compute Module 5 Lite variant (without eMMC), ensuring flexibility for diverse peripheral connections.
- Power and Storage: The base board is powered by a 5V input and supports storage via a TF card socket for the Compute Module 5 Lite variants that do not include eMMC storage.

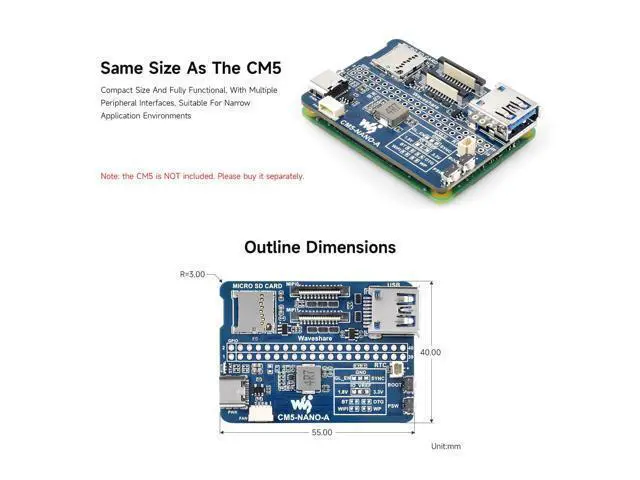

- Dimensions: With a compact size of 55 × 40mm, the Nano Base Board (A) is designed to fit into space-constrained applications while maintaining high
+
+
