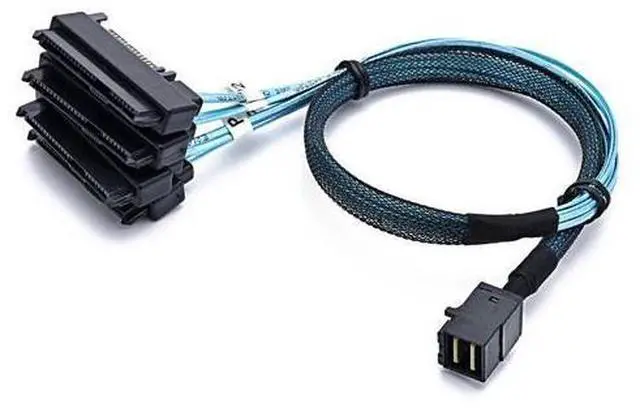

SATA Cables SFF-8643 To 4 SFF-8482 Internal Mini HD to 4 29pin SFF-8482 connector with 15pin Power Port 12GB/S Cable

SATA Cables SFF-8643 To 4 SFF-8482 Internal Mini HD to 4 29pin SFF-8482 connector with 15pin Power Port 12GB/S

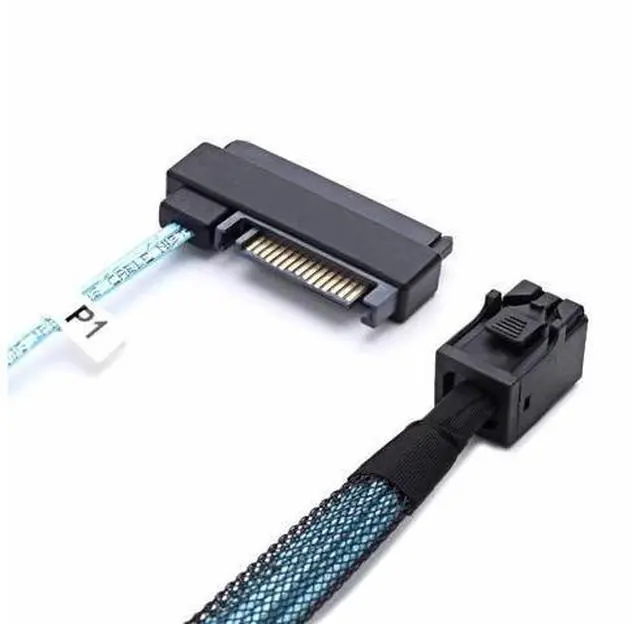

Cable Note: 29pin SFF-8482 is 7+7+15 pin, the middle 7 pin is empty, it don't effect to use.

Specifications

: side
1: Internal

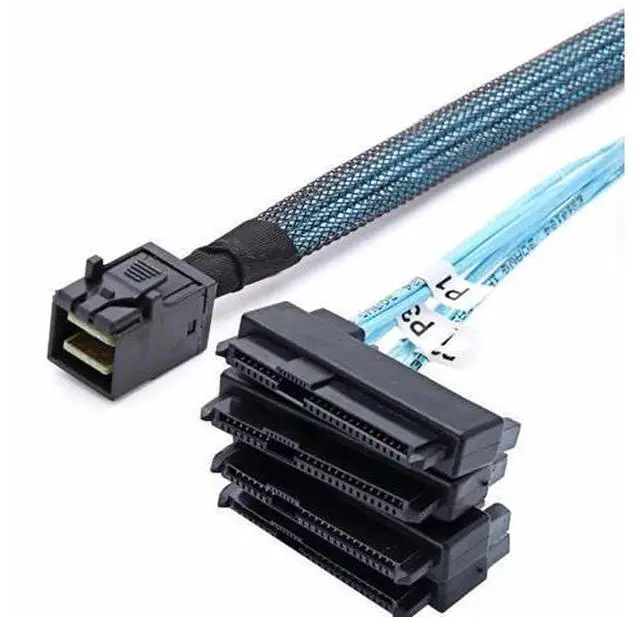

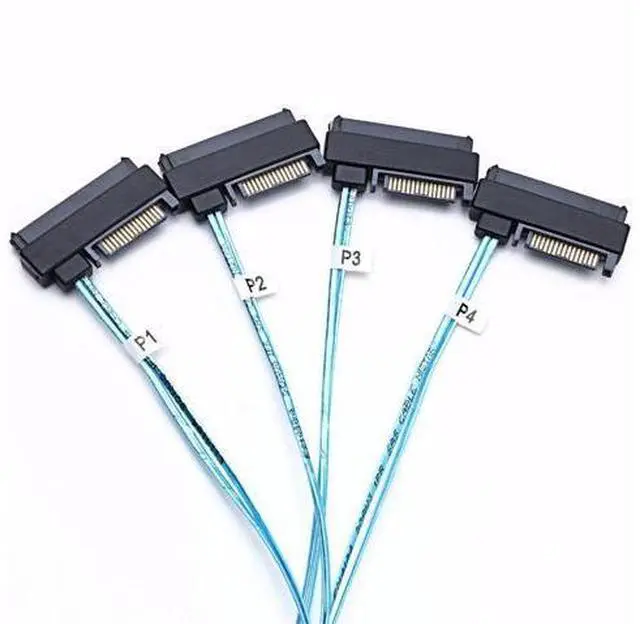

Mini sff-8643 side 2: (4) 29pin SFF-8482 connectors with 15pin power port cable: 30awg
cable length: 0.5 /1 meters cable
Color: black & Blue. Description Internal Mini SFF-8643 to (4) 29pin SFF-8482 connectors with power connecting a controller (SFF-8643) to four SATA/ disks (SFF-8482) Please note that Mini (SFF-8643) is host, 4 29 (SFF-8482) is target, internal Mini Serial Attached SCSI x4 (SFF-8643) to (4) x1 (SFF-8482) Serial Attached SCSI (controller based) fan-out cables Before you buy this cable, Please make sure the Mini (SFF-8643) on your motherboard or RAID controller. If the Mini (SFF-8643) on your backplane, this cable will not work with them Mini (SFF-8643) connect to the controller, 4 connect to the HDD (hard disc driver) Applications Data/Communications 1. RAID (Redundant Array of Independent Disks ) 2. Workstations 3. Rack-mount server 4. Servers 5. Storage rack Features and Benefits 1. Transmission rate 12 Gbps.
2. Meet 3.0 specification. Mechanical Performance Mating Force and
Unmating Force Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.
Mating Force: 55 N maximum.
Unmating Force: 49 N maximum. Electrical Performance 1. Contact Current Rating 0.5A mperes maximum per pin when mated. 2. Voltage Rating 3. Contact Resistance
