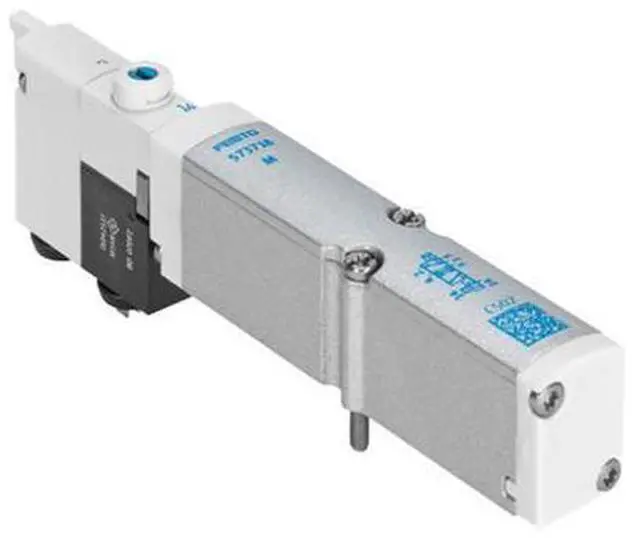

FESTO VMPA14-M1H-MS-PI 573974 Air Solenoid Valve New

Valve function 5/2, monostable Relative air humidity Max. 90 % at 40 °C Lap Overlap Actuation type Electrical Valve size 14 mm Standard nominal flow rate 670 l/min Operating voltage 24V DC Operating pressure - 0.9 bar... 8 bar Design Piston gate valve Reset method Mechanical spring Type code VMPA14 Sealing principle Soft Mounting position Any Type of control Pilot-controlled Flow direction Reversible Symbol 00991190 Signal status display yes Pilot pressure 3 bar... 8 bar Suitability for vacuum yes Standard nominal flow rate with QS-6 670 l/min Switching time off 30 ms On switching time 13 ms Max.

positive test pulse with 0 signal 400 µs Max. negative test pulse on 1 signal 200 µs Permissible voltage fluctuations +/- 25 % Operating medium Compressed air as per
ISO 8573- 1:2010 [ 7:4: 4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) CE marking (see declaration of conformity) As per EU EMC directive Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 Corrosion resistance class (CRC) 1 - Low corrosion stress Storage temperature -20 °C... 40 °C Temperature of medium -5 °C... 50 °C Ambient temperature -5 °C... 50 °C Max. tightening torque for valve mounting 0.65 Nm Product weight 77 g
