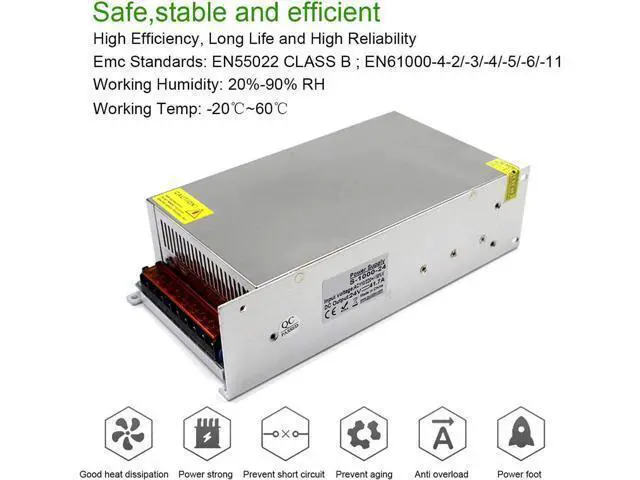

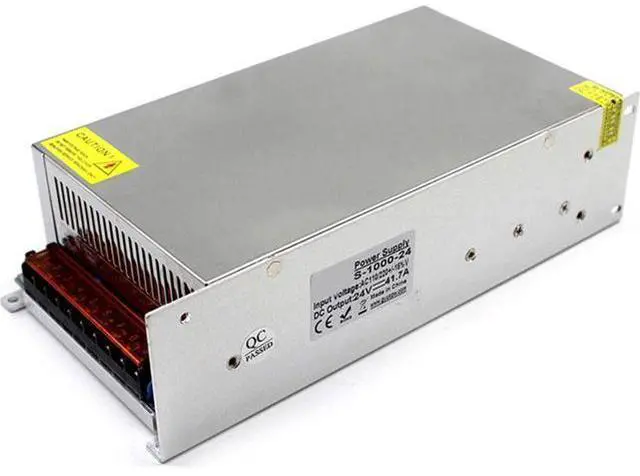

1000W Power Supplies , EAGWELL 24V 41.7A DC Universal Regulated Switching Power Supply Driver for CCTV,Radio,Computer Project, 3D Printer,LED Driver
- 1000W POWER SUPPLY - Input: AC 110V Switchable; Output: DC 24V 41.7A.

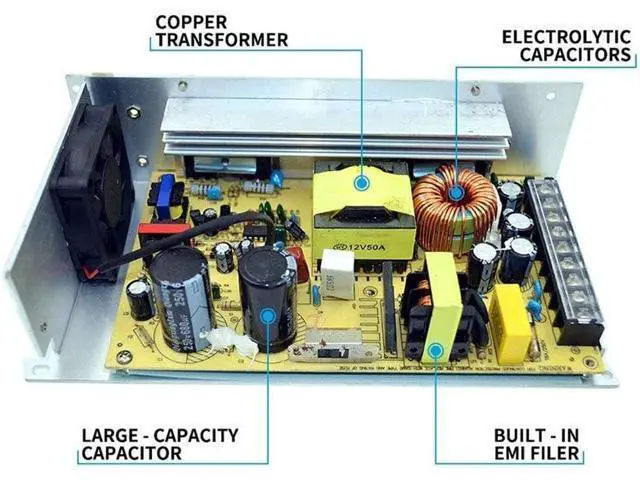

- High-QUALITY RAW MATERRIALS - Pure Copper Inductors, High-performance Transformers, Dual-capacity Electrolytic Capacitors is The Guarantee of High-quality Power Supply;
- MULTIPLE PROTECTION - With Over-voltage Protection, Overload Protection, Overheating Protection and Prevent Short Circuit;
- TESTING & CERTIFICATION - This Power Supply is Finished After 48 Hours Burn-in , and Passed The CE and FCC Certification;
- WIDELY USED - High quality Switch Power Supply Widely Used in LED Strip, Audio Power Amplifier, LED Lighting, Light Box Billboard, etc.
+
+
Overview
Specs
Reviews
EAGWELL 1000W
Power Supply Feature: Switching power supply converts AC 110V to DC 24V 41.7A. There is a switch, please select the appropriate voltage before use. High-power transformers for electronic equipment, LED lighting, household appliances, radios, security cameras, computers, etc Widely used in industrial automation, LED display, electronic equipment, communications and so on. The input voltage range is wide and the output voltage is stable and accurate. Intelligent device surge protection for short circuit protection, overload protection, over voltage protection.
Pay Attention: Can not be used in motors, starting products that exceed the rated current
More Specification:
Color: Silver
Material: Metal
Input voltage: 110V ±1% (85-145V)
Output voltage: DC 24V
Output current: up to 41.7A
Difference range: ±5%
Power: 1000W Max (load power cannot exceed 80% of rated power)
Efficiency: >80%
Output adjustable voltage range: ± 5%
Frequency: 50-60Hz
Product weight: 2.998 lb
Leakage current: <1mA/120V
Temperature coefficient: ± 0.03 %/°C (050°C) Start, rise, hold
time: 200ms, 50ms, 20ms
Shock resistance: 10500Hz, 2G 10min, /1 cycle, duration 60 minutes, each axis
Protection: overload overvoltage and overcurrent short circuit protection Pressure resistance
Input and output: 1.5K vAC input and housing; 1.5K vAC output and housing; 0.5K vAC Working temperature, humidity: -10 ° C ~ +60 ° C, 20% ~ 90% RH Storage temperature, humidity: -20 ° C ~ +85 ° C, 10% ~ 95% RH

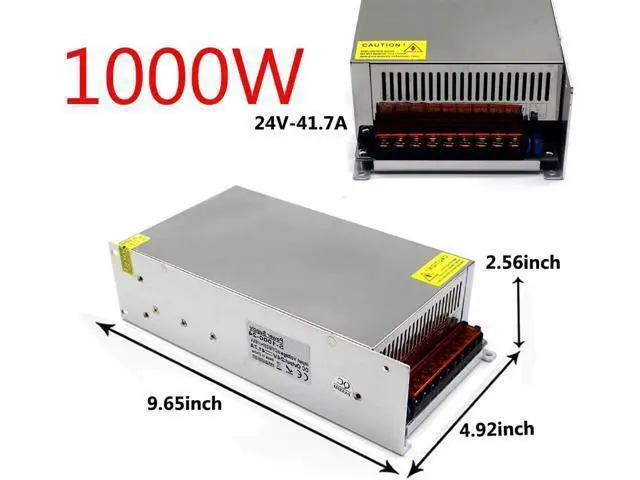

Product size: 9.646 x 4.921 x 2.559 inch
Package includes: 1 x 1000w switching power supply Page 11Page 1 of 1Sponsored Previous pageNext pagePage 11Page 1 of 1Previous page of related Sponsored ProductsNext page of related Sponsored Products
