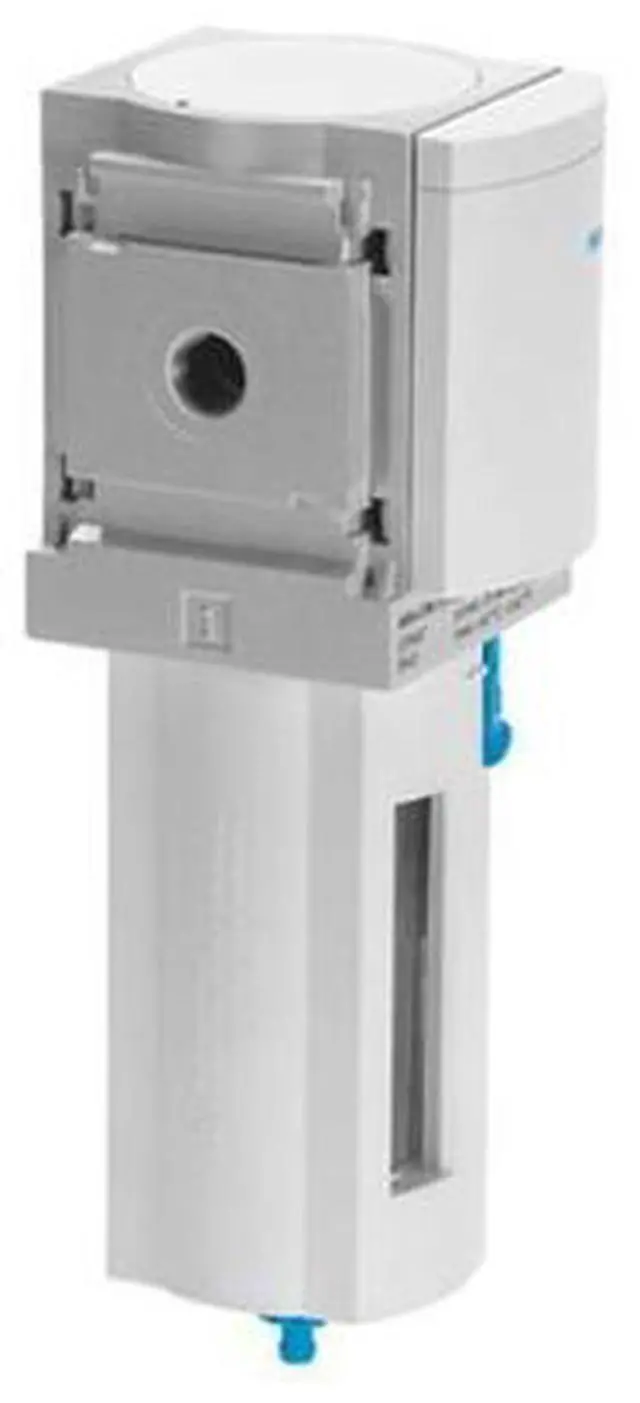

FESTO MS6N-LFM-1/2-BRV Fine Filter 531855 Size 6 New

Series MS For use in the food industry See supplementary material information Size 6 Type code MS6N-LFM Design Fiber filter Grade of filtration 1 µm Condensate drain Fully automatic Symbol 00991520 Operating pressure 2 bar... 12 bar Air quality class at the output Compressed air as per
ISO 8573- 1:2010 [ 5:7: 3] Max. standard flow rate for air quality class 950 l/min Min. standard flow rate for air quality class 140 l/min Filter efficiency 99.99 % Max. condensate volume 38 ml Bowl guard Plastic bowl guard Corrosion resistance class (CRC) 2 - Moderate corrosion stress Temperature of medium 5 °C... 60 °C Ambient temperature 5 °C... 60 °C Storage temperature -10 °C... 60 °C Residual oil content 0.5 mg/m3 Mounting position Vertical +/- 5° Pneumatic connection 1 1/2 NPT Pneumatic connection 2 1/2 NPT Housing material Die-cast aluminum Compressed air filter material Borosilicate fiber Material of bowl PC Seals material NBR Product weight 600 g
