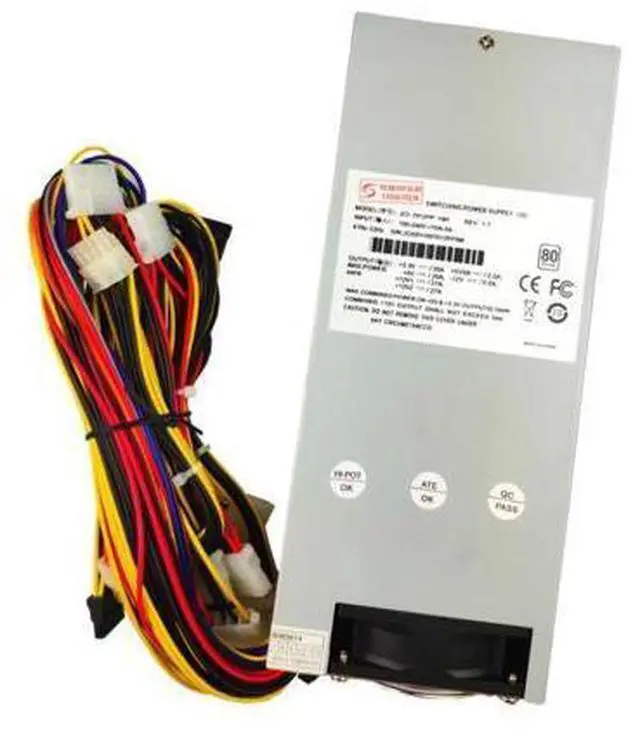

700W IPC 2U Power Supply 700W PSU For Industrial Server Power Supply 700W ATX 2U Industrial Server PSU Power Supply With Slient

PFC Type: Active Number of
SATA Ports: 3 Graphics Card 12V
Pin Number: 0
D-type Bus Number: 9 CPU
Power Connector: 8 pin
Package: Yes
Interface Type: 20 + 4Pin
Application: Server, Desktop
Model Number: JCI-7012P-1M1
Output: 10
Input Voltage: 90-264Vac
Modular: Non-Modular 80
PLUS Certification: 80
PLUS Origin: Mainland
China Certification: NONE 700W IPC 2U Power Supply 700W PSU for Industrial Server Power Supply 700W ATX 2U Industrial Server PSU Power Supply with Silent JCI-7012P-1M1 Confirm 80PLUS Confirm IPC 2U
Version Output Capacity: 600 Watts Continuous Low Ripple & Noise & High efficiency
Operation Temperature: 0~50
Dimension: 240* 100 * 70.5 mm
Two DC Low-Noise Fan: 6025mm*1; 6020mm*1
Life expectancy:
MTBF: 100kh hours ACTIVE PFC(PFC>99%) Multiple Protections Function (OCPOVPUVPOPP) Safety ApprovalsCE, FCC, CB
Output Connectors: Specification Output Wattage 700W PFC
Active PFC Efficiency> 80 % Full load P. G100-500 ms Hold-up Time16ms Min Weight2KG ColorSliver FanTwo DC FANS: 6025*16020*1 Dimension240mm (L) x 100mm (W) x 70.5 mm (H) INPUT Input Voltage90-264Vac Input Frequency47 ~ 63 Hz MTBF100, 000 hrs minimum (at 25 ) OUTPUT Voltage +5V+12V1+12V2+12V3 +12V4-12V+ 3.3V +5Vsb MIN 0.2 0.10. 50.00. 00.00. 1 0.0 NOM1588 88 0.25 10 1.25 MAX30 16161616 0.5202. 5 UnitsAMPSAMPSAMPS AMPSAMPS AMPS AMPSAMPS 1) Total DC output power shall not exceed 700 Watts. 2) +5V and + 3.3V outputs shall not exceed 160 Watts 3) +5V, + 3.3V and +12V outputs shall not exceed 585 Watts. Environment Operation Temperature0 to 50 Storage Temperature-40 to 80 Operation Humidity20% to 85%, non-condensing Storage Humidity10% to 95%, non-condensing
