JINGMAIDA Switching Power Supply 1000W 100-240V AC to DC 72V 13.8Amp 1000W Power Supply with PFC for CCTV, Radio, Computer Project, LED Strip Lights, 3D Printer
Limited time offer, ends 07/19 By GGnix

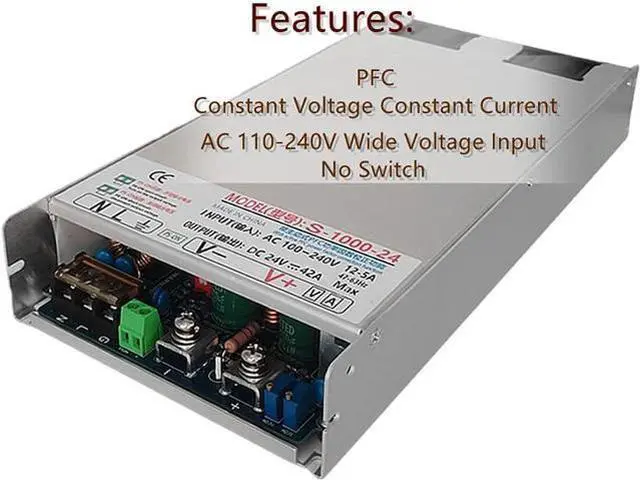

- Switching Power Supply 1000w With PFC,Constant voltage constant current.
- The Output Over Voltage Protection: Over Voltage Point 115% Of The Nominal Voltage, Over Voltage Protection Lock, After Will Not Automatically Restore, Need Again When The Power Is Cut Off Electricity.
- Input Voltage:AC 100-240V(Wide Voltage Automatic Adaptation, No Switching).

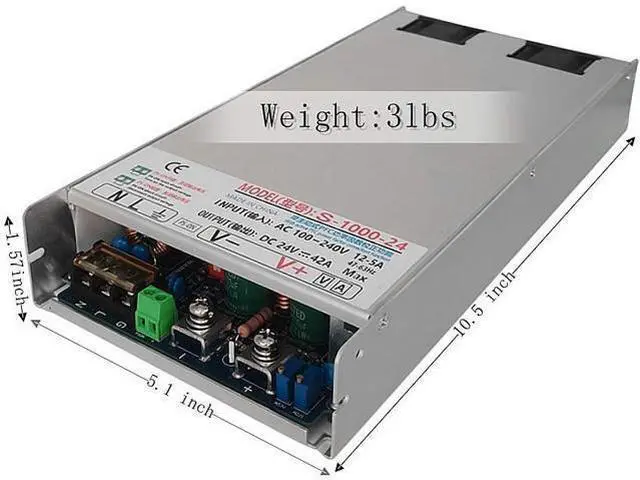

- Weight:3 LBS; Size: 10.5 X 5.1 X 1.57 INCH(L*W*H) One Year Warrant.
- Wide input Voltage Range, Steady And Precise Output voltage.Great Power Transformer For Electronic Equipment, Led Lighting, Home Appliance Etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
-Input voltage: AC 100-240V(wide voltage automatic adaptation, no switching); -Power factor PF value 0.99 /110V (100% in full load) PF value 0.98 /220V (100% in full load); -Output overload protection: Overload protection ways for constant current limit flow pattern, lock output current value does not rise, the output voltage with load increasing; -High temperature protection: PWM transistor heat sink temperature of 85 + / - 5% when shut off the output voltage, temperature to 75 + 5% for automatic recovery; -Output short circuit protection: Since the xs, short circuit back output; -The output over voltage protection: Over voltage point 115% of the nominal voltage, over voltage protection lock, after will not automatically restore, need again when the power is cut off electricity; -Working temperature: 25 degrees below zero - 45 degrees centigrade, over temperature need to down load; -The cooling way: Automatic temperature control speed fan (blowing); -Weight: 3 LBS;
Size: 10.5 X 5.1 X 1.57 INCH (L*W*H) One year warrant.
Size: 10.5 X 5.1 X 1.57 INCH (L*W*H) One year warrant.
