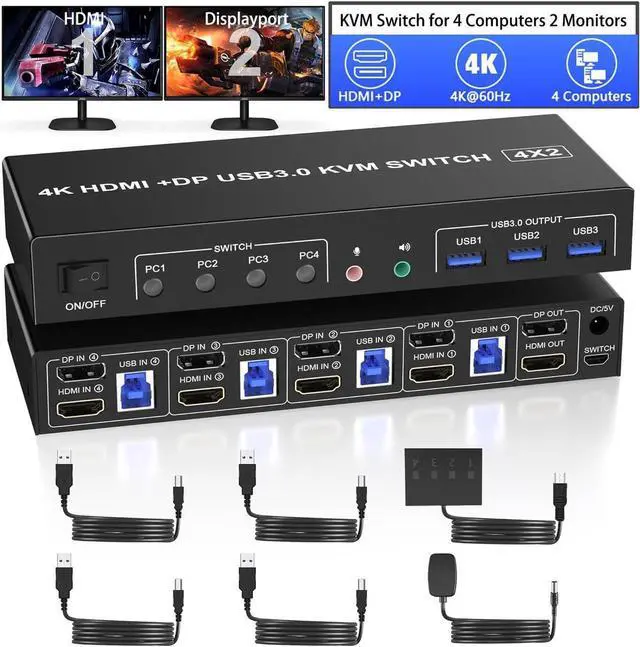

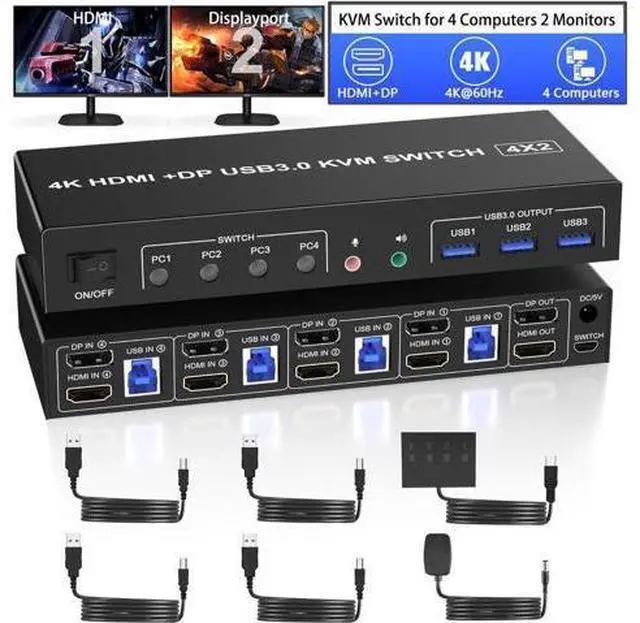

USB 3.0 Displayport + HDMI KVM Switch 2 Monitors 4 Computers, 4K@60Hz KVM Switches with Audio Microphone and 3 USB 3.0 Ports, 4 Port HDMI + DP Dual Monitor Switch for 4 PCs 2 Monitors

Dual Monitor 4 Port HDMI + Displayport USB 3.0 KVM Switch 4K@60Hz for 4 computers 2 monitors
Product Features: 4 computers/laptops share one set of keyboard, mouse and dual monitors, and more USB 3.0 ports; Support maximum resolution up to 4K 60Hz

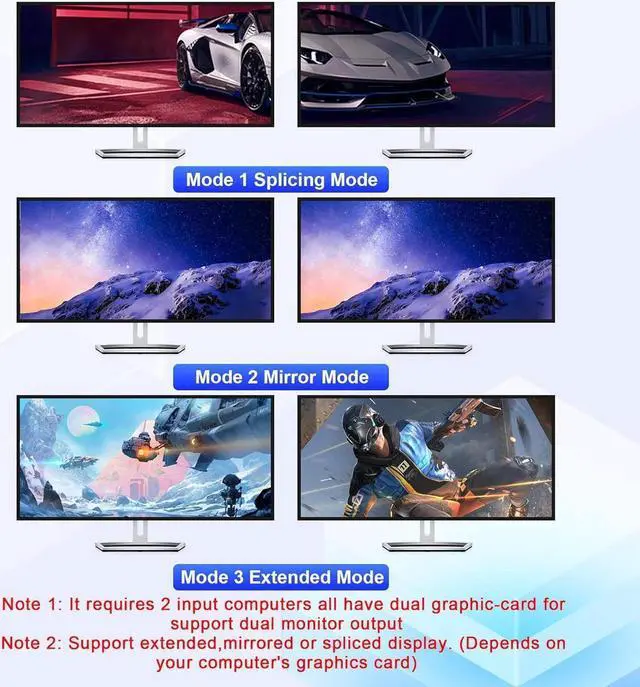

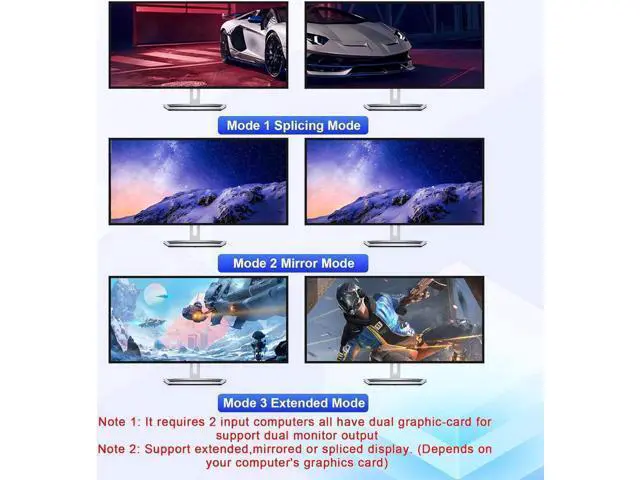

YUV 4:4: 4, HDCP 1.4, HDR 2.2; Dual monitors output support up to 4K@60Hz for extended and mirrored display; Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems;
Advanced switching modes: push button and wired remote; No complicated installation is required, and non-professionals can easily operate it; The ports that need to plug in HDMI/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered; Audio Microphone output.

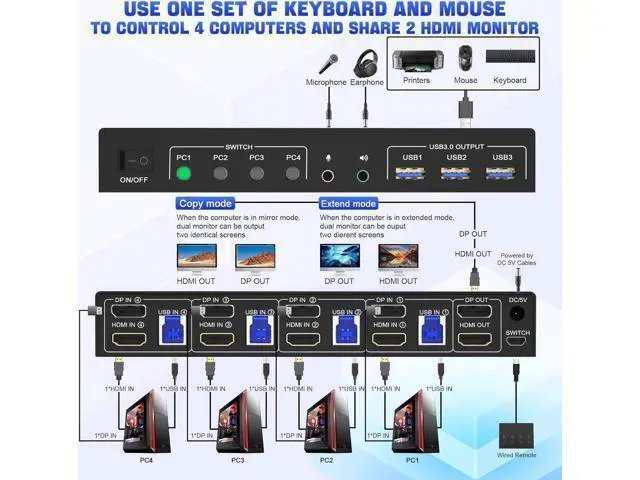

Connection steps:
1. Insert the DC/5V adapter into the KVM;
2. Plug the DP/HDMI cable into the KVM and monitor; (Output)
3. Plug the DP/HDMI cable and USB cable into the KVM and your computer/laptop (DP cables are not included) (Input) DP IN1 + HDMI IN1 + USB IN1=PC1 DP IN2 +HDMI IN2 + USB IN2=PC2 DP IN3 + HDMI IN3 + USB IN3=PC3 DP IN4+ HDMI IN4+ USB IN4=PC4
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
Note:
1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(1 DP/HDMI cables+1 USB cable) connect to the KVM.
2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.
3. Before purchasing this DP/HDMI dual monitor KVM switch, please make sure that connecting your computer directly to the monitor can work normally, Otherwise, the KVM will not be available.
4.
Note: DP/HD-MI cables are not included USB 3.0 Dual Monitor KVM Support 4K@60HZ Supports high resolution up to 3840*2160@60Hz and downwards.

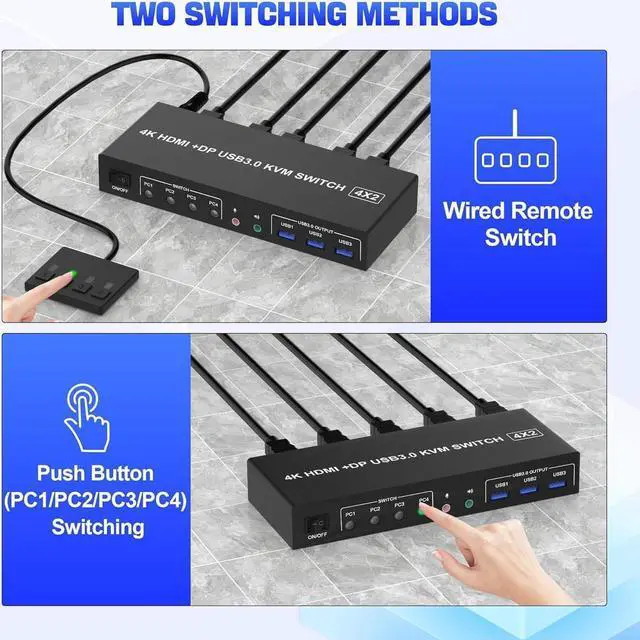

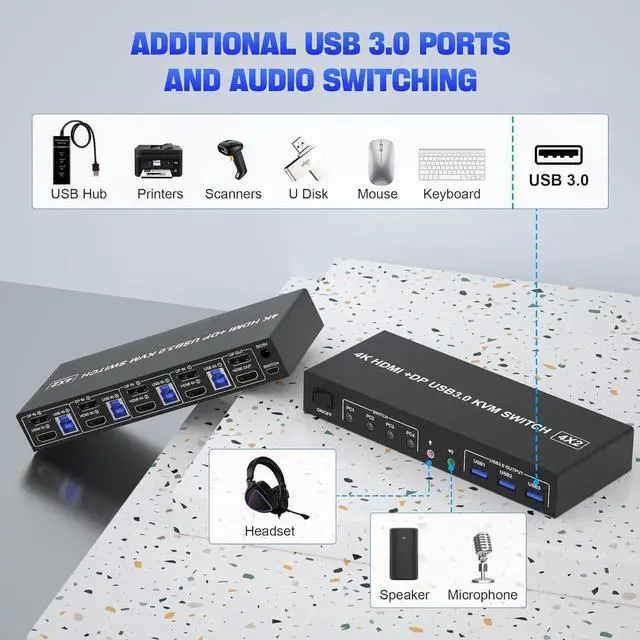

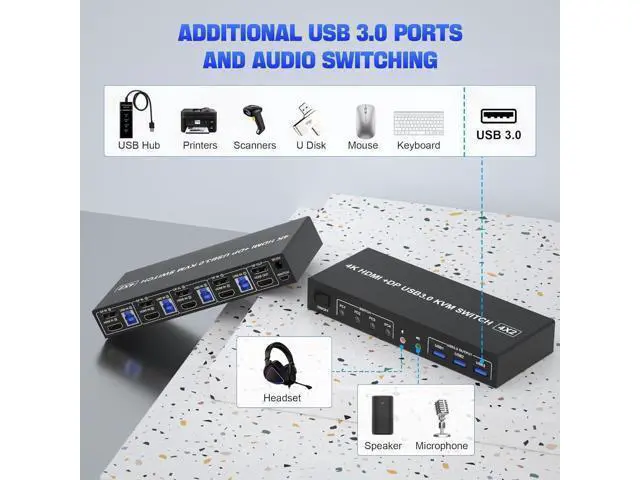

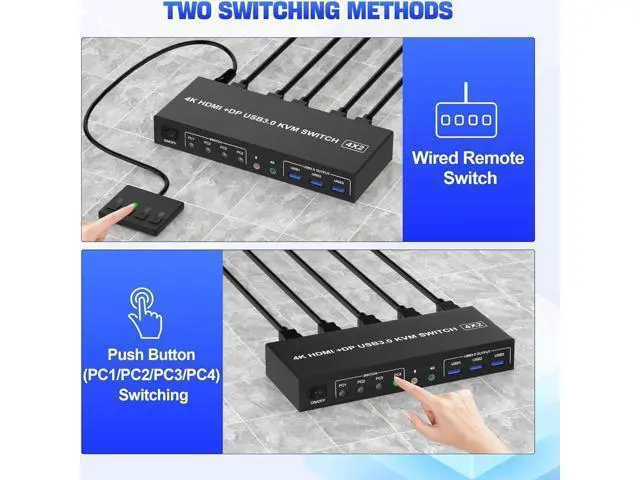

Note: Only when both your computer Graphics card and monitor support 4K@60Hz you can get the 4K@60Hz effect, so if you want the maximum resolution you have to check your devices first. Supports separate audio and microphone output KVM Switch comes with a 3.5 mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5 mm earpiece device, and a 3.5 mm microphone interface, which can be inserted into a 3-segment microphone. 3 Port USB 3.0 with 5Gbps Supports 5Gbps data transfer speed, can transfer files in Seconds, Much faster than USB 2.0. 3 USB 3.0 ports, backward compatible with USB 2.0 and USB 1.1, share USB devices such as keyboard mouse scanner, printer, flash drive, etc. 2 monitors 4 computers KVM Support 2 Switching Modes Quickly switch between the 4 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).
Please note: This KVM does not support hotkey switching.
Package includes: 1 x USB 3.0 Displayport HDMI dual monitor KVM switch, 1 x Power adapter, 1 x Wired Remote Switch, 4 x USB 3.0 Type-A to B cable, 1 x User Manual We offer a 2-year warranty.
Important: After connecting the computers and the monitors through KVM, you need to set the screen output mode on the computer (press Windows+P) and select the output mode in the pop-up window on the screen.
