4 Port 8K Displayport USB 3.0 KVM Switch 3 Monitors 4 Computers, DP1.4 Triple Monitor KVM Switch with Audio Microphone Output and 3 USB3.0 Ports, Displayport KVM Triple Monitor Keyboard Mouse Switcher

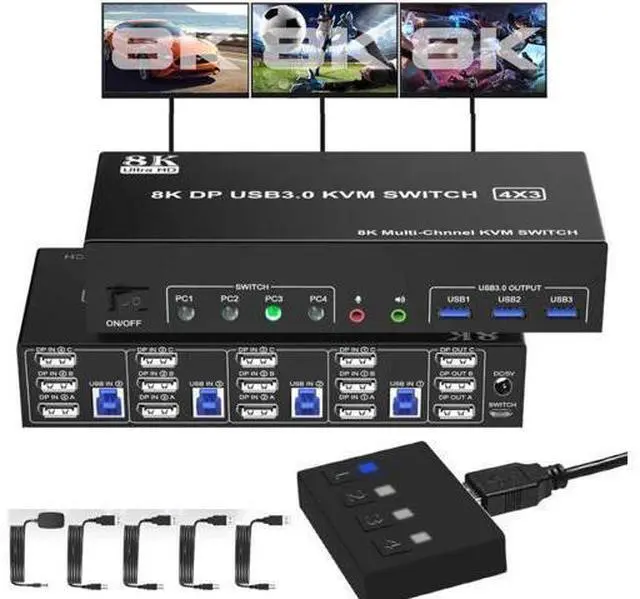

USB 3.0 Displayport KVM Switch (DP + DP + DP + DP) 4 ports Triple Monitor Does Everything You Need! 4 port USB 3.0 triple monitor DP KVM Switch (DP+ DP+DP). Each input source device must be connected to 3 Triple-monitor. This kvm switch triple monitor 4 port help you control 4 PCs share 3 monitors by only one set of USB keyboard & mouse.
Advantages: 1, Share one set of keyboard, mouse and 3 monitors (3 DisplayPort) between 4 computers or laptops; 2, Supoort DP 1.4 and downward compatible. 3 monitors output support up to 8K@60Hz for extended, mirrored or spliced display (Depends on your computer's graphics card. ); 3, No complicated installation is required, and non-professionals can easily operate it, Ideal for multi-tasking professionals and gamers who need to access multiple devices quickly and efficiently; 4, Cross support major operation systems including Windows, Linux, Mac and more; 5, Switching

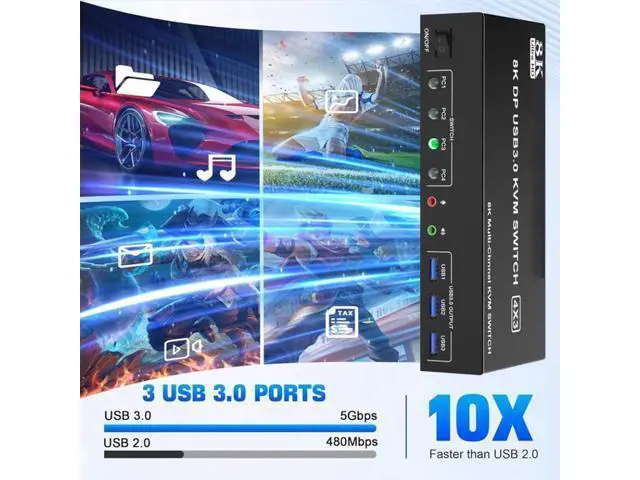

modes: Buttons on the front panel and wired remote; 6, The ports that need to plug in DP/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered; 7, A USB hub can expand the USB 3.0 ports if multiple connections are required, also an audio microphone output. Displayport KVM Switch up to 8K@60HZ 8K/4K HD Resolution This kvm switch 3 monitor supporting high resolution max up to 8K@60Hz, and also supports 4K@60Hz or other lower resolution (Downward Compatible).
Note: Only when both your computer Graphics card, monitor and DP cable support 8K@60Hz then you can get 8K@60Hz effect, so if you want the max resolution you have to check your devices first.

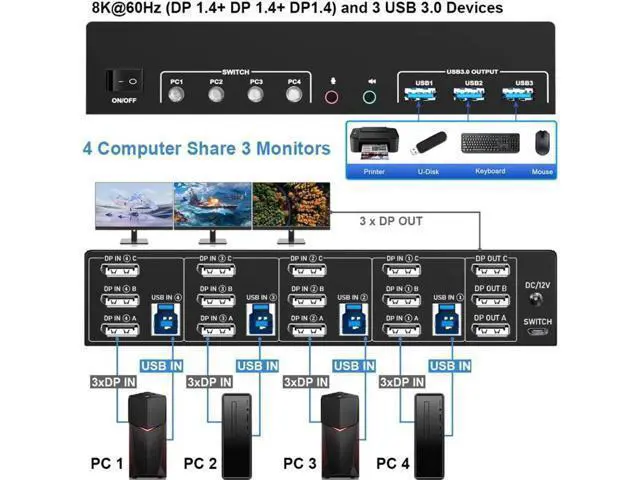

Connection steps:
1. Insert the DC/5V adapter into the KVM;
2. Plug the 3 DP cable into the KVM and monitor; (3 DP Output)
3. Plug the 3 DP cable and USB cable into the KVM and your computer/laptop (DP cables are not included) (Input) DP IN 1A + DP IN 1B + DP IN 1C + USB IN 1=PC1 DP IN 2A + DP IN 2B + DP IN 2C + USB IN 2=PC2 DP IN 3A + DP IN 3B + DP IN 3C + USB IN 3=PC3 DP IN 4A + DP IN 4B + DP IN 4C + USB IN 4=PC4 Please check whether DP IN 1A, DP IN 1B, DP IN 1C, and USB IN 1 corresponding, and whether DP IN 2A, DP IN 2B, DP IN 2C and USB IN 2 are corresponding. Mixed insertion is not supported. The same goes for PC3 and PC4.
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
Note:
1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(3 DP cables+1 USB cable) connect to the KVM.
2. If the input USB 3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.
3.
Note: DP cables are not included 3 Display Modes 3 Display Modes Extended Display Mirrored Display Spliced Display If you are a de-signer or illustrator, you can use this mode to see the effect while working. 1)Extended mode can output 3 different screens and mirror mode can output 3 identical screens.

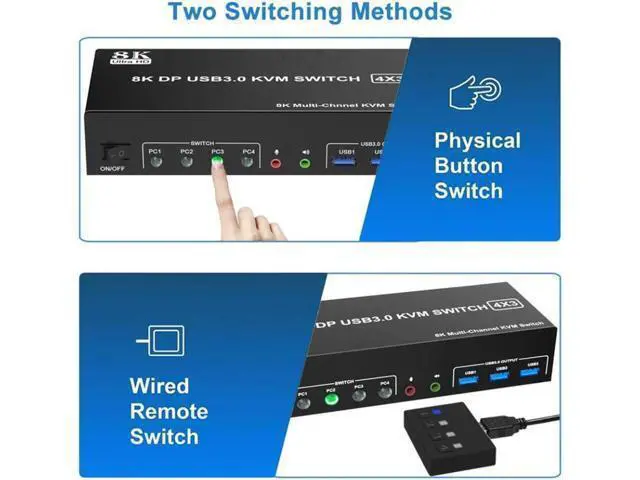

Note: If your graphics card has a splicing screen function, you can use the splicing screen mode. 2) The requirement for this KVM to achieve a 3-screen display is that each PC you connect to has the capability to support a 3 screen display. This has nothing to do with KVM. 2PC/3PC/4PC are all suitable 4 ports does not mean that it can only be connected to 4 computers. You may have 4 computers currently, or you may only have 2 computers now, but you may need to use 3 or 4 computers in the future, then you can choose this switch. As long as your computer confirms that it supports dual-screen display, you can use 2 screens. 3 monitors 4 computers KVM Support 2 Switching Modes Quickly switch between the 4 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).
Please note: This KVM does not support hotkey switching. Supports separate audio and microphone output Display port kvm switch comes with a 3.5 mm Audio Jack port with a DAC chip inside, which can be inserted into a
