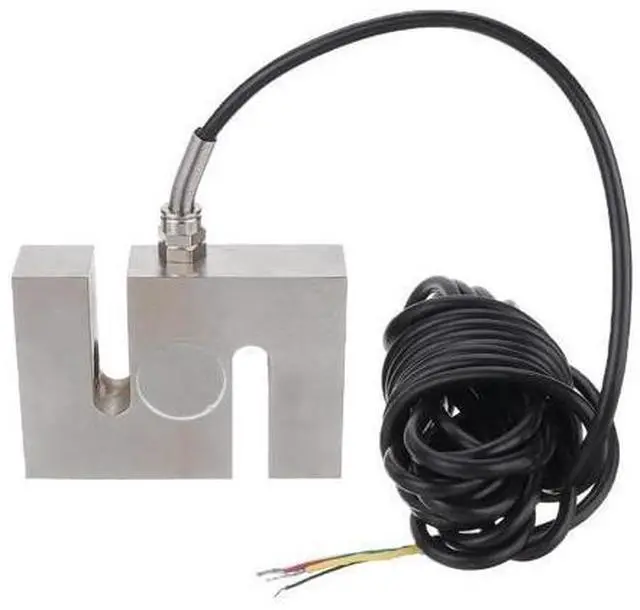

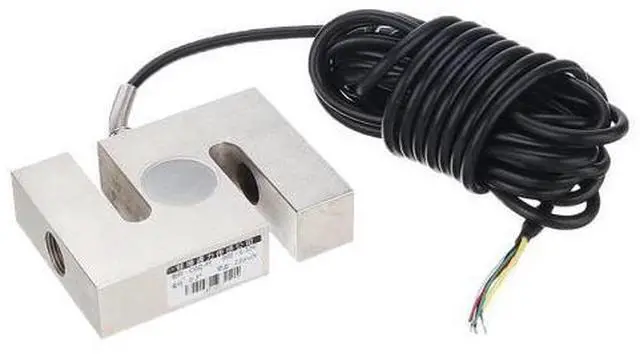

100kg-3T Strain Gauge Pressure Sensor S Load Cell Electronic Scale Sensor Weighing Sensor

Feature:
Range: 100kg, 200kg, 300kg, 500kg, 1T, 2T, 3T (optional)
Overall accuracy: 0.03 % F ·
S Sensitivity: 2 ± 0.1 mV /
V Creep: ± 0.05 % F ·
S/30min Nonlinear: ± 0.03 % F ·
S Hysteresis error: ± 0.03 % F ·
S Repeatability error: ± 0.02 % F ·
S Zero temperature coefficient: ± 0.03 % F · S/10
Output temperature coefficient: ± 0.03 % F · S/10
Input impedance: 700 ± 15
Output Impedance: 650 ± 15
Insulation resistance: 5000
M For the bridge voltage: Recommended 10 VDC (standard signal 12V 24V)
Operating temperature range: - 20 ~ +70
Safe overload: 150% F ·
S Sealing Rating: IP67
Material: Alloy steel (40CrNiMo)
Wiring Instructions: Power
Positive: Red
Power Negative: green
Output Positive: Yellow
Output Negative: white
Package includes: 1 x Weighing Sensor
