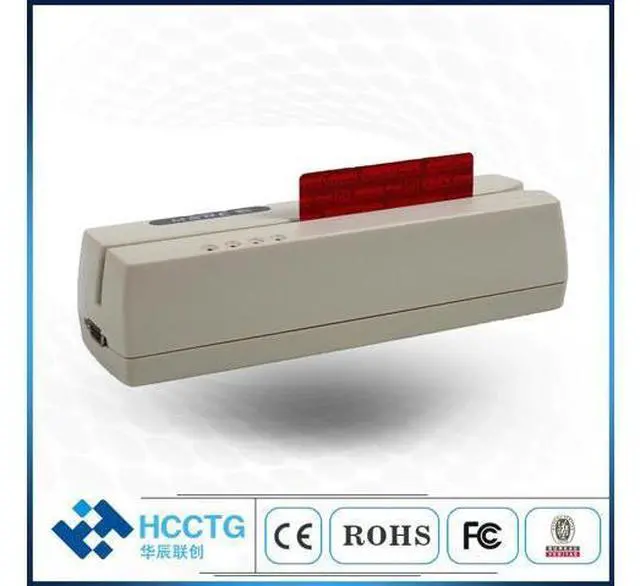

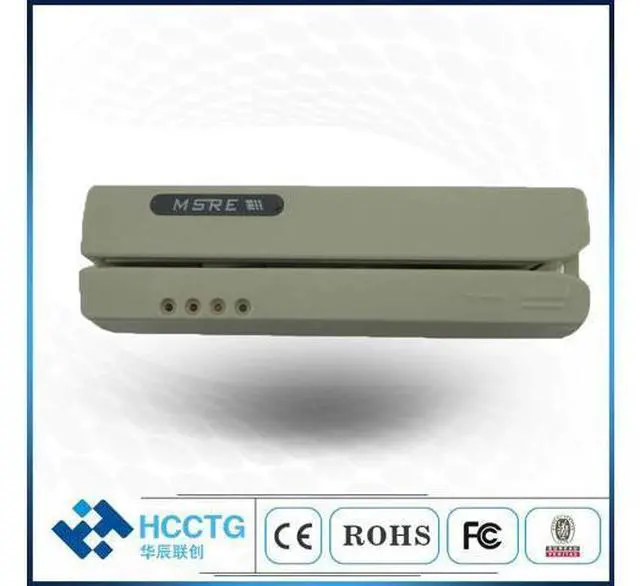

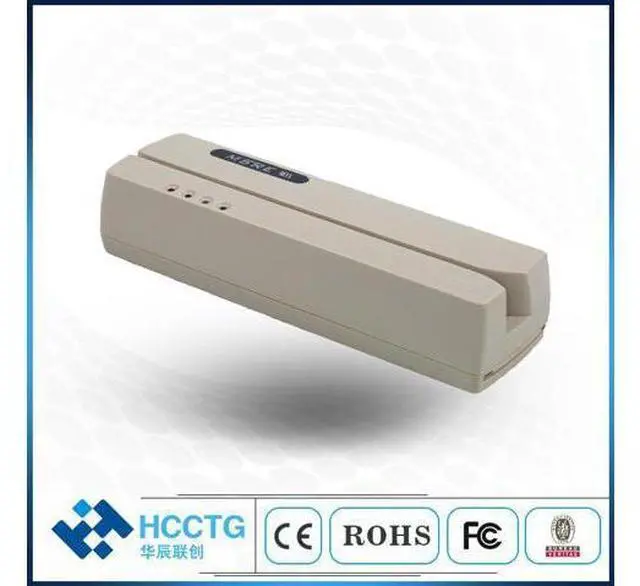

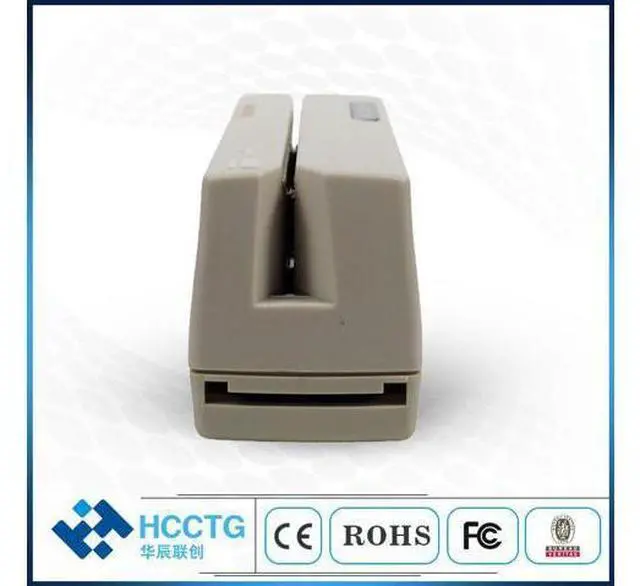

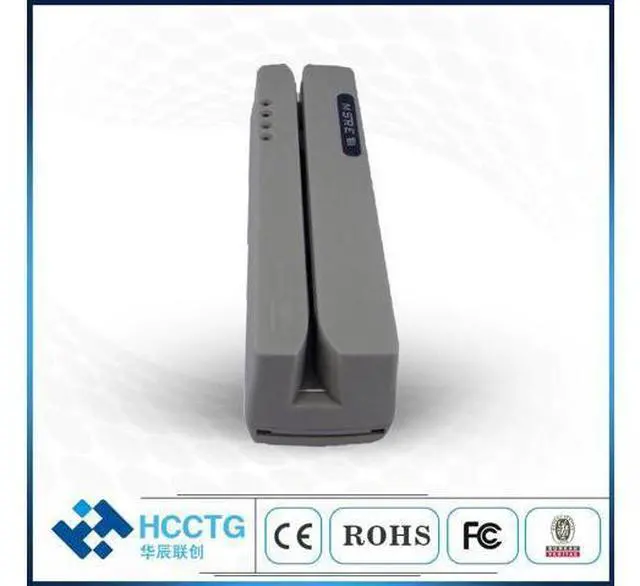

and RS232 Interface Optional Android 1/2/ 3 Tracks Reader And Writer Magnetic Card Compatible MSR 206 Magnetic HCC206

Specification Operating voltage 24VDC +/- 5% Consumption Typical 350mA Max. and 600mA plus for each writing track Power Supply External Power Adapter 24 V/ 2.2A Communication Standard RS232 signal levels Ripple 50mVp-p or less Dielectric strength 500VDC for 1 minute Dimension (L*W*H) 210*62*65 MM Weight Approx. 1.5 kg Manual, single direction Ordering Information HCC206-44 Dual track (track I & II) MSR encoder HCC206-55 Dual track (track II & III) MSR encoder HCC206-66 Triple track (track 1, II, & III) MSR encoder Interconnection Cable 5 feet, DB9 Pin Assignment Pin 1 Shield Pin 2 TXD (HCC206 data transmit) Pin 3 RXD (HCC206 data receive) Pin 5 Circuit ground Default 9600 baud, 8 bit/character, no parity, 1 stop bit Environmental Operation 0° to 50° C, 15 to 85% humidity Storage 30° to 70° C, 10 to 90% humidity Read Card Track 1 Track 2 Track 3 Bit density 210 bpi 75/210 bpi 210 bpi Coercive force Read/Write 300-4000 O e Mag.

card Coercive force 0.76 - 1.2 mm Performance Write speed 5~30ips Write jitter Interval < +/-10%, Sub-interval < +/-12% Head life Min. 500K swipes for both read/write head Auto ID Products Our Factory-Auto ID Category-Auto ID Certificates-Auto ID
