Door Exit Push Button Release Switch Opener NO COM NC LED light For Door Access Control System Entry Open Touch(K1Button)

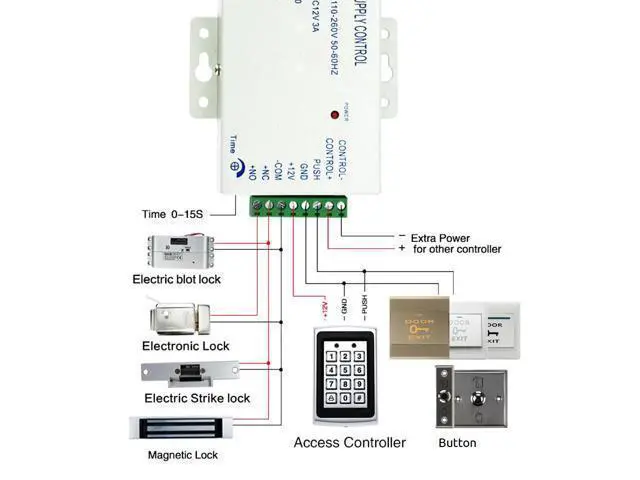

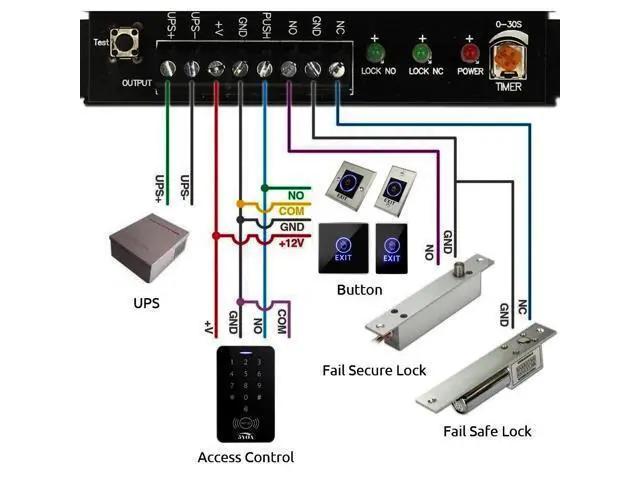

How the Exit Push button works? When the button is pressed, the inner contactes are combined, forming circuirt connected, causing the power controller to be short-circuited, thereby driving the electric lock to unlock. after releasing the button, the power supply is energized during the set time to achieve the entire door opening and closing process K9Button High End
Button Output Contact: NO NC
COM Current Rating: DC 12-36V / 3A
Mechanical Life: 500000 tested
Panel Material: Hard

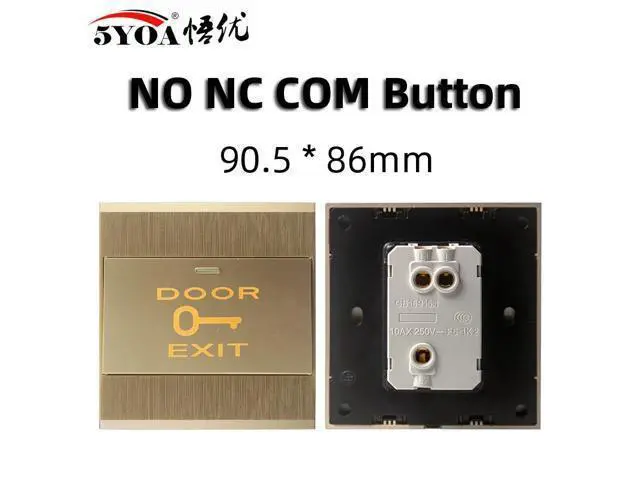

Plastic Size: 90.5 *86*30mm(Approx. )
Weight: 125g K1 K2 LED Light Infrared Touch Exit Button LED Light Infrared Touch Exit Button NO/NC/CM Push Button Switch For Access Control This Exit Button is made of durable and high material. An alternative to traditional switch, these switches are suitable for doors where access control is essential, and to help simplify key control. You can install it by yourself without any difficulties. Do not hesitate, this device will never let you down. Specification of this switch No touch / Touch free Exit Sensor (Diffused Detection) Optical / Infrared Technology IP-55 Ingress Protection / SUS 304 Stainless steel Plate User friendly (Healthy protection) Free from contagious diseases spread
Detection range: 0.1 ~ 10 cm
Application: Gate/Door/Exit/Automation control High capacity of relay dry contact (3A/AC120V, DC30V) Normally open/Normally close/Common relay output Twin led indicators for sensor standby or approached: (1)
Sensor Standby: BLUE LED ON (2) Visitors whom approached to the sensor in 10 cm: RED
LED ON Input: DC12V
Contact Rating: 12-30V, 3A
Output Contact: NO/NC/COM
Mechanical Life: 500000 tests
Operating temp: -20~+55(14-131F)
Suitable Humidity: 0-95% (relative humidity)
LED Indicator: White
LED indicator: Power
OFF Blue LED indicator: Power ON (standby)
Red LED indicator: Power ON (sensation)
Weight: 108g / 120g
Square Type: 86x86x29mm

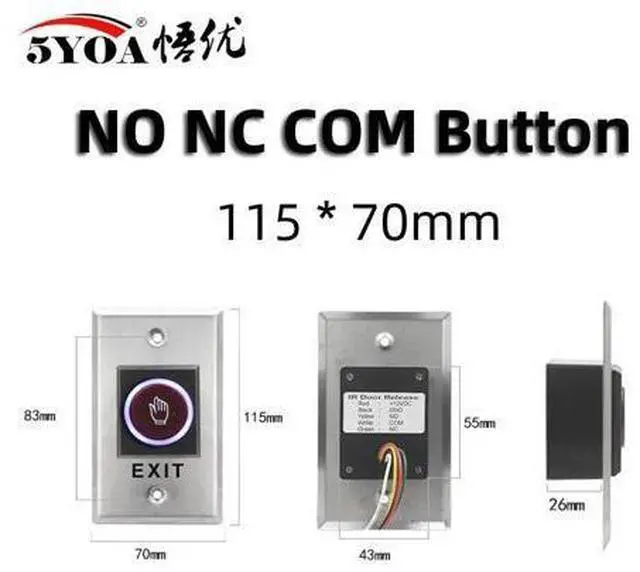

Rectangle Type: 115x70x29mm TB01 Touch High End Button Single Contact to exit Long mechanical life more than 500000 times Square brevity design
Product Reference: ACA-EB-TB1-SQ
Power Input: DC 12V
Suitable Humidity: Less than 95%
Output Contact: NO / NC /
COM Operating Temperature: -20C ~ 55C

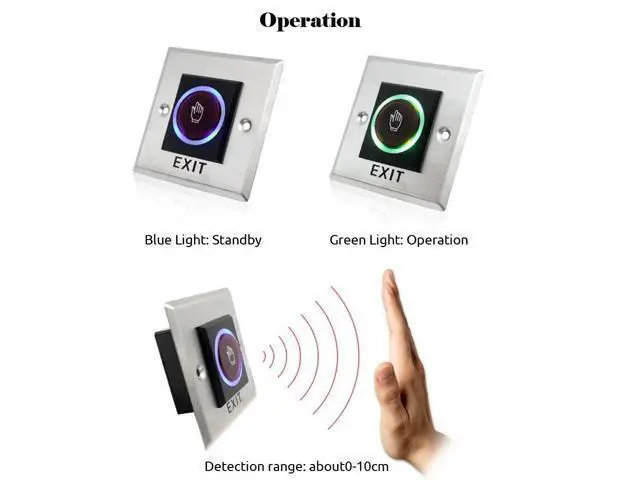

LED Indicator:
Blue: Standby
Green: Triggered
Dimensions: Square
Type: approx. 86 (W) x 86 (H) x 21 (D) mm approx. 3.4 (W) x 3.4 (H) x 0.8 (D) inch

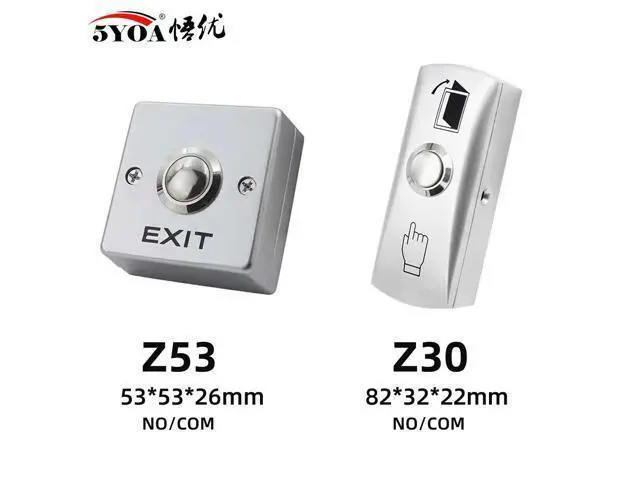

Rectangle Type: approx. 86 (W) x 56 (H) x 21 (D) mm approx. 3.4 (W) x 2.2 (H) x 0.8 (D) inch Door Exit Release Button Zinc Alloy
Panel Specification:
1. Input DC12V
2. Contact Rating 3A 36VDC Max
3. Output Contact NO\COM
4. Mechanical Life 500000 tests
6. Suitable for Door All Kinds Doors
7. Operating temp -20~+55 degree(14-131F)
8. Suitable Humidity 0-95% (relative humidity)
