Question 1

Does the board include or support an external button or OSD keypad or joystick?

Accepted Answer

Hi,

The board uses a built-in scroll wheel for menu and OSD control. It does not support an external button, OSD keypad, or joystick.

Thank you for your understanding.

Question 2

Also how are brightness, volume, input selection, HDR, and other OSD settings controlled?

Accepted Answer

Hi,

The brightness, volume, input selection, HDR, and other OSD settings are controlled by buttons.

Thank you.

Question 3

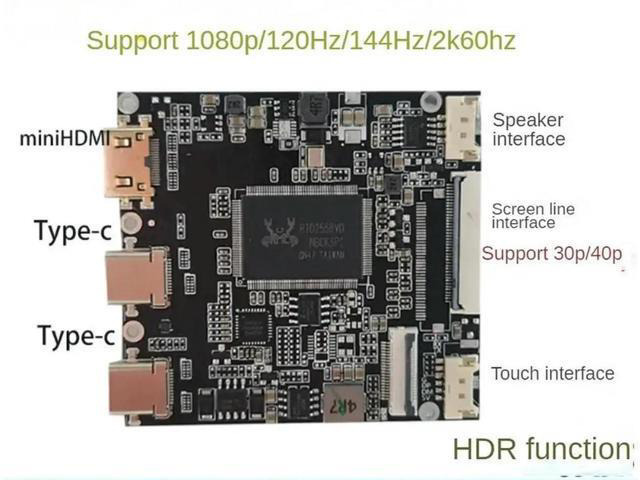

So I want to use this board with an AUO B156HAN08.4, 1920×1080 144Hz, 40-pin eDP laptop LCD. Is this exact panel supported at 144Hz, and that the board includes the correct 40-pin eDP cable or firmware? Also, does the USB-C support DisplayPort Alt Mode video + power, and is 144Hz available over both USB-C and mini-HDMI? Thanks.

Accepted Answer

Hi,

Thank you for your questions.

Unfortunately, this board is not compatible with the AUO B156HAN08.4 1920×1080 144Hz panel at 144Hz, so we cannot guarantee 144Hz operation with this exact panel. We also cannot guarantee that the included 40-pin eDP cable or firmware is specifically compatible with this panel.

In addition, the USB-C port does not support DisplayPort Alt Mode video output or power delivery. Therefore, video and power cannot be transmitted through USB-C.

As for 144Hz output, it is not supported through USB-C, and we cannot guarantee 144Hz output through the mini-HDMI port with the AUO B156HAN08.4 panel.

Sorry for the inconvenience, and thank you for your understanding.
