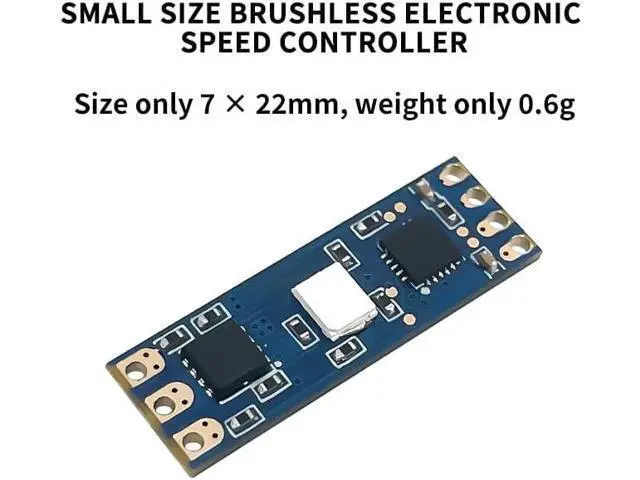

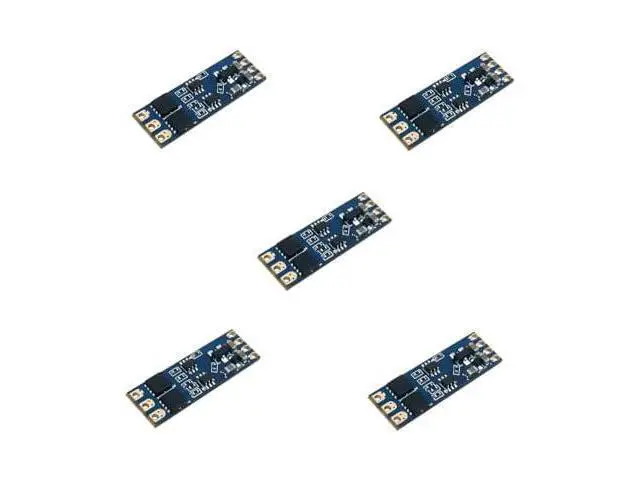

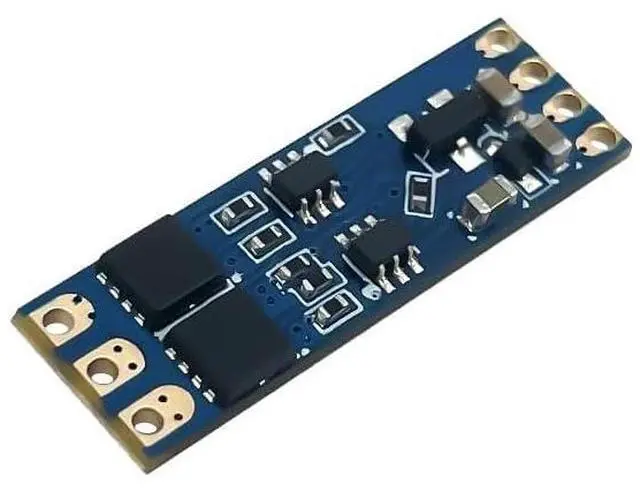

HLK-DL03 Micro Brushless ESC Motor Governor Module 8A Motor Drive ESC Board for 1104 1106 1306 Brushless Motor (5Pcs)
Limited time offer, ends 07/12 By EmpressTech
- Brand JMT; Model Name DL03; Number of Items 1; Manufacturer JMT
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

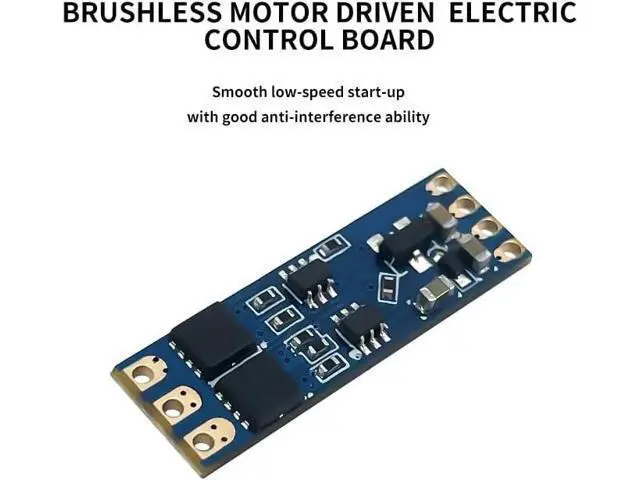

HLK-DL03 can adjust the motor speed according to the control signal, with the characteristics of compact size, good stability, smooth low start, etc.
Output capacity: continuous current 8A (depending on the actual load power)
Power Input: 12Vdc (5-16Vdc/2-3 lithium battery packs).
Control Signal: PWM.
Signal pulse width: 0.9 mS ~ 2mS.
Dimensions: 7x 22.4 x 2.7 mm It is strongly recommended to connect capacitors and diodes in parallel between the positive and negative poles to protect the other components of the ESC! 2s power supply must be connected in parallel capacitors! Be sure to add heat dissipation when using, especially after connecting 2A ~ 3A! ESC only has signal input pin, without BEC 5V power supply voltage output, standard PWM signal drive for common model receivers, can be driven by ESC tester. ESC is suitable for 1104, 1106 or 1306 and other small brushless motors, the actual use needs to be tested.
Output capacity: continuous current 8A (depending on the actual load power)
Power Input: 12Vdc (5-16Vdc/2-3 lithium battery packs).
Control Signal: PWM.
Signal pulse width: 0.9 mS ~ 2mS.
Dimensions: 7x 22.4 x 2.7 mm It is strongly recommended to connect capacitors and diodes in parallel between the positive and negative poles to protect the other components of the ESC! 2s power supply must be connected in parallel capacitors! Be sure to add heat dissipation when using, especially after connecting 2A ~ 3A! ESC only has signal input pin, without BEC 5V power supply voltage output, standard PWM signal drive for common model receivers, can be driven by ESC tester. ESC is suitable for 1104, 1106 or 1306 and other small brushless motors, the actual use needs to be tested.
