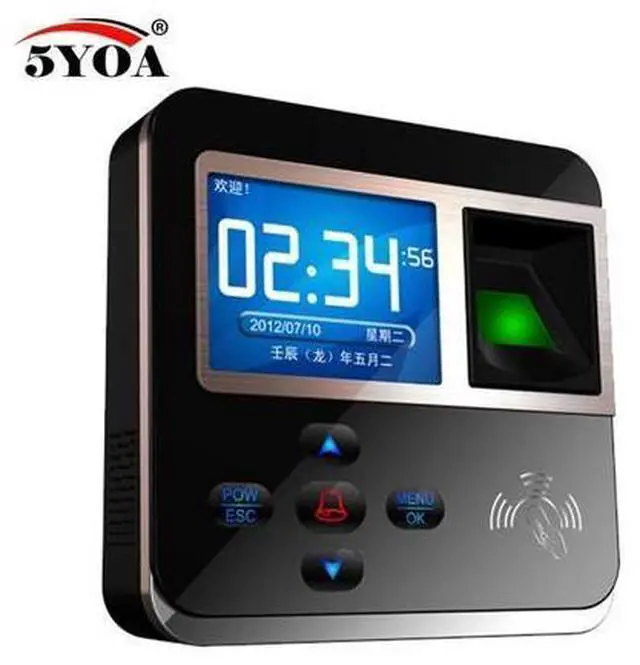

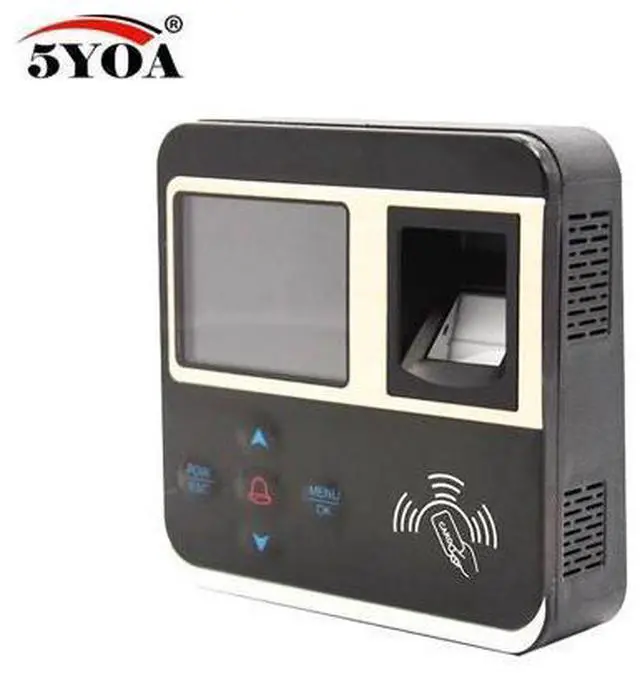

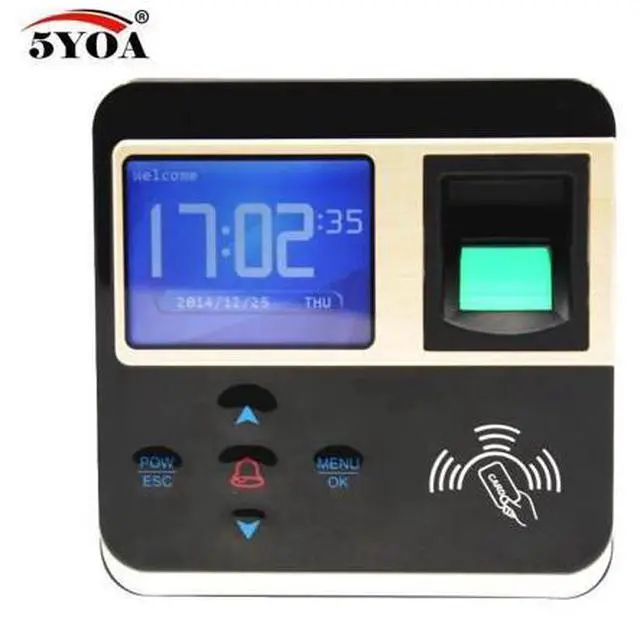

5YBF211A Fingerprint Password Key Lock Access Control Machine Biometric electronic door lock RFID reader scanner system

Features: 5YBF211A is an innovative biometric fingerprint reader for Access control and Time attendance solution. Small and simple design to ensure your safe access control solution. Support network connection via LAN and WAN network. (For example, you can connect your software from USA to the device in Germany) 5YBF211A supports connecting to the external timing bell. Support push technology (UDP) for attendance records. With free software in the CD.
Specification:
Model: 5YBF211A (fingerprint TA & AC reader)
LCD Screen: 2.4 inch TFT (320*240) color screen
Fingerprint Sensor: Optical sensor (500DP)
CPU: ARM926EJ CPU, Running
Frequency: 0-200MHZ
Software OS: XP / Win2003 / Vista / Win7 / Win8 (support both 32bit / 64bit)
Fingerprint Capacit: 800
Records Capacity: 50, 000
Operating Mode: Off-line /
On-line Authentication Method: Fingerprint / RFID Card (125Khz, EM4100)
Communication: TCP/ IP, RS485, USB
Memory Disk Language: Chinese / English / Spanish / Arabic / German (could customize others), normally send with English version
Bell: Built-in timing bell (can connect to external timing bell) Access
Control Interface: Wiegand 26/34, Door Lock, Siren, Exit Button (1 group), Door Bell, Door
Sensor Professional Access Function: Open door by multilevel verification, anti-pass back
Power Supply: 12VDC / 2A
Operating environment: Operating
Temp: 0C-45C, Humidity: 20%-80%
Dimensions (L*W*H): 103mm103mm31mm

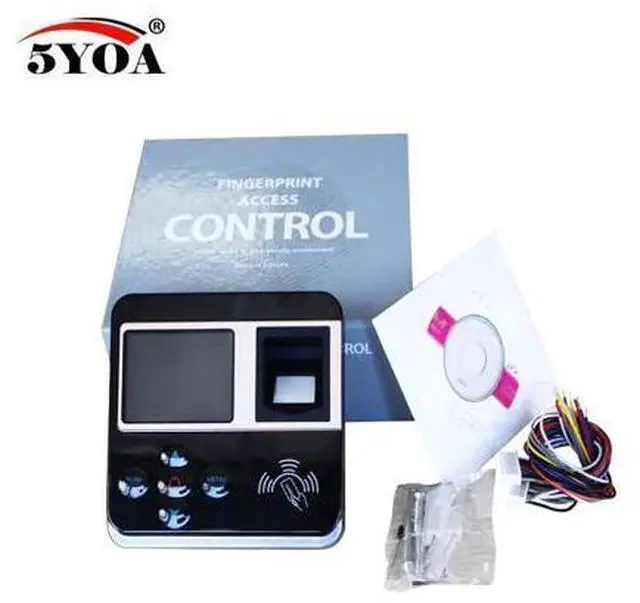

Product include: 1x Fingerprint Terminal 2xCables 1xPack of Screws 1xInstallation Manual 1xCD
