Usr-Tcp232-410S RS232 / RS485 Serial to Ethernet Adapter/IP Device Server Ethernet Converter Support DHCP/DNS (10)
Limited time offer, ends 06/28 By EmpressTech
- Brand PUSR; Hardware Interface Ethernet; Color Server +Terminal part; Compatible Devices Desktop; Data Link Protocol Ethernet; Number of Items 1; Manufacturer PUSR
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

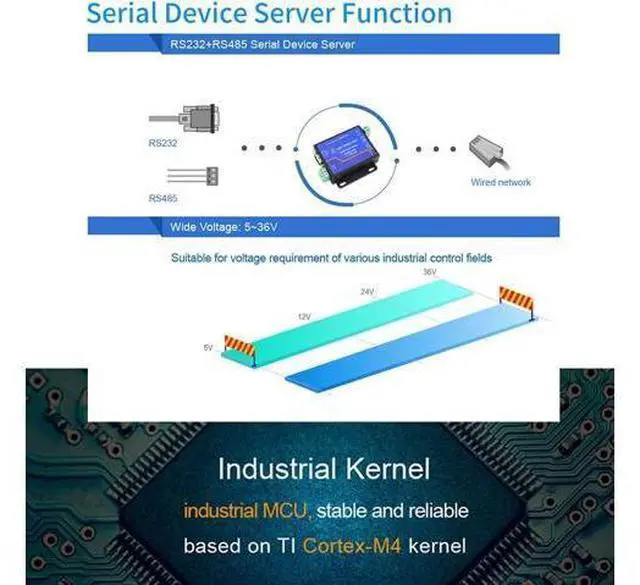

Dual Serial Device Server:
Cpu: Cort ex-M4 120Mhz, Serial RS485 & RS232 to Ethernet Server, 2

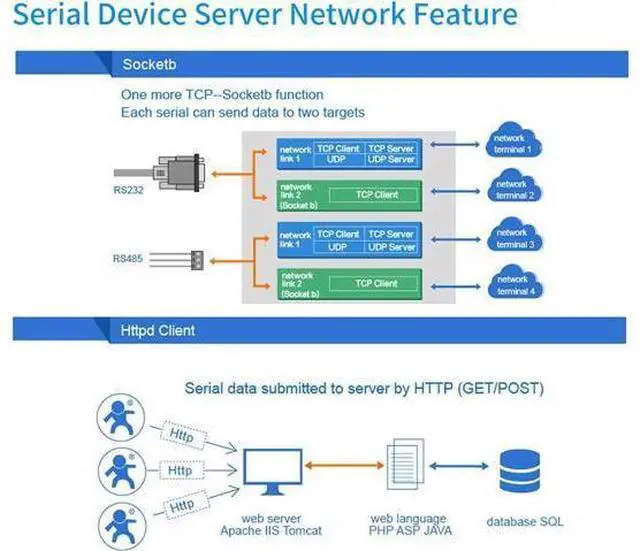

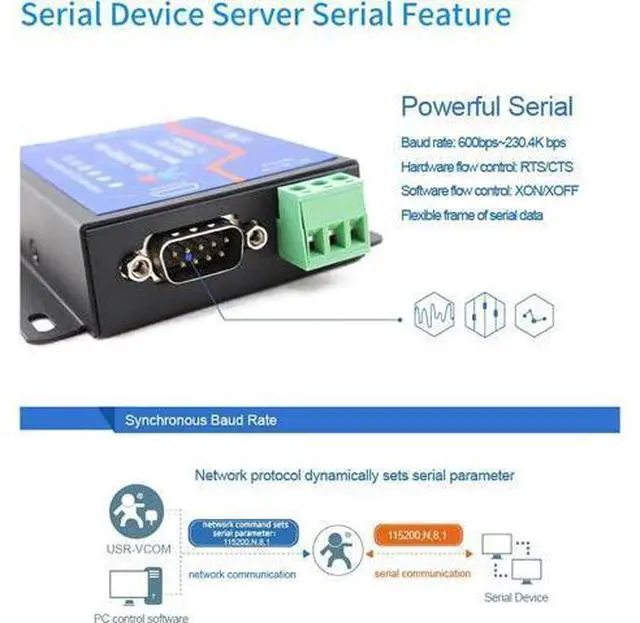

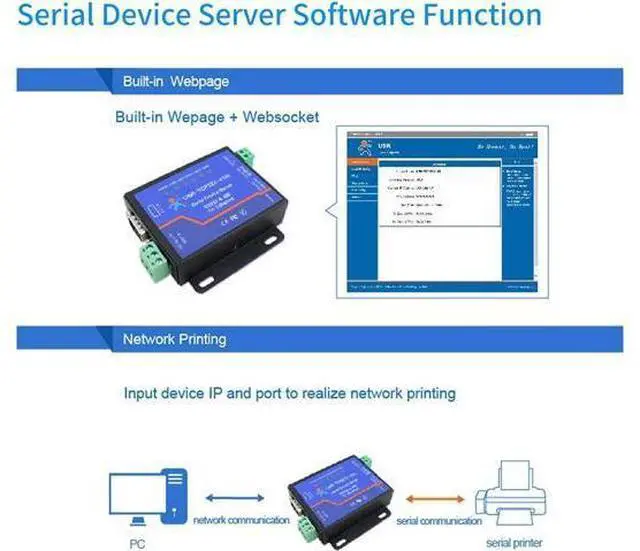

Serial Ports: 1 Port is RS232, 1 Port is RS485, 1 RJ45 Ethernet Port. Support RS232 & RS485 Working at The Same Time. Configure Via Web Browser or Virtual Com Software
Interface;
Working Temperature: -40 ~ 85°C,
Power Consumption: < 1W. USR-TCP232-410s can collected data in Modbus RTU, Modbus TCP protocol and reporting data to IoT cloud in JSON format using MQTT or TCP/UDP/HTTP protocol. It supports up to 128 data points, and can decode and compute the collected data to reduce servers pressure.
Modbus Gateway: Connect to PLC, SCADA system or users private server to achieve local or remote motoring. Modbus RTU to Modbus TCP and Multi-Host Modbus Polling.
Data Dransmission Encryption: Supports SSL/TLS encryption in TCP client, HTTP client and MQTT operation modes. Supports two-way certificates authentication.
Cpu: Cort ex-M4 120Mhz, Serial RS485 & RS232 to Ethernet Server, 2
Serial Ports: 1 Port is RS232, 1 Port is RS485, 1 RJ45 Ethernet Port. Support RS232 & RS485 Working at The Same Time. Configure Via Web Browser or Virtual Com Software
Interface;
Working Temperature: -40 ~ 85°C,
Power Consumption: < 1W. USR-TCP232-410s can collected data in Modbus RTU, Modbus TCP protocol and reporting data to IoT cloud in JSON format using MQTT or TCP/UDP/HTTP protocol. It supports up to 128 data points, and can decode and compute the collected data to reduce servers pressure.
Modbus Gateway: Connect to PLC, SCADA system or users private server to achieve local or remote motoring. Modbus RTU to Modbus TCP and Multi-Host Modbus Polling.
Data Dransmission Encryption: Supports SSL/TLS encryption in TCP client, HTTP client and MQTT operation modes. Supports two-way certificates authentication.
