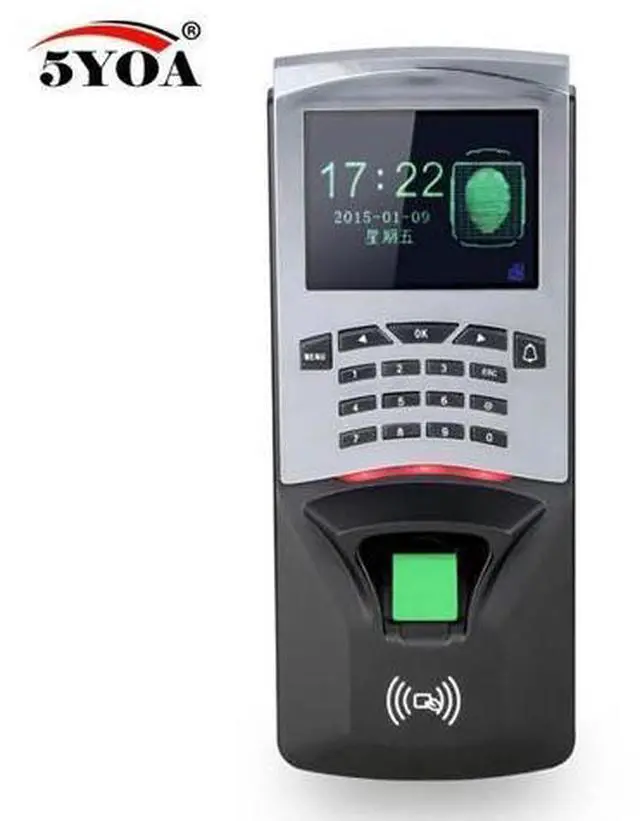

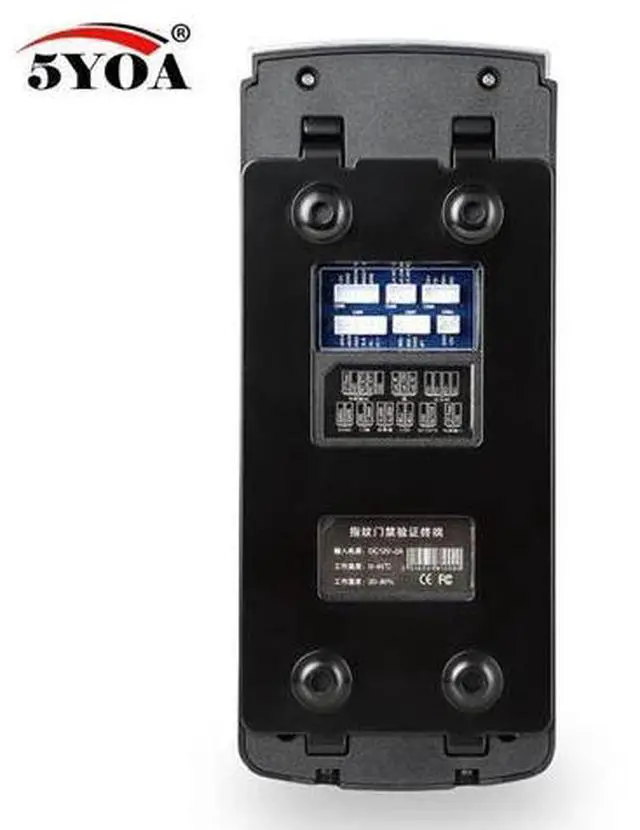

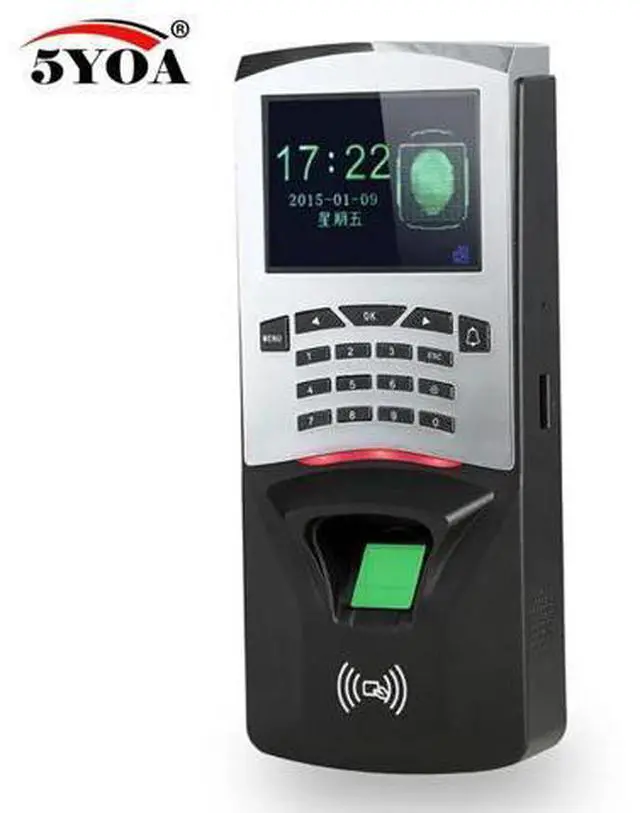

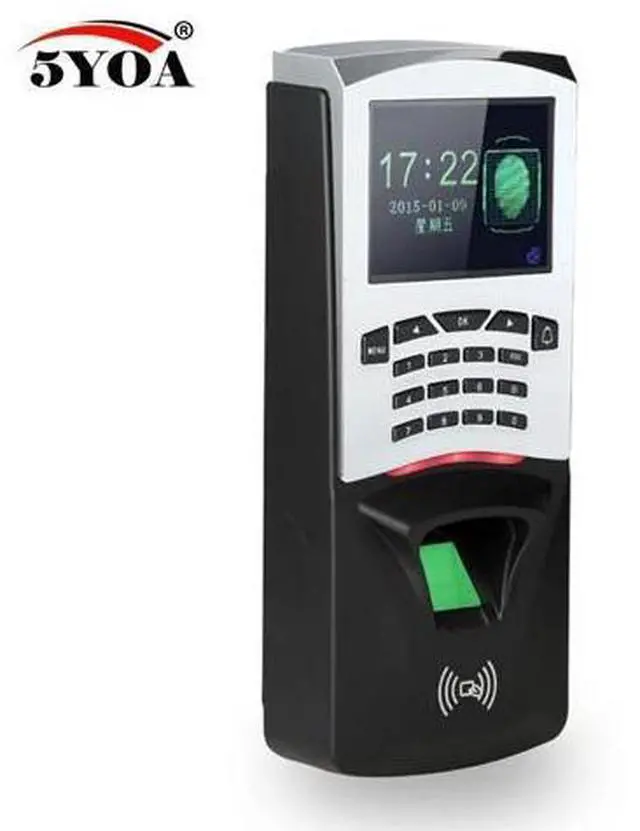

BM7 Fingerprint Password Key Lock Access Control Machine Biometric electronic door lock RFID reader scanner system Intercom

BM& Fingerprint Access Control 5YBM7 is a universal type fingerprint access control device which is aimed at the work environment. It is used international fingerprint, which is enlarge the identification ability when the environment and climate changed, and the hurt finger and decrustation It is used RS485 and TCP/IP and USB to realize the multiple machines to link the network at the same time. The inside RFID card reader and the outside fingerprint scanner make card, fingerprint and password arbitrary combination become true. The software is very easy to operate, available to work with other 5YOA terminal, the function is very comprehensive.

Benefits: One fingerprint develop the whole world Adopt high reliable industrial component parts and optical sensor, watchdog monitor to avoid unit hang, unique reset key keeps the unit well work Easy to install all the cable connection EM lock installation
One-way alarm output: dismantlement alarm, threaten alarm, unlock illegally alarm, not block alarm Technical

Specifications

User capacity: 1, 000
Card capacity: 1, 000
Transaction capacity: 100, 000
Verification mode: 1:1
or 1: N
Access Control: 50 Time Zone, 5 Grouping, 10 Combination, Holiday Management, support many fingerprints access, support standalone work
Electric lock control: Directness relay out put 3A/12VDC
Communicational: TCP/IP or RS485 or USB flash drive or
USB Alarm function: Intimidation alarm, tamper alarm, forced door-opening alarm, door-opening overtime alarm, entrance point alarm
Keyboard and Display: LCD with 80 character and figure keypad, 2.8 '
Color Screen Power: 9-24 VDC, stay
current: 50MA, work
current: 400
MA Identification speed: <= 0.5 seconds
FRR: <= 0.01 %
FAR: <= 0.0001 %
Collection station: 5YOA collection station
Temperature operating: 0C - 45C
Humidity operating: 20%-80%
Language: English, other
Languages Size: 180 (L) *82 (W) *55 (H) mm
Management software: Transaction fingerprint management and Access control attendance options, and network management
Standard: Wire Doorbell, Wiegand
Out Optional: Webserver, Workcode, RIS, Multi-identification, 9 Digits User ID, Schedule Status, T&A Records. One way 5V relay output One way magnetic door input(opto-isolator) One way WG26/34 output One way alarm signal output Reset button
