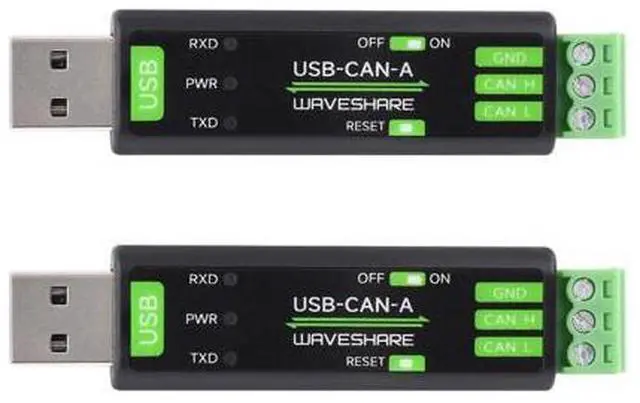

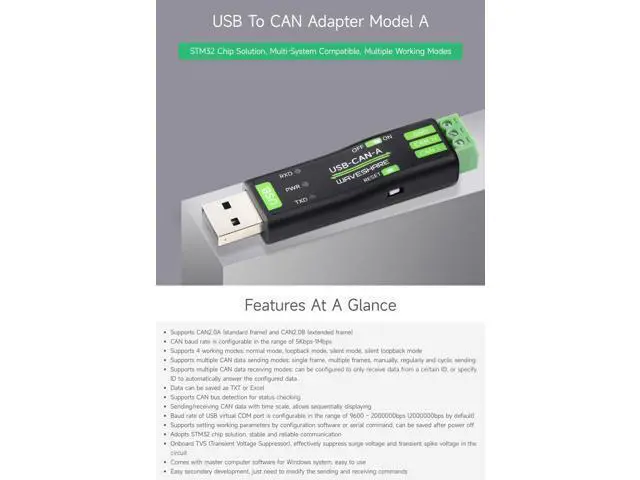

2PCS Waveshare USB to CAN Adapter Model A, STM32 Chip Solution, Multiple Working Modes, Multi-System Compatible
- 2PCS Version, Provide online user manual, please check the manual carefully before using!

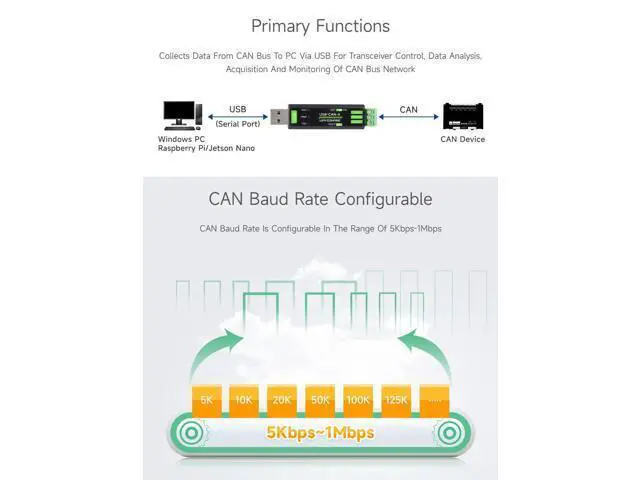

- Supports CAN2.0A (standard frame) and CAN2.0B (extended frame). CAN baud rate is configurable in the range of 5Kbps-1Mbps. Supports 4 working modes: normal mode, loopback mode, silent mode, silent loopback mode. Supports multiple CAN data sending modes: single frame, multiple frames, manually, regularly and cyclic sending
- Supports multiple CAN data receiving modes: can be configured to only receive data from a certain ID, or specify ID to automatically answer the configured data. Data can be saved as TXT or Excel. Supports CAN bus detection for status checking. Sending/receiving CAN data with time scale, allows sequentially displaying
- Baud rate of USB virtual COM port is configurable in the range of 9600 ~ 2000000bps (2000000bps by default). Supports setting working parameters by configuration software or serial command, can be saved after power off. Adopts STM32 chip solution,
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
2PCS Version, Provide online user manual, please check the manual carefully before using!. Supports CAN 2.0A (standard frame) and CAN 2.0B (extended frame). CAN baud rate is configurable in the range of 5Kbps-1Mbps.
Supports 4 working modes: normal mode, loopback mode, silent mode, silent loopback mode. Supports multiple
CAN data sending modes: single frame, multiple frames, manually, regularly and cyclic sending. Supports multiple
CAN data receiving modes: can be configured to only receive data from a certain ID, or specify ID to automatically answer the configured data. Data can be saved as TXT or Excel. Supports CAN bus detection for status checking. Sending/receiving CAN data with time scale, allows sequentially displaying. Baud rate of USB virtual COM port is configurable in the range of 9600 ~ 2000000bps (2000000bps by default). Supports setting working parameters by configuration software or serial command, can be saved after power off. Adopts STM32 chip solution,
Supports 4 working modes: normal mode, loopback mode, silent mode, silent loopback mode. Supports multiple
CAN data sending modes: single frame, multiple frames, manually, regularly and cyclic sending. Supports multiple
CAN data receiving modes: can be configured to only receive data from a certain ID, or specify ID to automatically answer the configured data. Data can be saved as TXT or Excel. Supports CAN bus detection for status checking. Sending/receiving CAN data with time scale, allows sequentially displaying. Baud rate of USB virtual COM port is configurable in the range of 9600 ~ 2000000bps (2000000bps by default). Supports setting working parameters by configuration software or serial command, can be saved after power off. Adopts STM32 chip solution,
