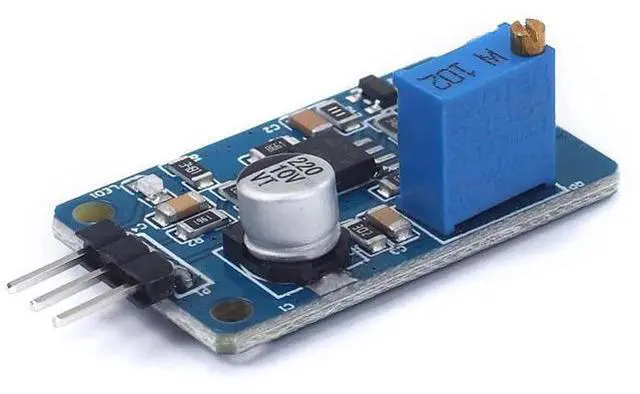

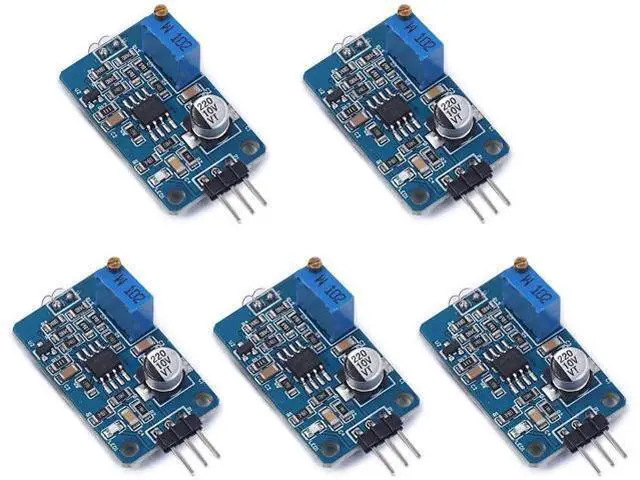

Strain Gauge Bending Sensor Module Y3 Weighing Amplifier Module Send Program Information 5pcs
Limited time offer, ends 08/03 By Lumitek
- Voltage :5V
- Resistance value :350 ohms
- Secondary pipe reverse protection ~(To prevent the power supply from being connected in reverse)
- The board is equipped with a blue LED power indicator light
- Analog output
- Response :2%
- Output analog voltage: 0-3.5V
- Sensitivity coefficient :2.0
- The greater the curvature, the higher the output voltage

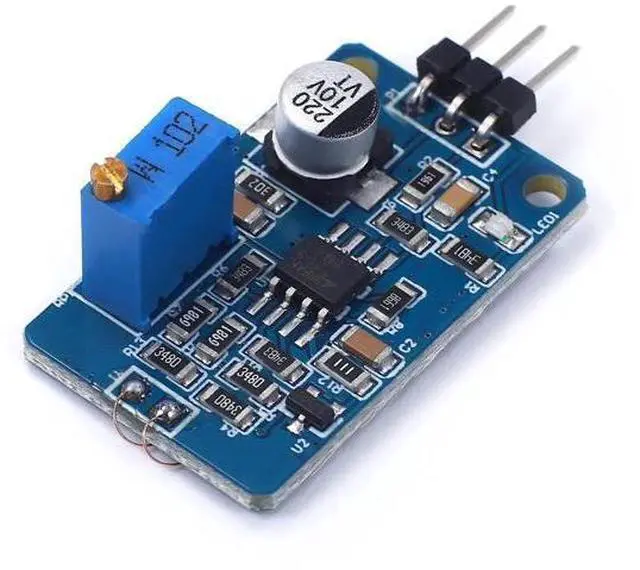

- It is equipped with a zero adjustment potentiometer
- The output starting voltage can be adjusted by a potentiometer
- Bending Angle: 0-30 degrees
- Three pins:VCC: Positive terminal DC5V
- GND: Negative terminal
- OUT: Analog output (linear output)
- Measurement range: Output analog voltage 0-5V
- Strain gauge bending Angle :0-30 degrees (Note: Do not bend excessively, as it may cause damage)
- Sensitivity coefficient :2.0mV/ ± V1%
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Voltage: 5V.
Resistance value: 350 ohms. Secondary pipe reverse protection ~ (To prevent the power supply from being connected in reverse). The board is equipped with a blue LED power indicator light. Analog output.
Response: 2%.
Output analog voltage: 0- 3.5V.
Sensitivity coefficient: 2.0. The greater the curvature, the higher the output voltage. It is equipped with a zero adjustment potentiometer. The output starting voltage can be adjusted by a potentiometer.
Bending Angle: 0-30 degrees.

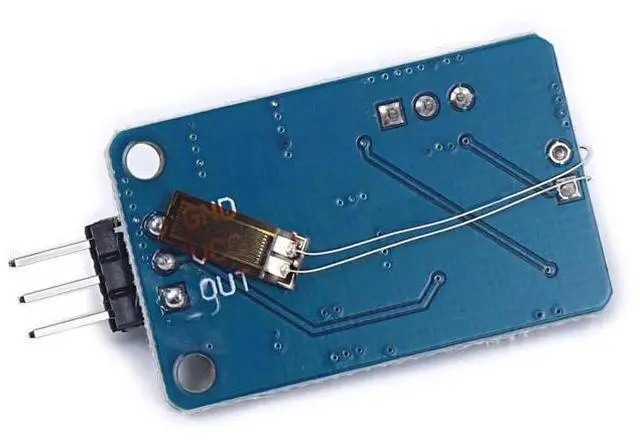

Three pins:
VCC: Positive terminal DC5V.
GND: Negative terminal.
OUT: Analog output (linear output).
Measurement range: Output analog voltage 0-5V.
Strain gauge bending Angle: 0-30
degrees (Note: Do not bend excessively, as it may cause damage).
Sensitivity coefficient: 2.0 mV/ ± V1%
Resistance value: 350 ohms. Secondary pipe reverse protection ~ (To prevent the power supply from being connected in reverse). The board is equipped with a blue LED power indicator light. Analog output.
Response: 2%.
Output analog voltage: 0- 3.5V.
Sensitivity coefficient: 2.0. The greater the curvature, the higher the output voltage. It is equipped with a zero adjustment potentiometer. The output starting voltage can be adjusted by a potentiometer.
Bending Angle: 0-30 degrees.
Three pins:
VCC: Positive terminal DC5V.
GND: Negative terminal.
OUT: Analog output (linear output).
Measurement range: Output analog voltage 0-5V.
Strain gauge bending Angle: 0-30
degrees (Note: Do not bend excessively, as it may cause damage).
Sensitivity coefficient: 2.0 mV/ ± V1%
