VoltSync PH44PRO Dual-Sided 4* M.2 M-Key NVME to PCIe X16 Splitter Card 4 * 32Gbps 2U Server RAID Array Expansion Adapter Support 2242 2260 2280 22110 SSD

Product Description PH44PRO Dual-sided 4* M. 2 M-key NVME to PCIe X16 Splitter Card 4*32Gbps 2U Server RAID Array Expansion Adapter Support 2242 2260 2280 22110

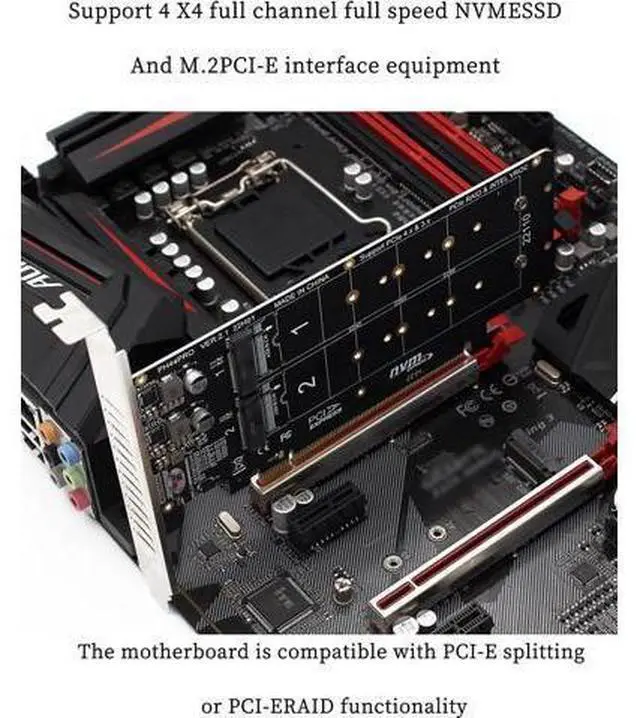

SSD Note: This product can run 4 NVME at the same time, but only if the motherboard supports PCIE signal split motherboard or PCI-E RAID function.

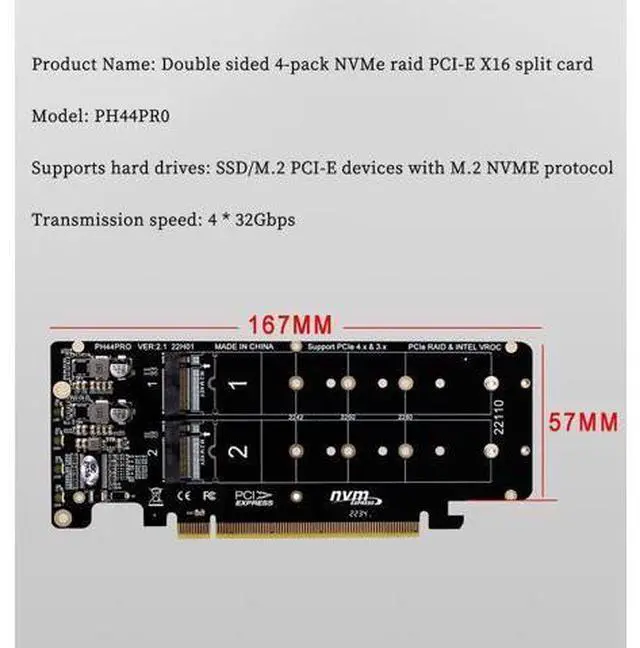

Parameters Name: Double-sided 4-disk NVME raid PCI-E X16 splitter card
Model: PH44PRO
Support hard disk: M. 2NVME protocol SSD/M.
2PCI-E devices Transfer speed: 4*32Gbps
Packing size: 213*125*34MM
Product weight: 134.8G

Details

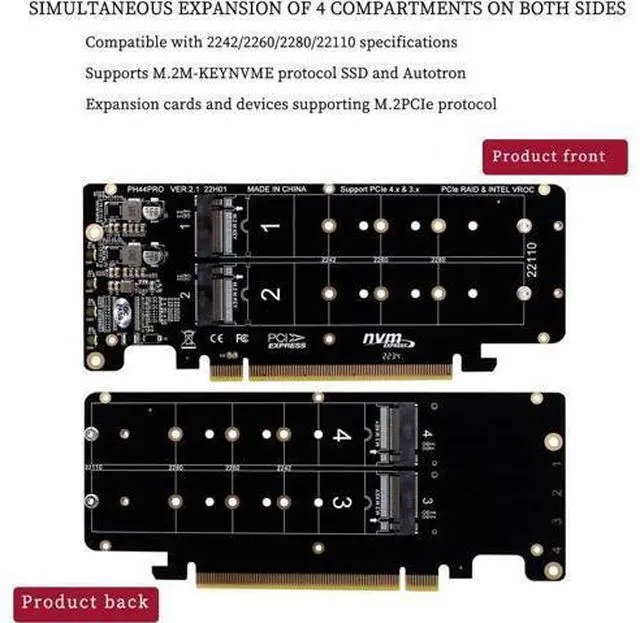

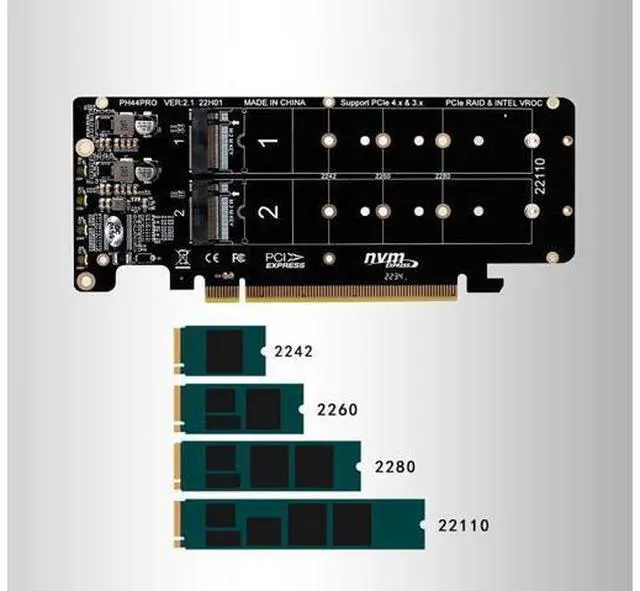

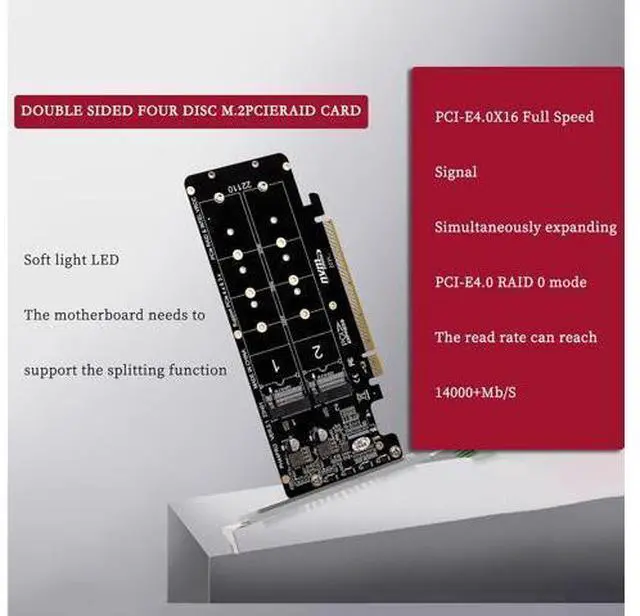

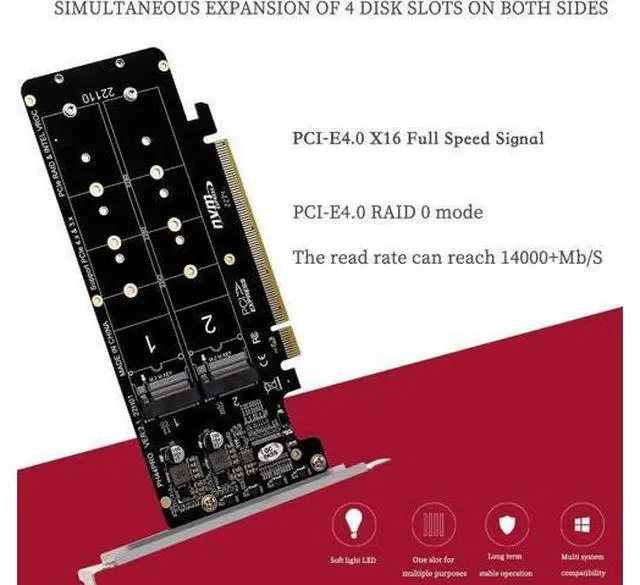

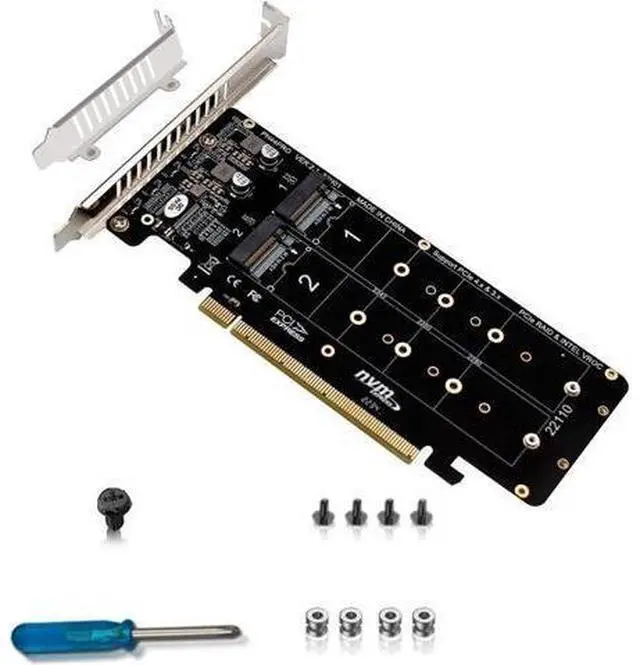

Dual Sided Quad Disk M. 2 PCIe RAID Card PCI-E 4.0 X16 Full Speed Signal Simultaneous Expansion PCI-E 4.0 RAID 0 mode, read rate up to 14000+Mb/S Simultaneous expansion of 4 disks on both sides Compatible with 2242 2260 2280 22110 Supports 4 X4 full-channel full-speed M. 2 M-KEY NVME protocol SSDs Supports M. 2 PCle protocol expansion cards and devices Equipped with full-height & half-height baffle Support 2U server small chassis installation Soft LED indicator Green light on when the disk is plugged in and powered on, green light blinks when reading and writing. High-end PCB circuit board with gold-plated surface, good conductivity, strong wear resistance, anti-oxidation and high fire rating.
