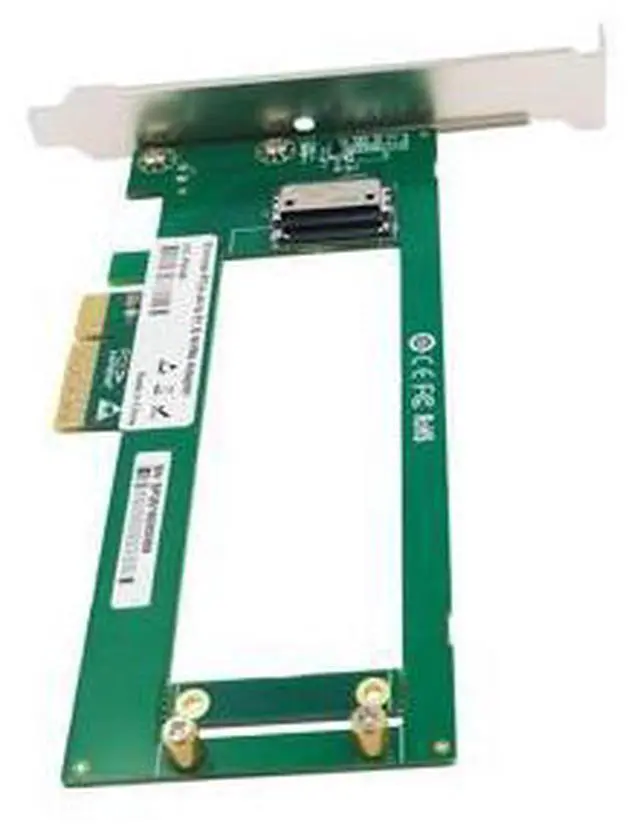

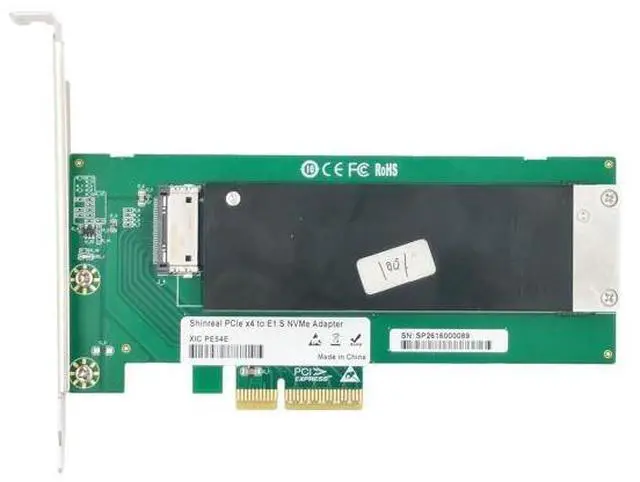

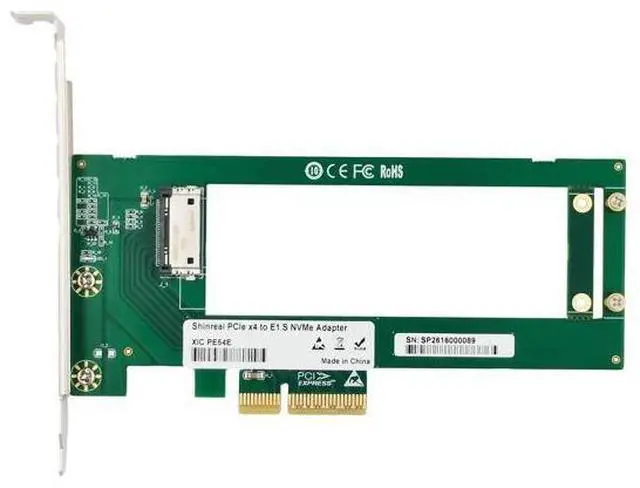

VoltSync PCI-E4.0 4X Host Adapter to NVMe Ruler 1U GEN-Z EDSFF 5.9mm 9.5mm Thickness Short SSD E1.S Carrier Adapter

This converter enables the connection of a GEN-Z SSD in E1.S. Fit for 5.9mm & 9.5mm SSD without heat sink
The converter can be installed into your system internally through the PCI-E 4X interface.
Thus an EDSFF E1.S SSD becomes an PCI-E SSD, which can be used in IoT, data center and server area
Compliant with PCI Express 4.0. No driver installation is required. Most of the latest operating systems support PCIe-NVMe SSDs
Low profile and Regular size PCIe bracket on board.
EDSFF offers a dynamic range of form factors that have advantages vs the incumbent SSD form factors in capacity, scalability, performance, serviceability, manageability, thermal and power management.
EDSFF is a New SSD Form Factor for Next Gen Servers and Storage
The benefits include, but arent limited to, better signal integrity and the ability to deliver more power to an SSD for superior performance.
E1 form factor delivers better thermal dissipation versus M.2 form factors
E1 SSDs utilize the robust EDSFF connector, allowing for high data rates
E1 SSDs enable higher density storage and better thermal management in 1U chassis
E1 form factor allows for higher power delivery versus M.2.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Product Description PCI-E 4X Host Adapter to NVMe Ruler 1U GEN-Z EDSFF Short SSD E1. S Carrier Adapter EDSFF offers a dynamic range of form factors that have advantages vs the incumbent SSD form factors in capacity, scalability, performance, serviceability, manageability, thermal and power management. This converter enables the connection of a GEN-Z SSD in E1. S. Fit for 5.9 mm & 8.0 mm SSD without heat sink. The converter can be installed into your system internally through the PCI-E 4X interface. Thus an EDSFF E1. S SSD becomes an PCI-E SSD, which can be used in IoT, data center and server area.

Compliant with PCI Express 4.0. No driver installation is required. Most of the latest operating systems support PCIe-NVMe SSDs. Low profile and Regular size PCIe bracket on board.
ProductModel: XIC
PE44E ProductName: PCIe x4 to E1. SNV
Me SSD
Adapter Interface Type: 1*E1. S (Genz 1C)
Connectors Support Equipment: 1*E1. S NVMe SSD Host Bus Type: PCIe x4 XIC PE44E is an interface conversion card that converts PCIe x4 toGenz 1Cconnector for connecting E1. S. It supports E1. S SSDs of various thicknesses.
Features: Supports E1. SNV
Me SSDs. Supports E1. S SSDof various thicknesses. Support PCIe x4 data linkwidth. Compatiblewith PCIeGen4, andGen3 standards specification. PHYSICALCHARACTERISTICS ProductDimension 148mmx 68.9 mm ProductWeight 100g PACKAGINGINFORMATION Package size 180mmx 150mmx 30mm ShippingWeight 150g WHAT'SINTHEBOX Included in Package 1 * PCIe x4 to E1. SNV
Me SSD
Adapter 4 *M. 2 Fixed screw
