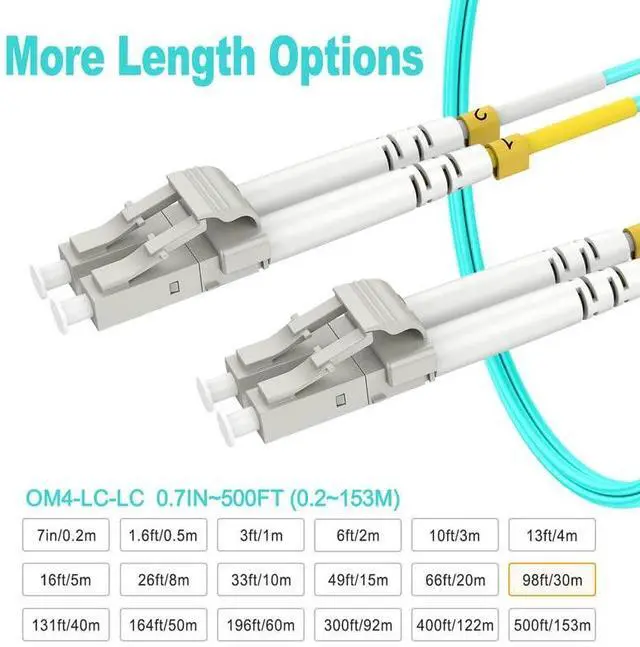

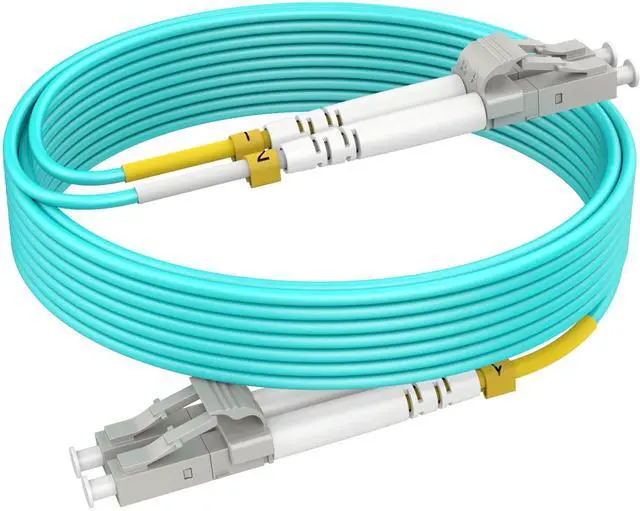

30m(100ft) OM4 LC LC Fiber Patch Cables MMF Multimode, Options 0.2m~153m, Fiber Optical Cable Duplex, 50/125m 40G/100G LSZH (10pack),

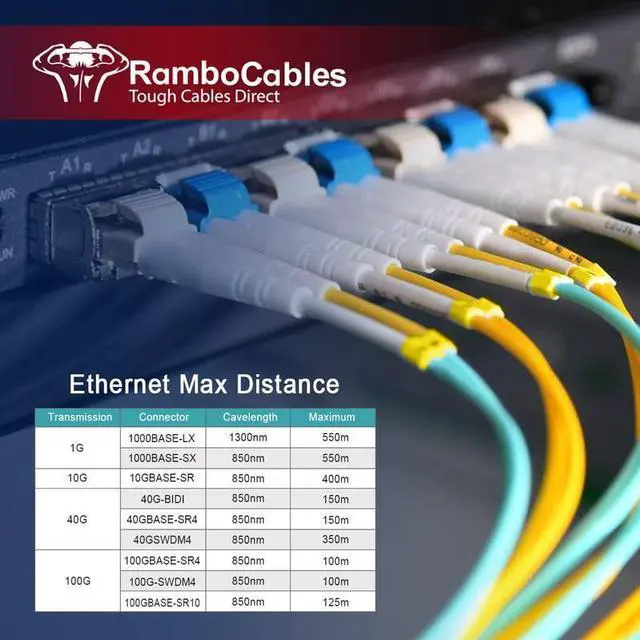

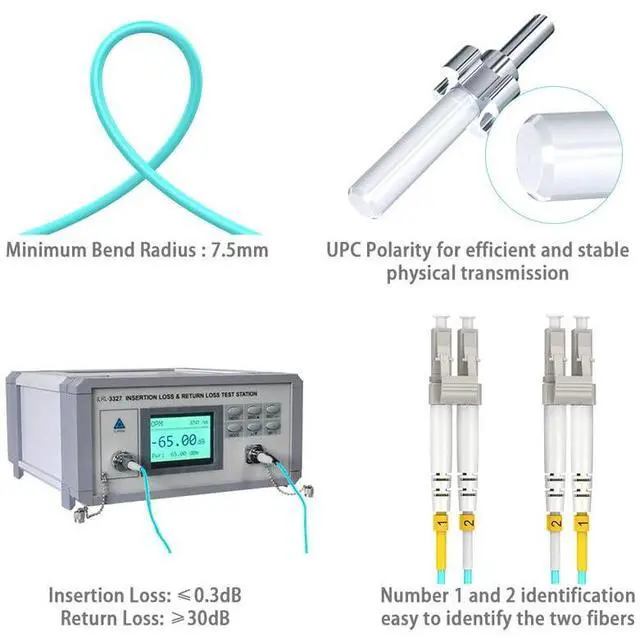

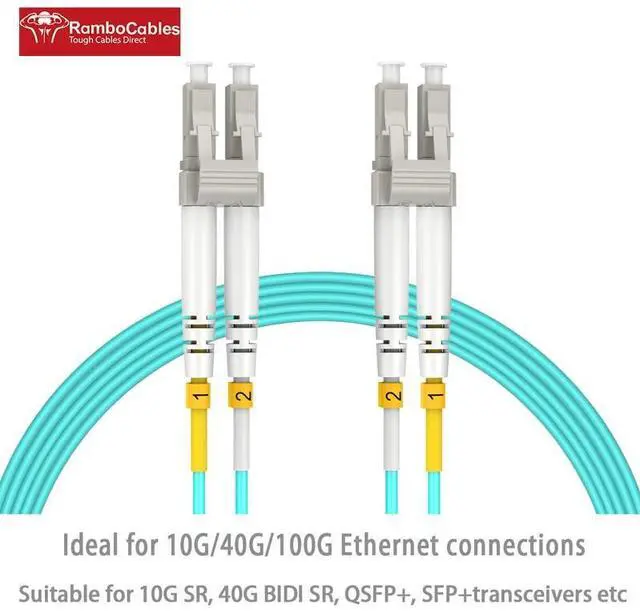

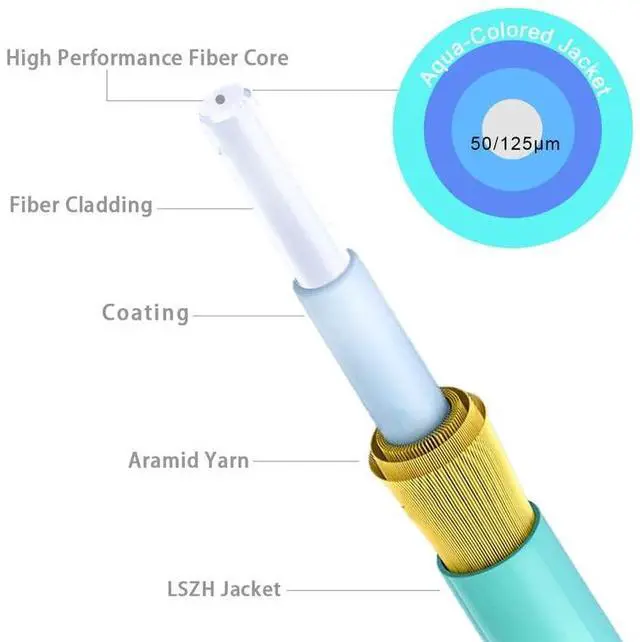

OM4 LC to LC multimode duplex fiber patch cable features a 50/125m high-rated fiber cladding, 850/1300nm wavelength, 2.0mm cable diameter, and an environmentally friendly LSZH jacket. It ensures a stable and efficient network. OM4 multimode fiber is the preferred specification for 40G Ethernet. This patch cord is designed for connecting 10G SR, 40G BIDI SR, QSFP+, and SFP+ transceivers, making it ideal for 10G/40G/100G Ethernet connections. It saves space in high-density cabling for data centers, enterprise networks, and telecom rooms. With a bandwidth of 4700 MHz·km @850nm, it supports transmission distances of 400 meters for 10GbE, 350 meters for 40GbE, and 125 meters for 100GbE at 850nm. It is constructed with an LSZH jacket, featuring Insertion Loss 0.3dB, Return Loss 30dB, and an operating temperature range of -20 to 70°C. The Zirconia Ceramic Ferrule ensures optimal IL and RL for stable signal transmission (in accordance with EIA/TIA 604-2, 100% inspected), with a bend radius of 7.5mm for smaller enclosures and smooth network performance.
